1200W, 100-240V 50/60Hz 15A, 80+ Gold, 120mm fan, 160x150x86mm, 1.92kg
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 550W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.8%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 550W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 550W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 550W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 550W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

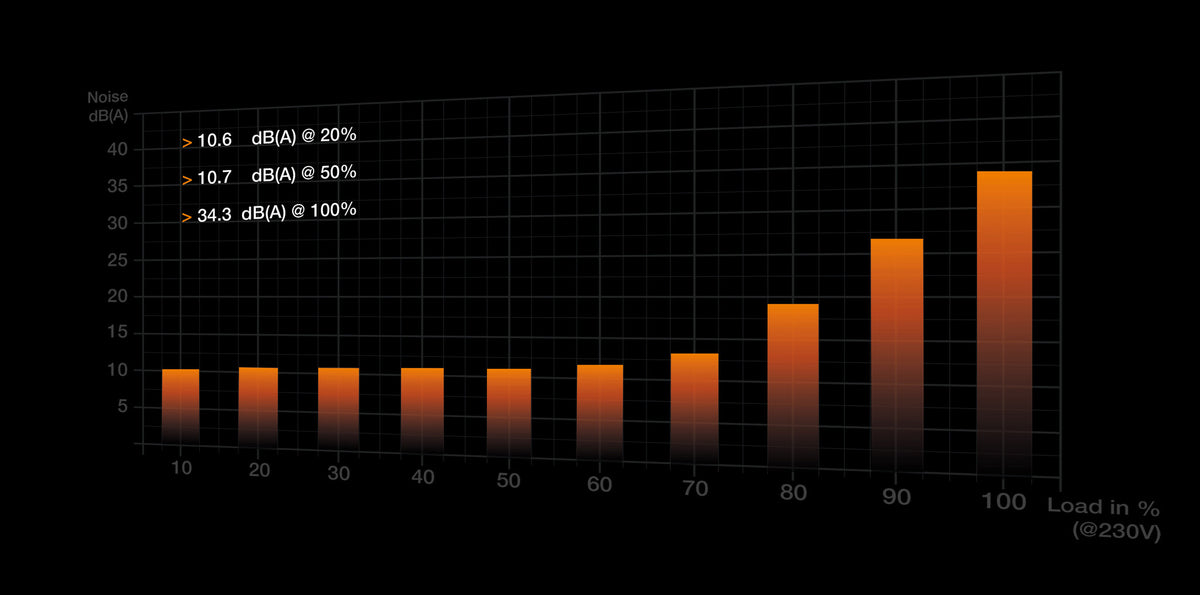

UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 550W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

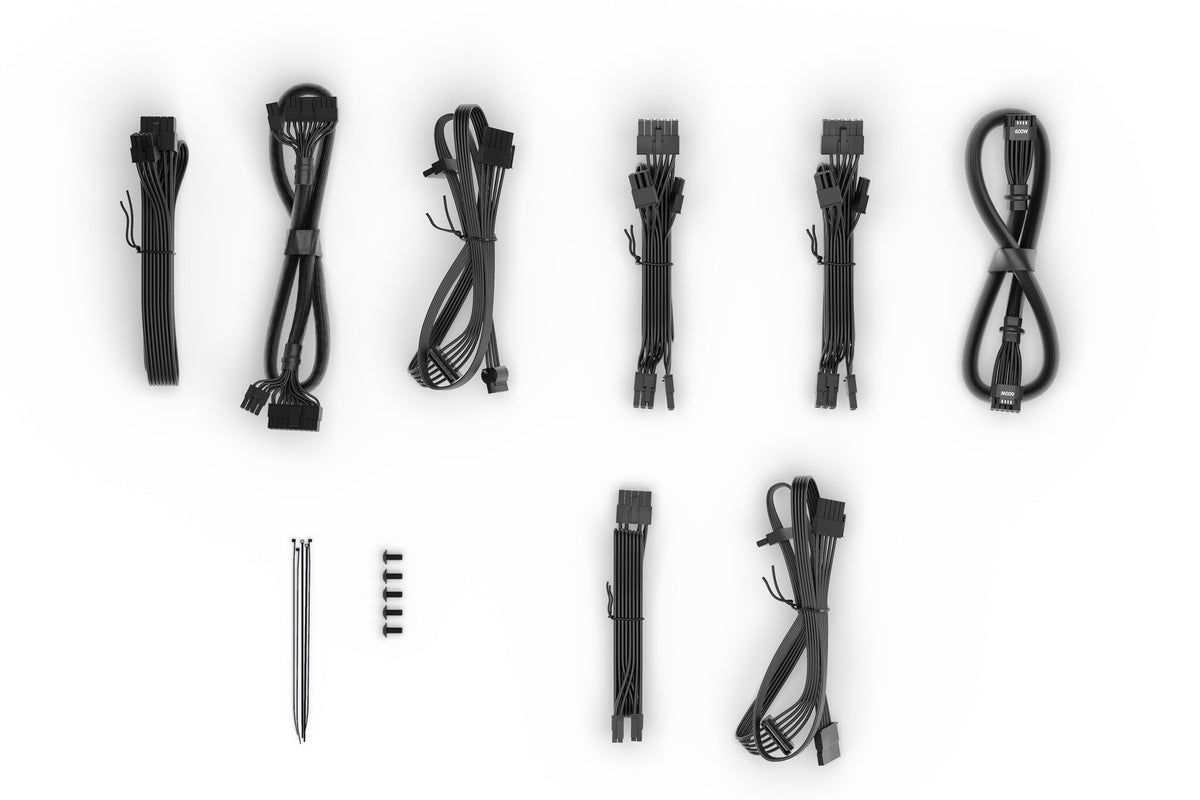

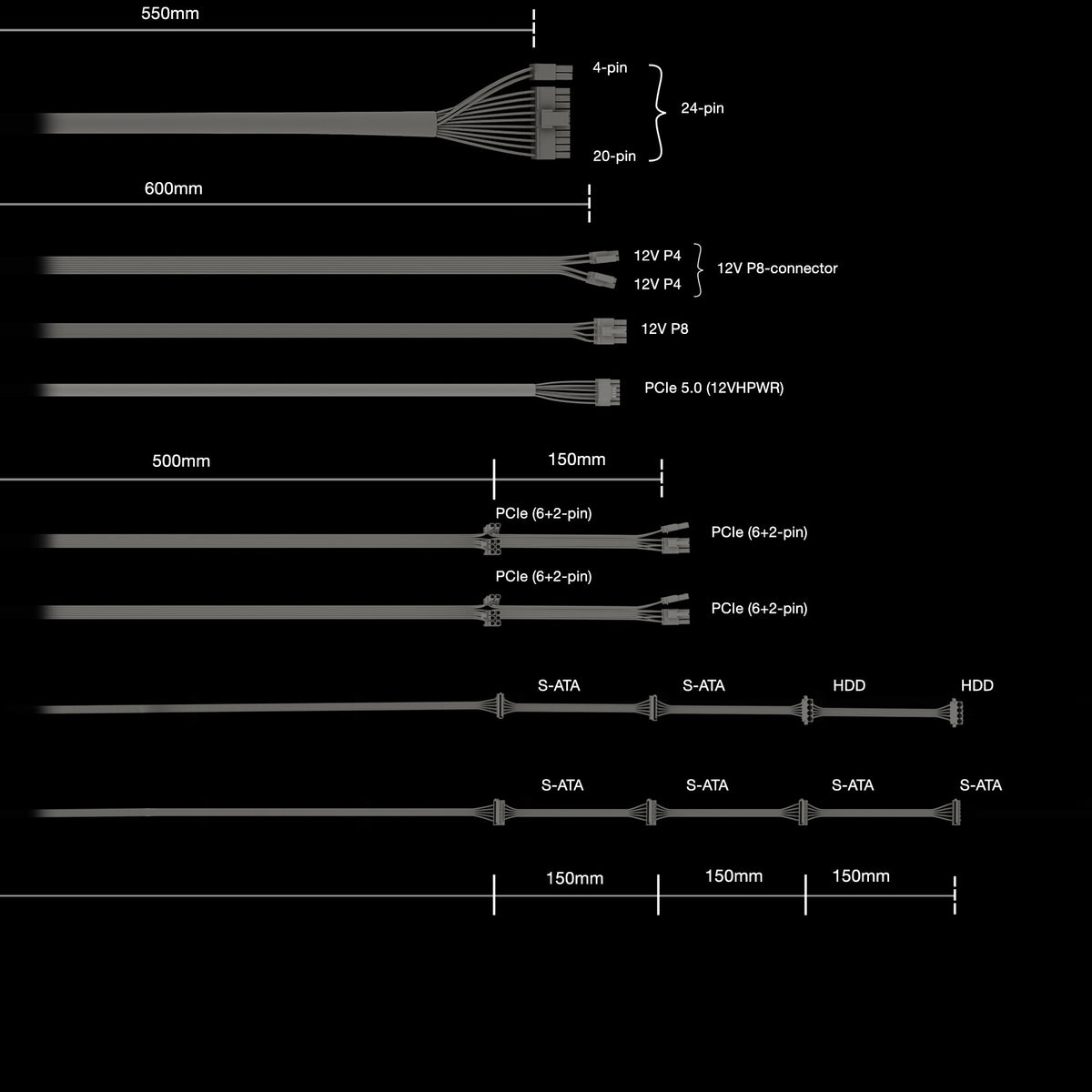

MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 550W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage |
| Hold time |
19 ms |
| Efficiency |
91.5% |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
22 A |
| Max output current (+12V2) |
50 A |
| Max output current (+12V1) |
55 A |
| Max output current (+3.3V) |
22 A |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
1200 W |
| Combined power (+3.3V) |
120 W |
| Power factor |
0.98 |
| Input current |
15 - 7.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
1250 W |
| Total power |
1200 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| PCI Express connector |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
60 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
800,950 mm |
| SATA power cable length |
500,650,800,950 mm |
| Number of SATA power connectors |
6 |
| Number of PATA power connectors |
2 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Rifle |
| Noise level |
34.3 dB |
| Silent mode |
Yes |
| EPS version |
2.92 |
| ATX version |
3.0 |
| Supported motherboard form factors |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan speed |
0 - 2700 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Cable tie(s) included |
Yes |
| Cables included |
AC, CPU, PATA, PCIe, SATA |
| Weight & dimensions |
|---|
| Weight |
1.92 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.19 kg |
| Package height |
100 mm |
| Package depth |
284 mm |
| Package width |
220 mm |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
BSMI, CB, CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, TUV, Triman, UKCA, WEEE, cTUVus |
| Logistics data |
|---|
| Shipping (inner) case length |
29.8 cm |
| Shipping (inner) case width |
42.6 cm |
| Shipping (inner) case height |
24.3 cm |
| Products per shipping (inner) case |
4 pc(s) |
| Shipping (inner) case net weight |
12.7 kg |
