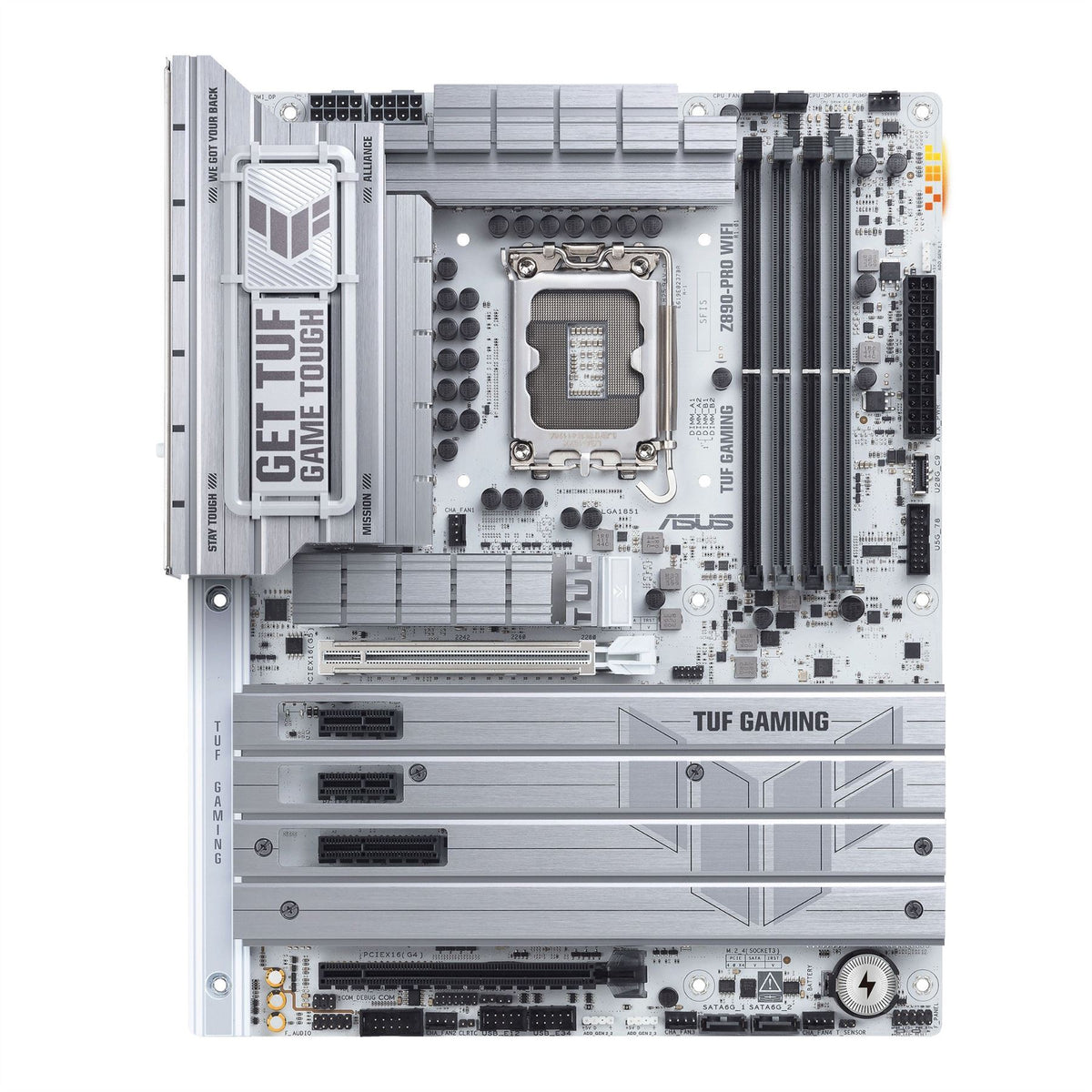

TUF GAMING Z890-PRO WIFI ASUS TUF GAMING Z890-PRO WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
USB 3.2 Gen 2x2 connectors
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Supported processor sockets
LGA 1851
Parallel processing technology support
Not supported
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1851
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
192 GB
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
0
WiFi-AP antenna jack
1
VGA (D-Sub) ports quantity
0
Thunderbolt ports quantity
2
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Supported processor sockets
LGA 1851
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220P
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.5 kg
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.5 kg
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Screws included
Yes
Other features
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.5 kg
PCI Express x1 (Gen 4.x) slots
2
