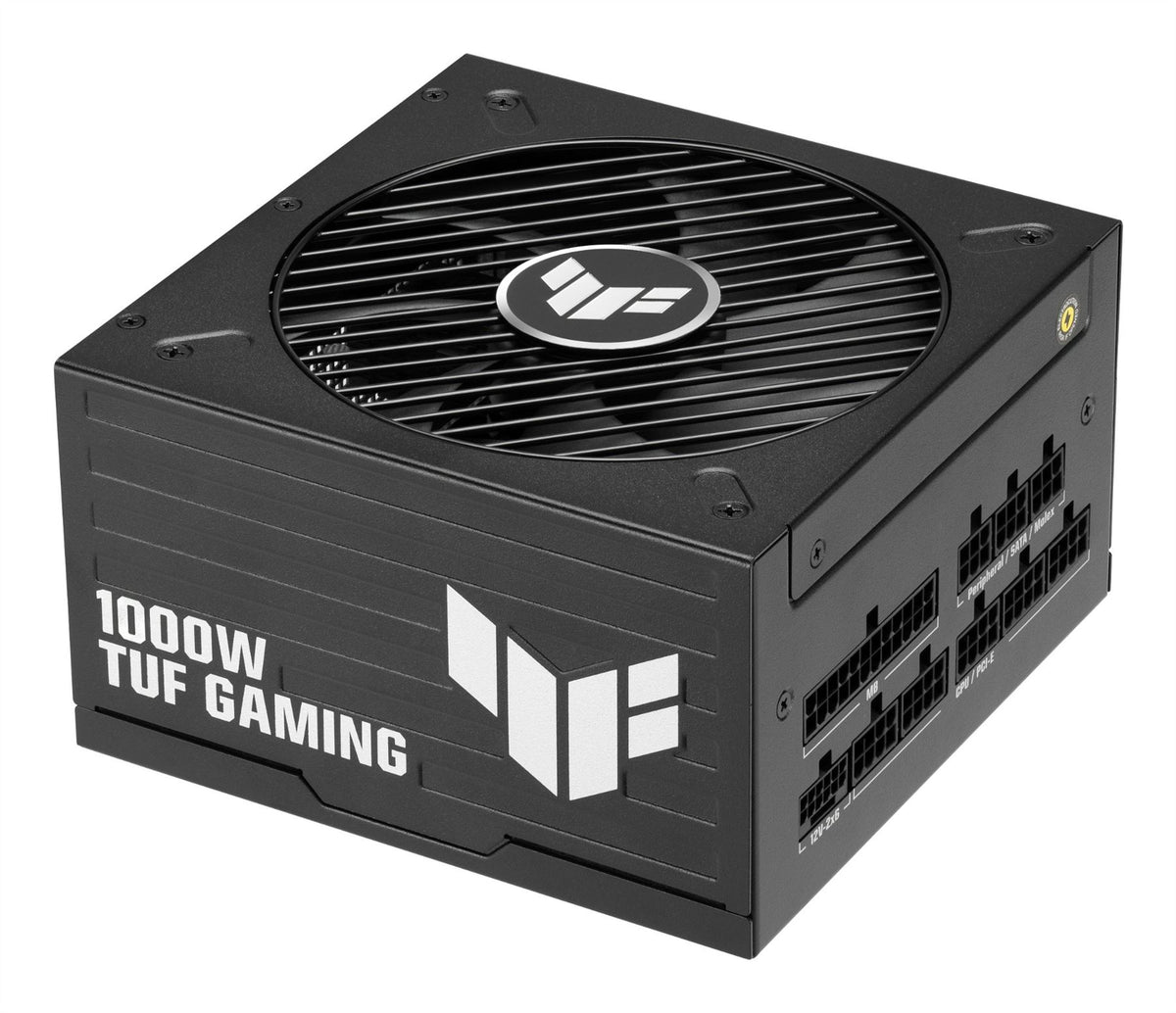

ASUS TUF-GAMING-1000P power supply unit 1000 W 20+4 pin ATX ATX Black
Regular price
$173.00
Why Shop Clove?
Lower Carbon Footprint
Choosing refurbished saves an estimated 50–70kg of CO2 compared to buying new.
Independently Tested
Every device is tested to 80+ quality checkpoints via PhoneCheck certification.
Repaired by Experts
Our in-house repair team refurbishes every device before it reaches you.
Close the Loop
Done with your old device? Send it back via Clove Recycling and keep it out of landfill.
Built For The Long Haul The ASUS TUF Gaming 1000W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Cooling
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Platinum
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
120000 h
Design
80 PLUS certification
80 PLUS Platinum
Product colour
Black
On/off switch
Yes
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
1000 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
150,400 mm
Peripheral (Molex) power cable length
150,400 mm
PCI Express power cable length
67.5 cm
CPU power cable length
75 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
3
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
1
Certificates
Compliance certificates
RoHS
80 PLUS certification
80 PLUS Platinum
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.51 kg
Packaging data
Package depth
188 mm
Package width
304 mm
Package height
127 mm
Package type
Box
Package weight
3.29 kg
Technical details
Compliance certificates
RoHS
