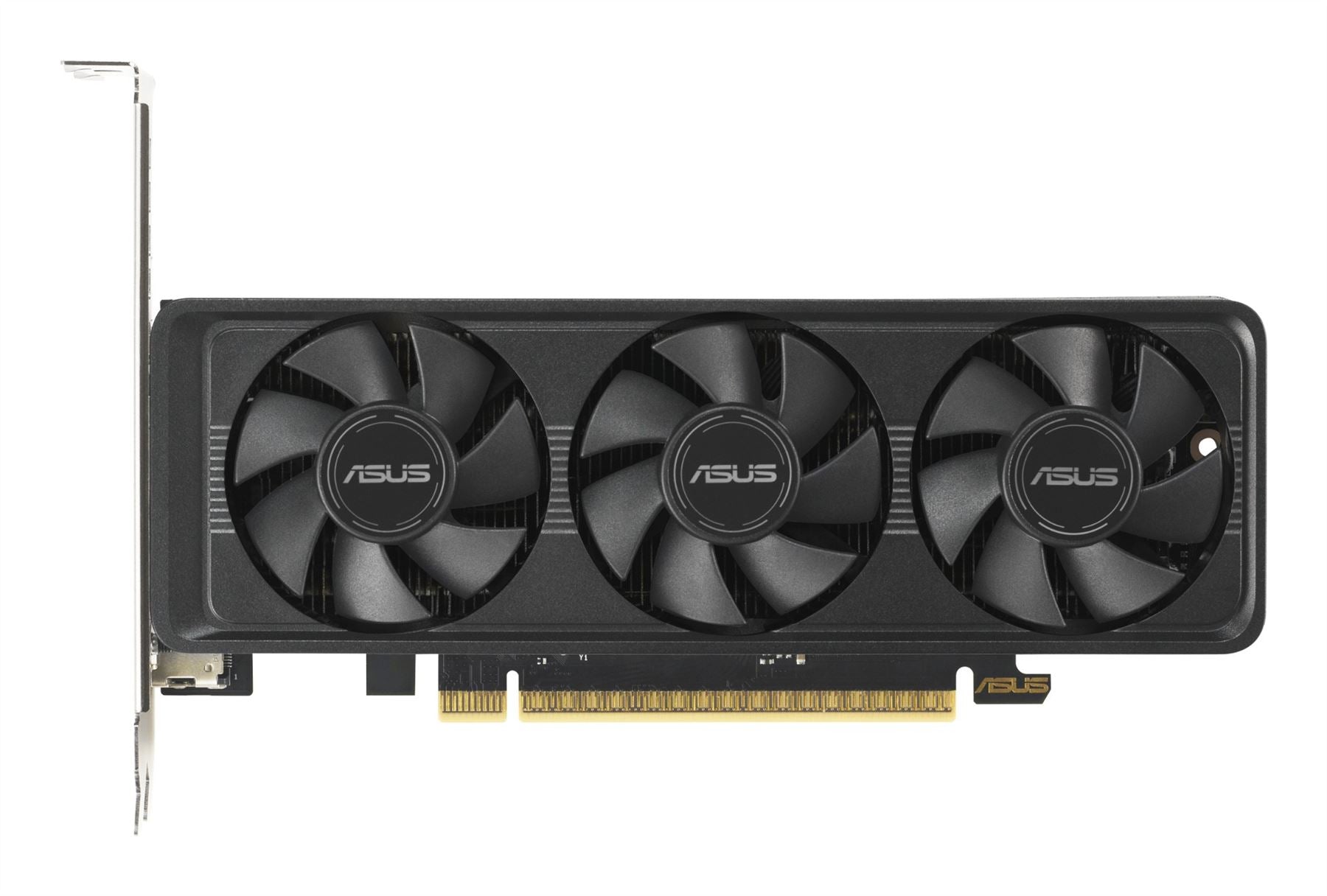

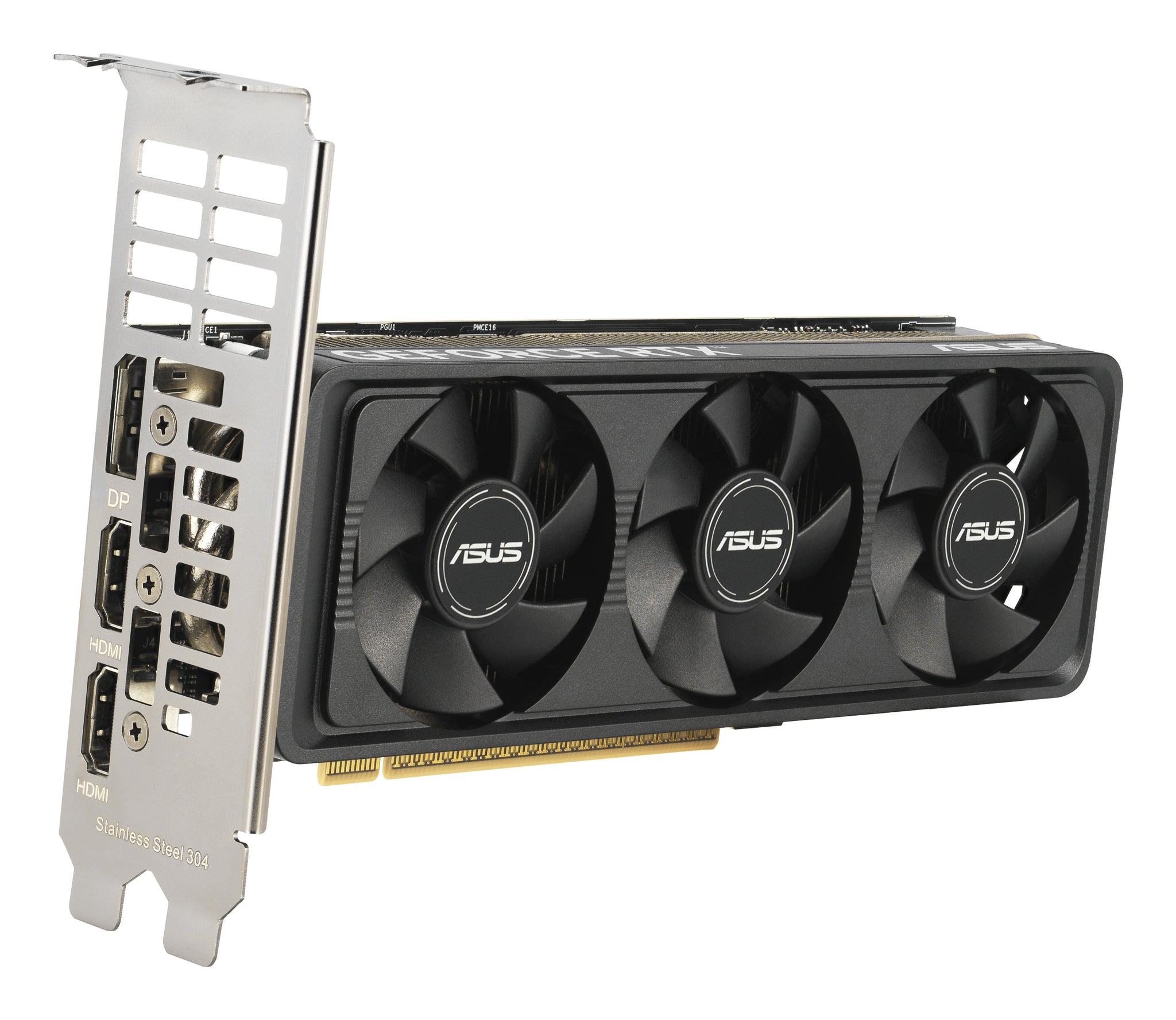

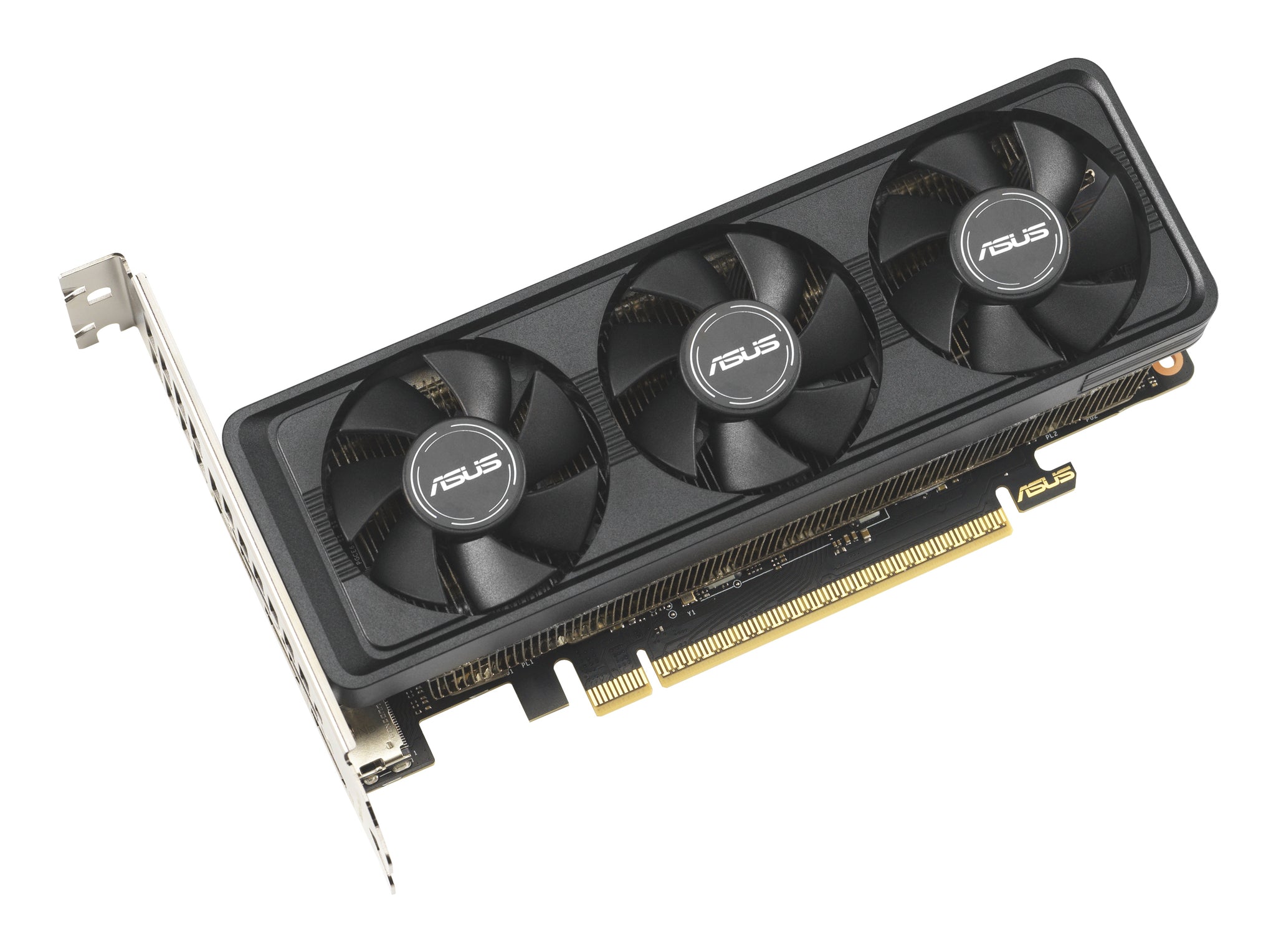

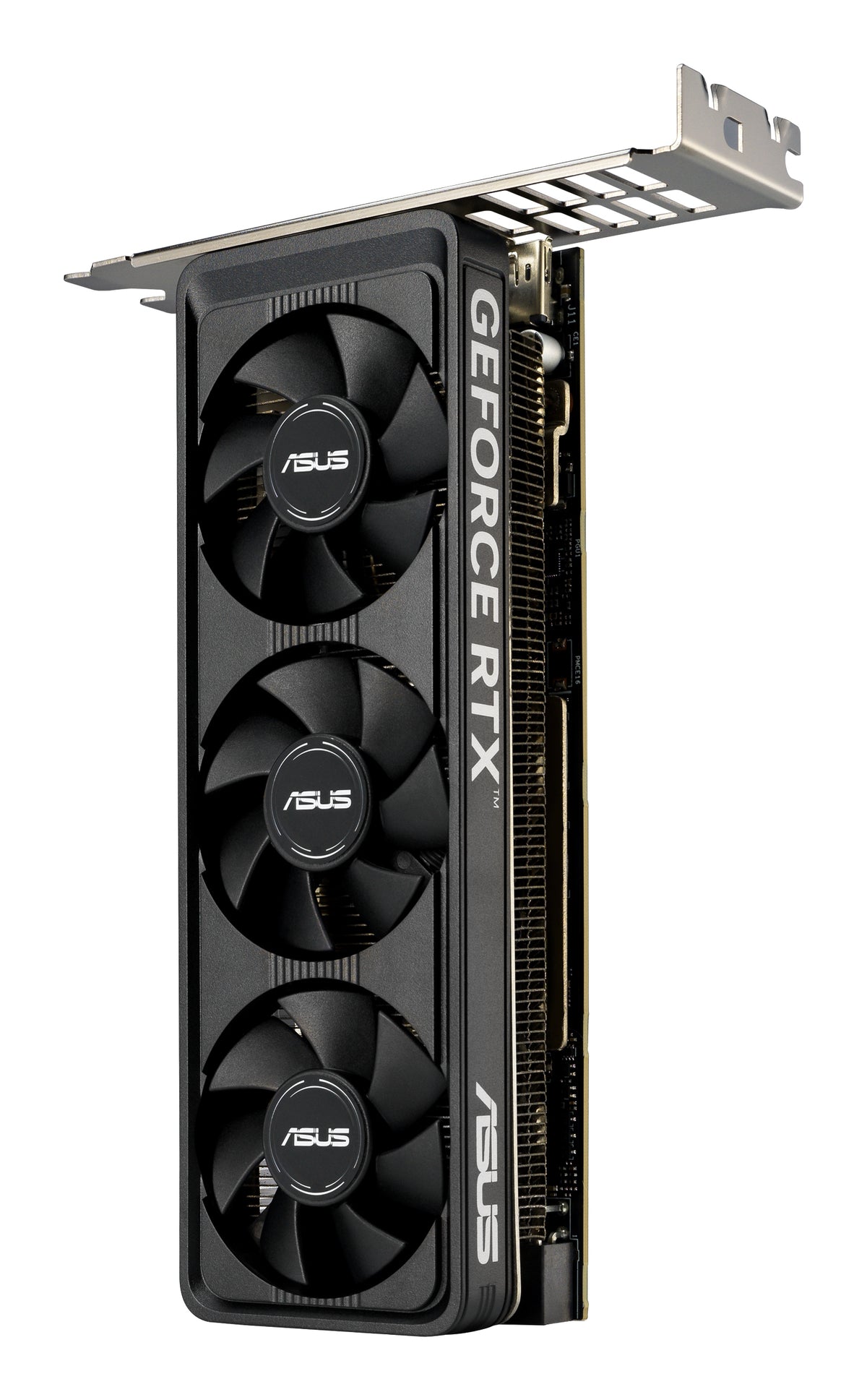

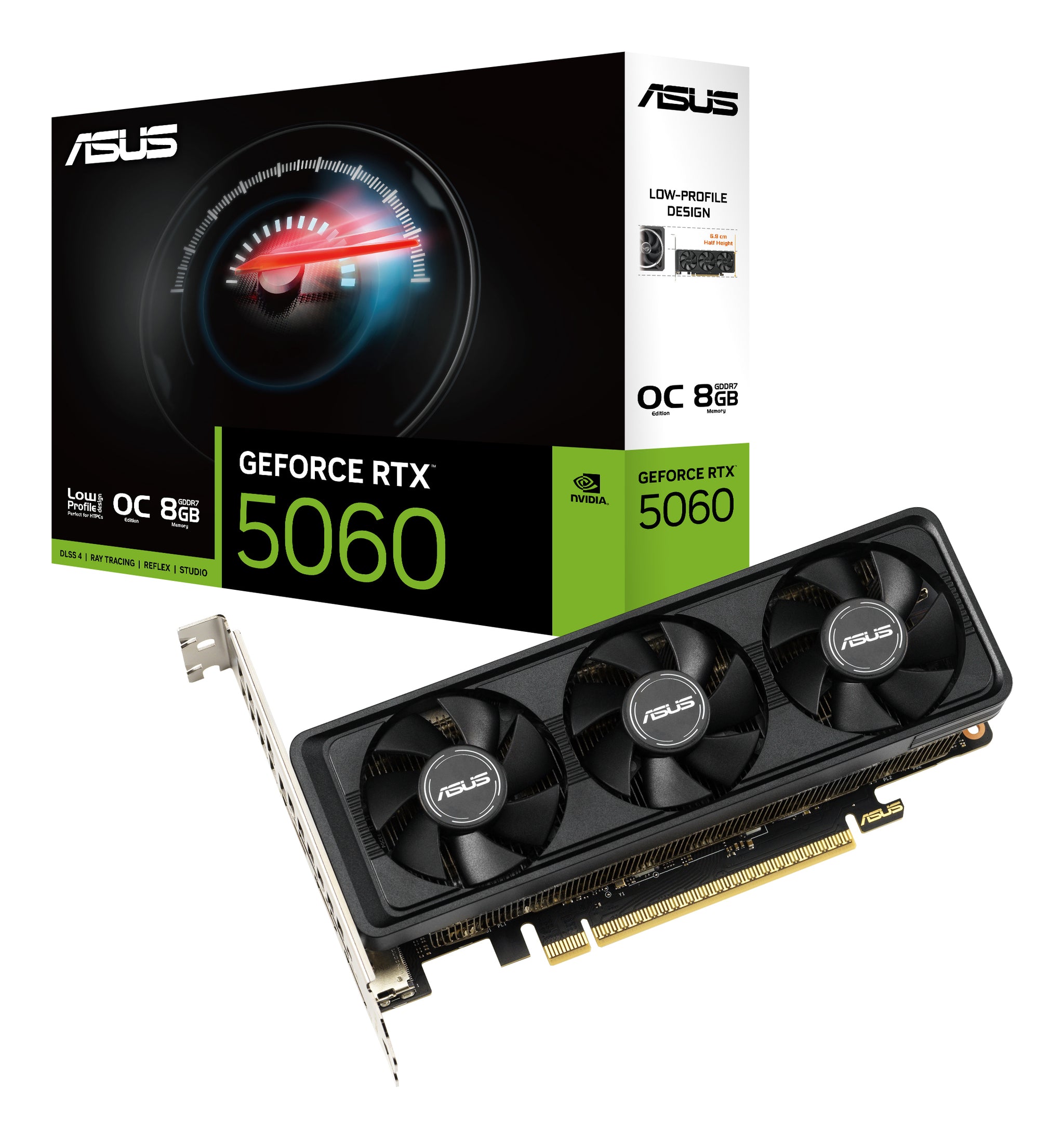

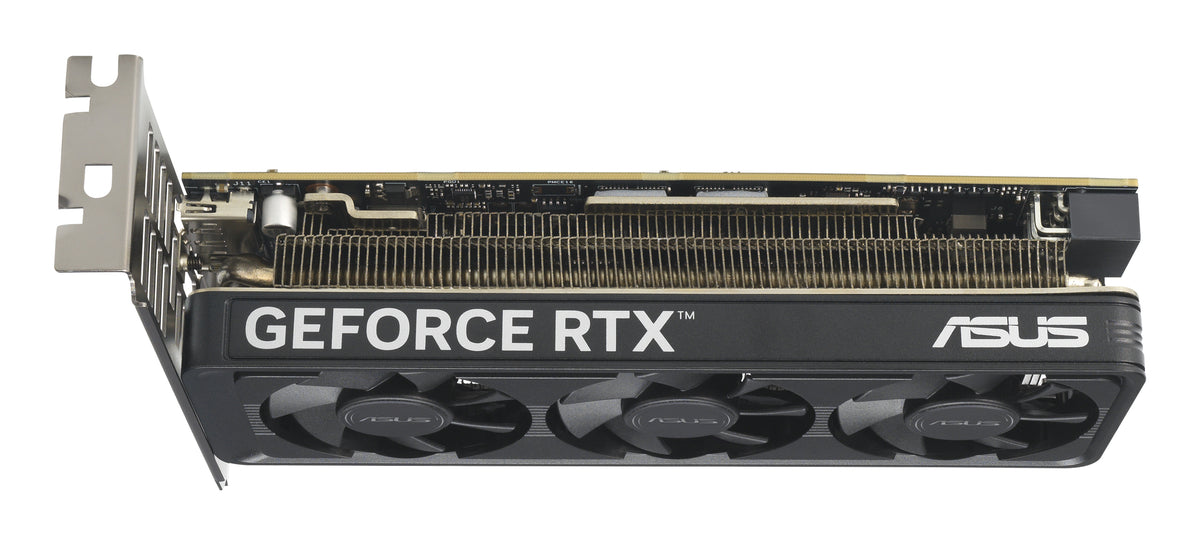

The ASUS GeForce RTX™ 5060 LP BRK 8GB GDDR7 OC Edition is big productivity in a small package
Big Productivity in a Small Package
ASUS GeForce RTX™ 5060 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor boost clock speed | 2550 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 3840 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5060 |
| Processor frequency (OC mode) | 2580 MHz |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR7 |

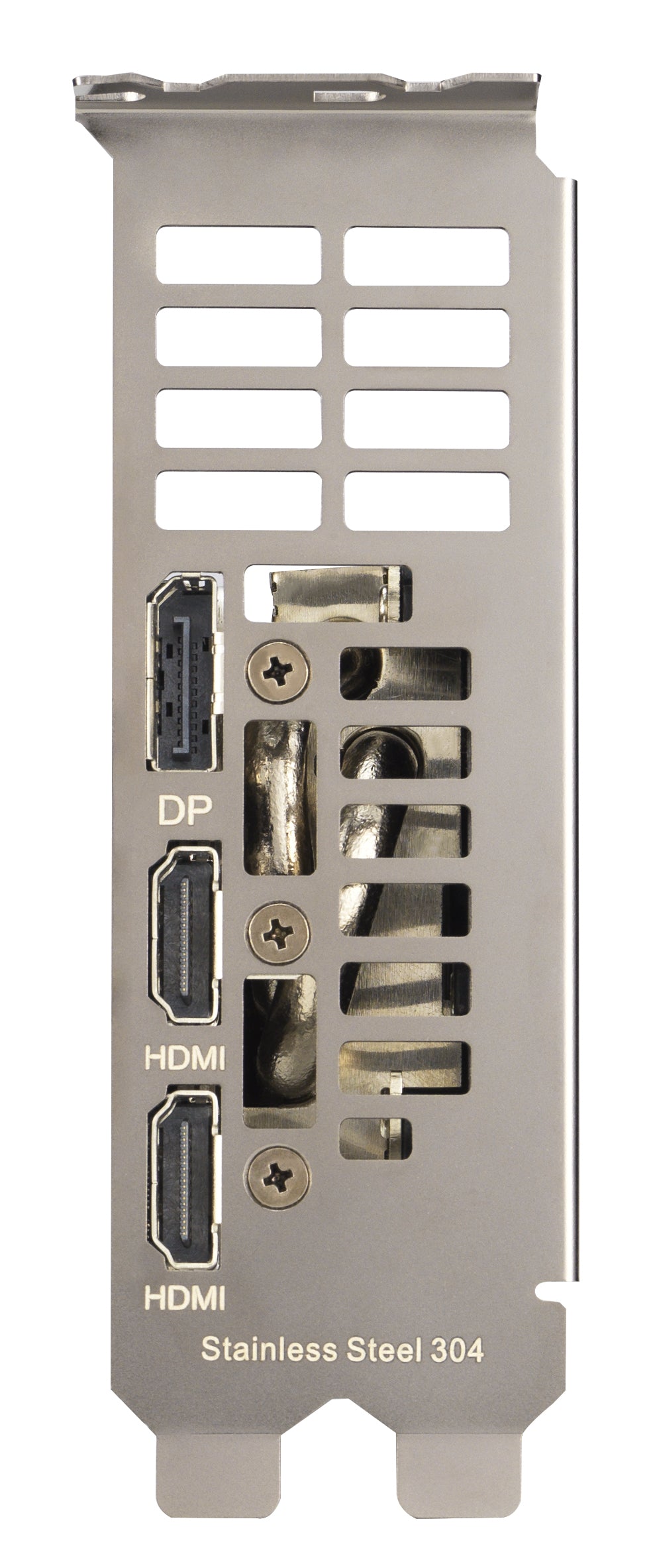

| Ports & interfaces | |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| DisplayPort version | 2.1a |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Interface type | PCI Express 5.0 |
| Video | |
| OpenGL version | 4.6 |
| HDMI version | 2.1 |
| HDCP | Yes |
| Dual Link DVI | No |
| CUDA cores | 3840 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| NPU performance up to | 627 TOPs |
| Overclocked (OC) edition | Yes |
| Design | |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Product colour | Multicolour |
| Number of slots | 2 |
| Software | |
| Windows operating systems supported | Yes |
| Power | |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
| Number of slots | 2 |
| Height | 69 mm |
| Depth | 38 mm |
| Length | 175.8 mm |
| Technical details | |
| Cooling type | Active |
| Product colour | Multicolour |
| System requirements | |
| Windows operating systems supported | Yes |
| Minimum system power supply | 550 W |
| Packaging data | |
| Package type | Box |
| Package width | 300 mm |
| Package height | 218 mm |
| Package depth | 55 mm |
