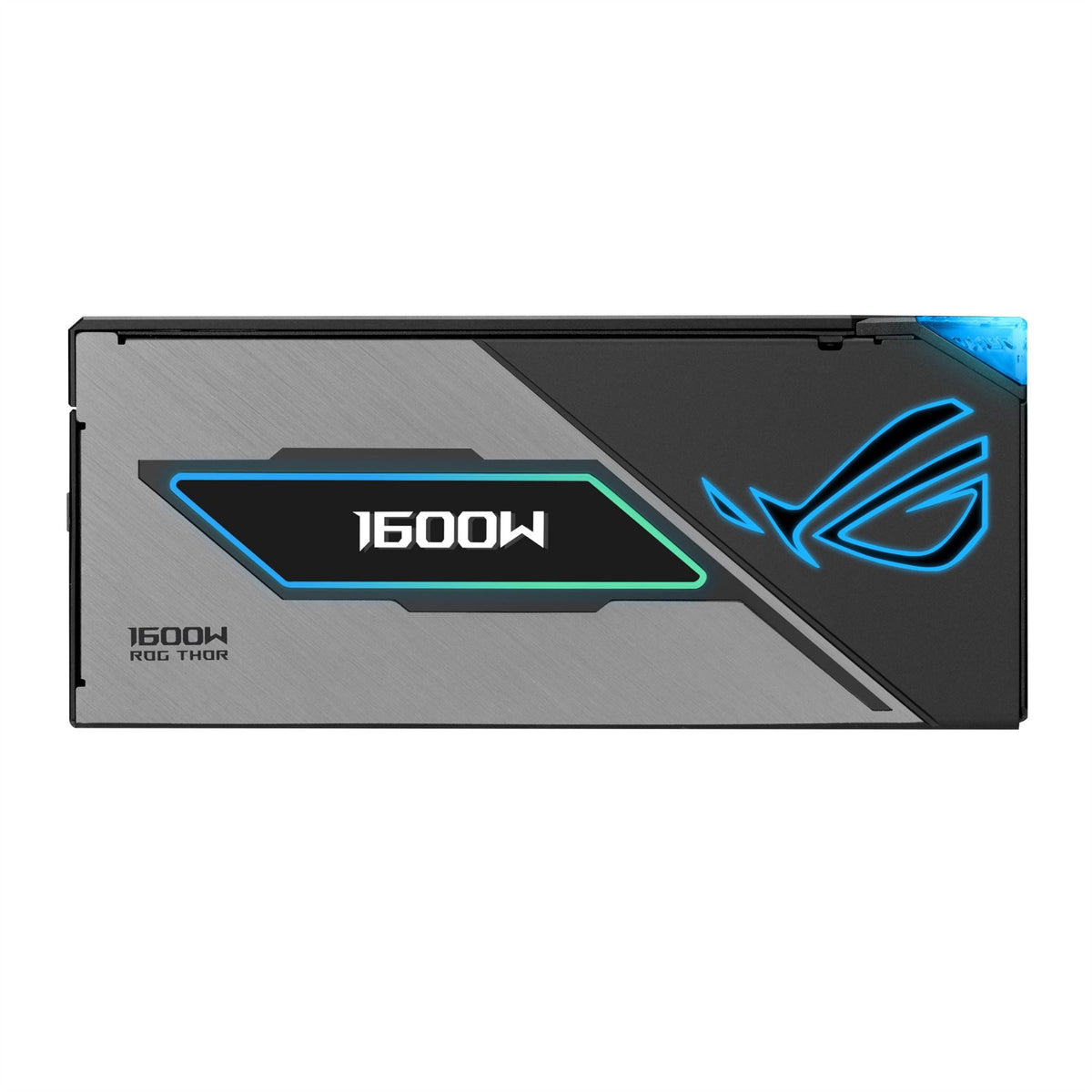

ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey
Regular price
$807.00
Why Shop Clove?
Lower Carbon Footprint
Choosing refurbished saves an estimated 50–70kg of CO2 compared to buying new.
Independently Tested
Every device is tested to 80+ quality checkpoints via PhoneCheck certification.
Repaired by Experts
Our in-house repair team refurbishes every device before it reaches you.
Close the Loop
Done with your old device? Send it back via Clove Recycling and keep it out of landfill.
ULTIMATE POWER. UNMATCHED STABILITY. The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
Cooling
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
Silent mode
Yes
80 PLUS certification
80 PLUS Titanium
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
120000 h
Bearing technology
DBB
Design
80 PLUS certification
80 PLUS Titanium
Product colour
Grey
On/off switch
Yes
Number of fans
1 fan(s)
Illumination
Yes
Cooling type
Active
Built-in display
Yes
Display type
OLED
Power
Total power
1600 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1600 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
30 A
Max output current (+12V)
133.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
120,400 mm
Peripheral (Molex) power cable length
150,400 mm
PCI Express power cable length
75 cm
CPU power cable length
100 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
10
Peripheral (Molex) power connectors (4-pin)
9
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
2
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Weight & dimensions
Width
200 mm
Depth
150 mm
Height
86 mm
Weight
2.8 kg
Packaging data
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Package depth
251 mm
Package width
390 mm
Package height
159 mm
Package type
Box
Package weight
6.3 kg
Certificates
80 PLUS certification
80 PLUS Titanium
