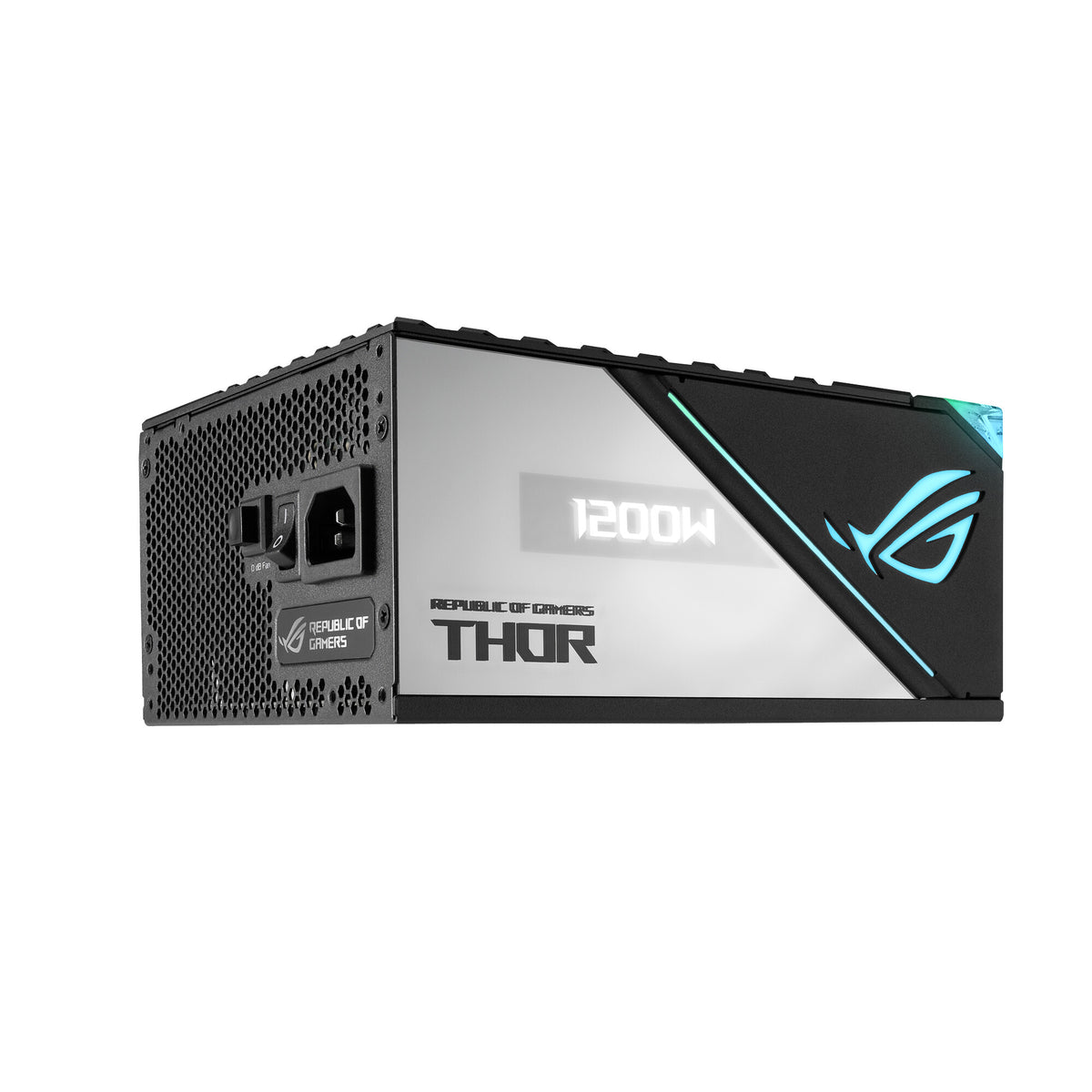

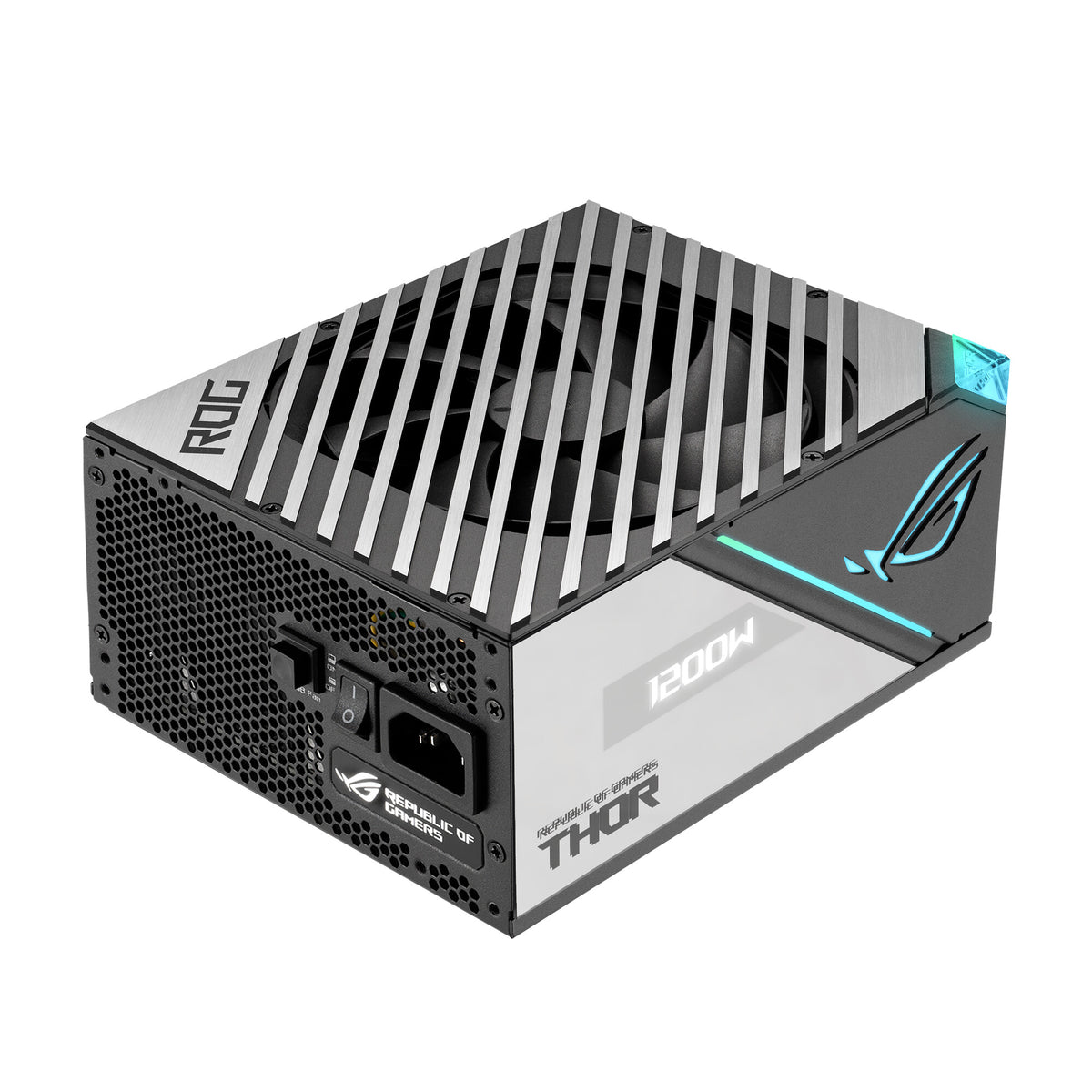

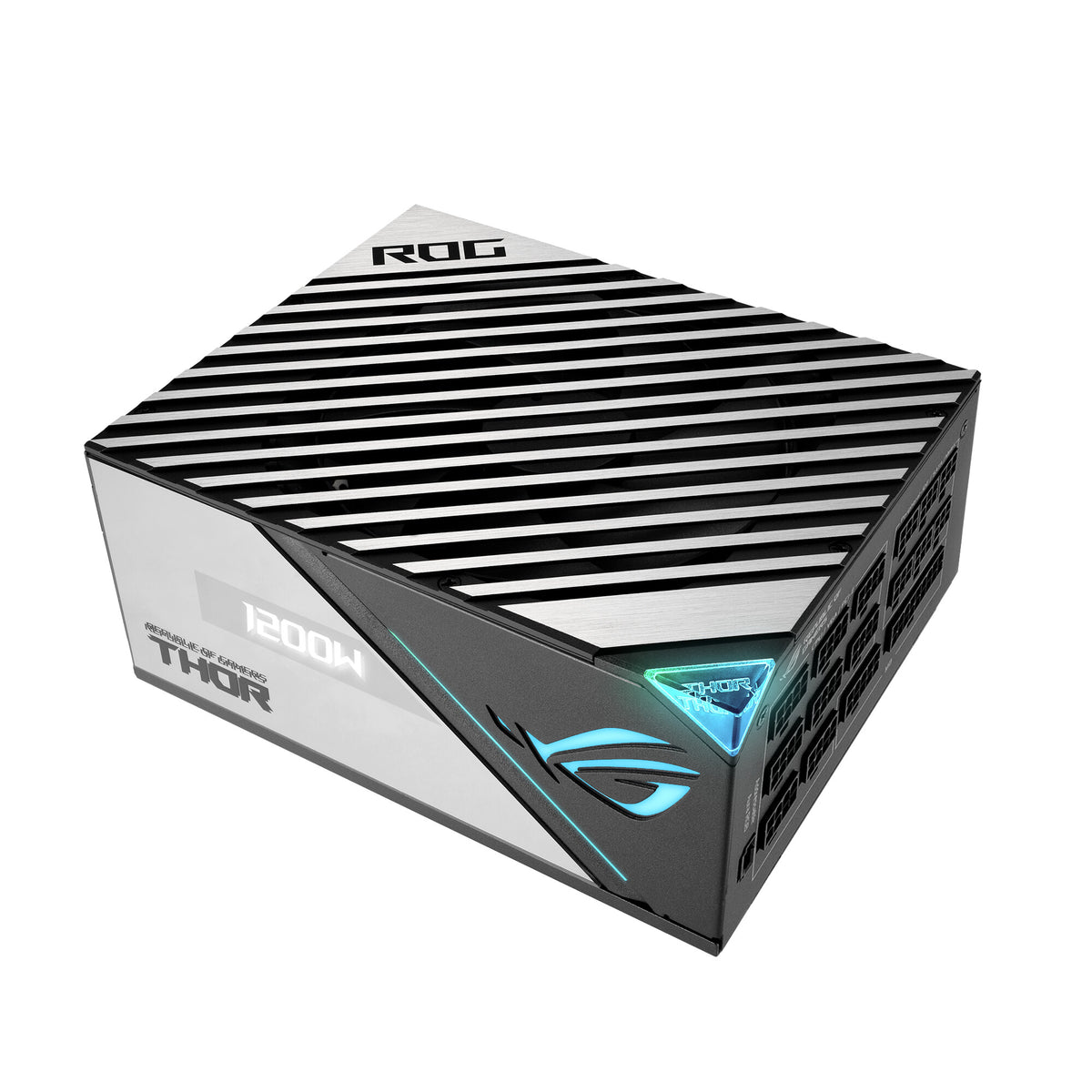

ROG Thor 1200W Platinum II is the quietest PSU in its class.
The Quietest 1200W Power Supply

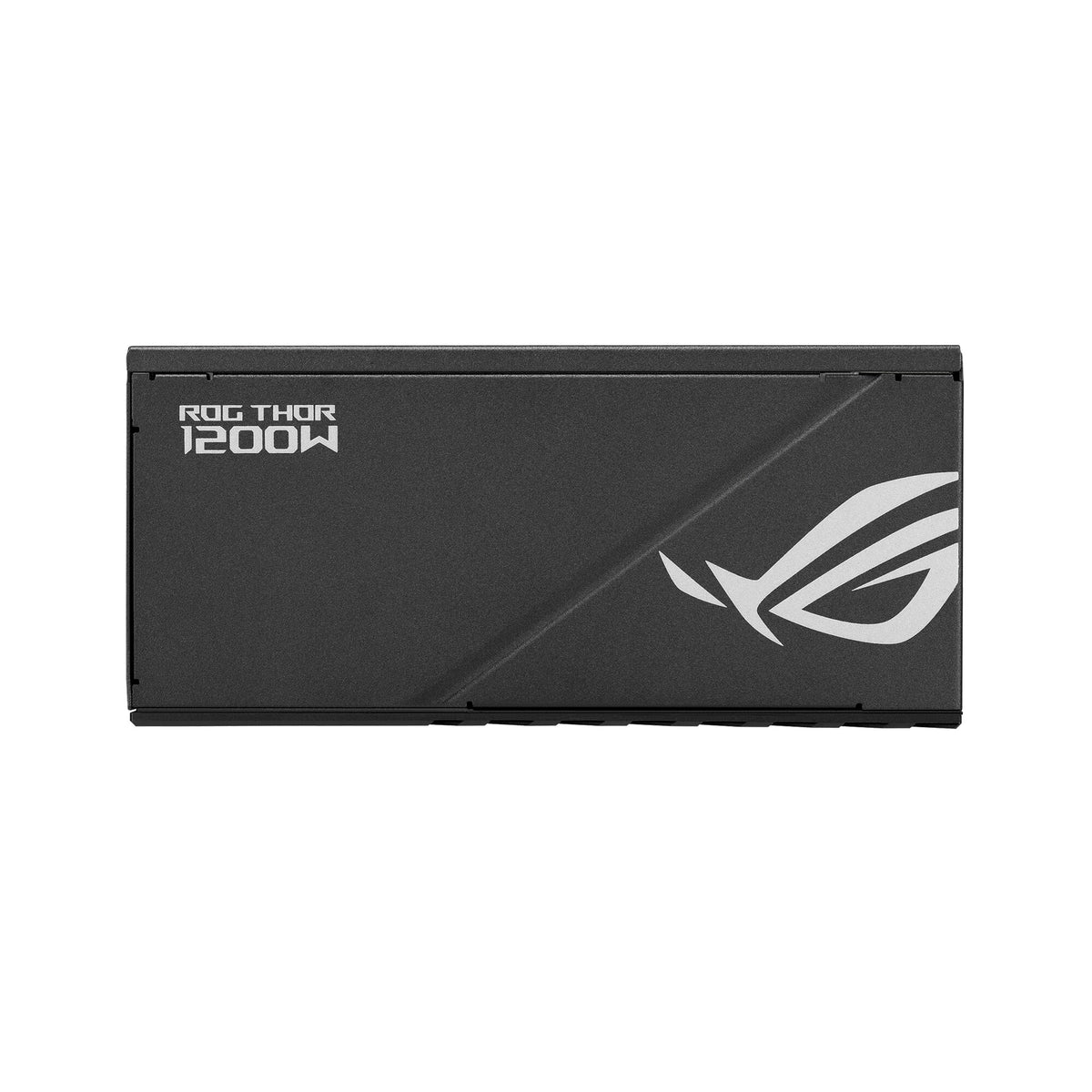

Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
Based on Cybenetics PSU test result database entries before October 2021.
COOLING

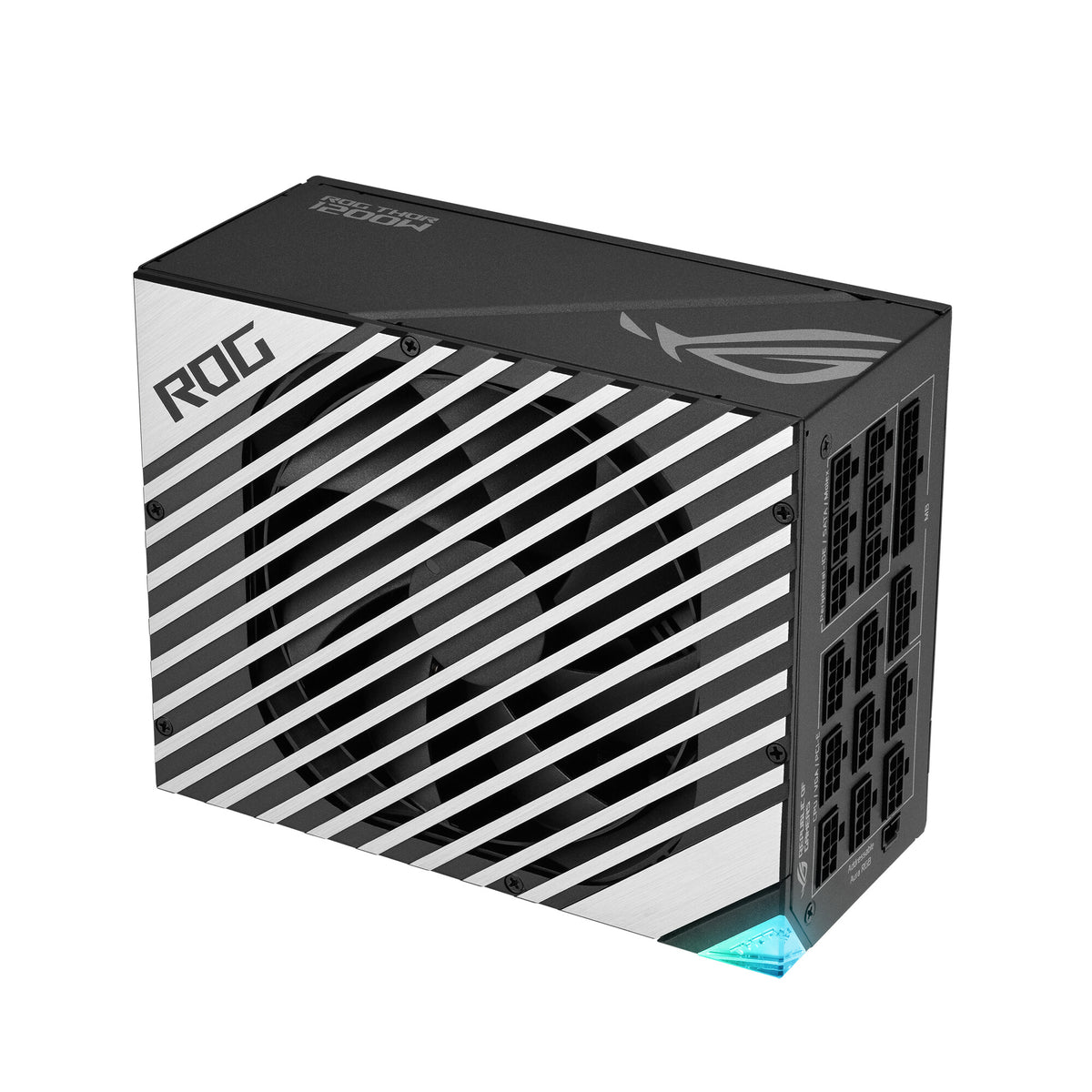

ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

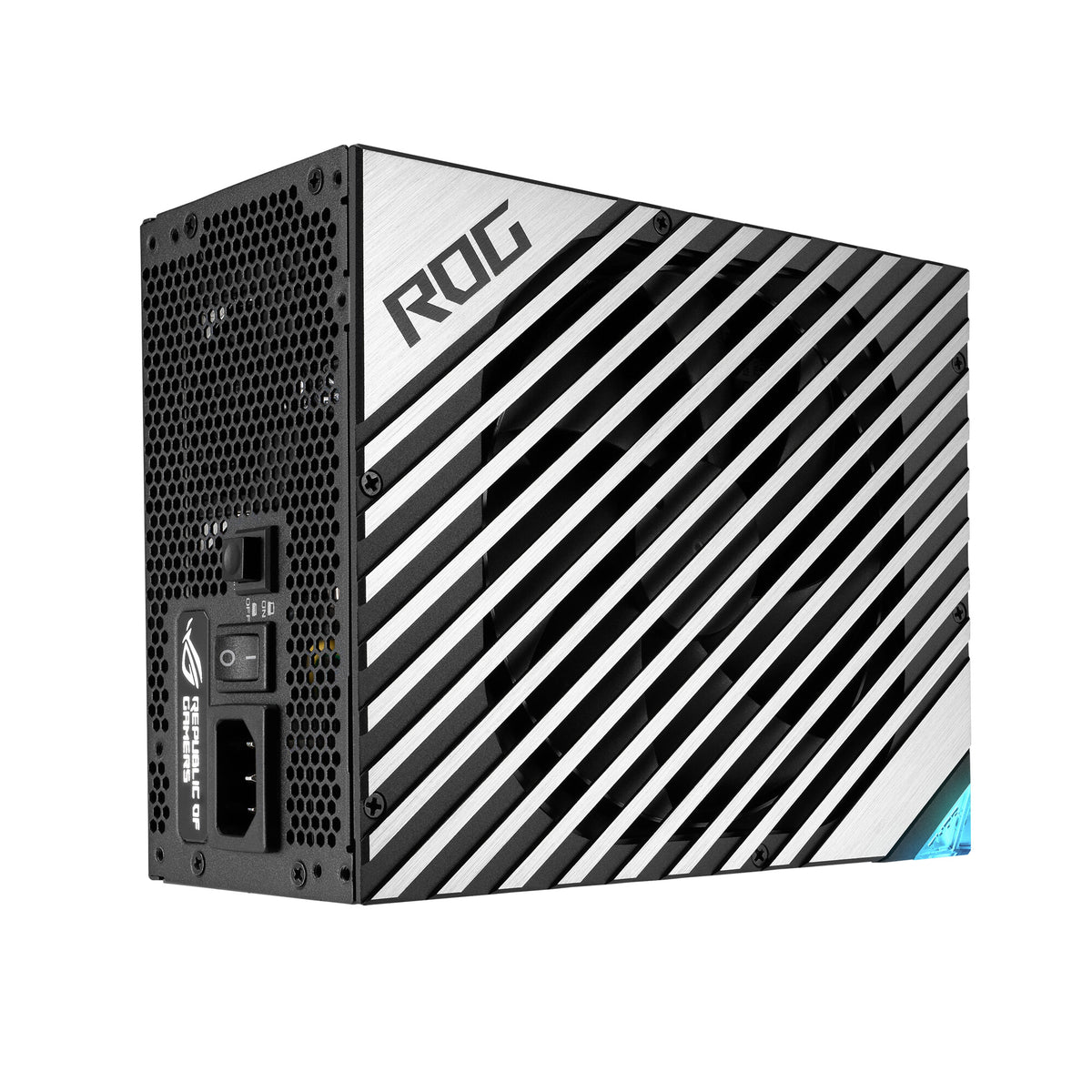

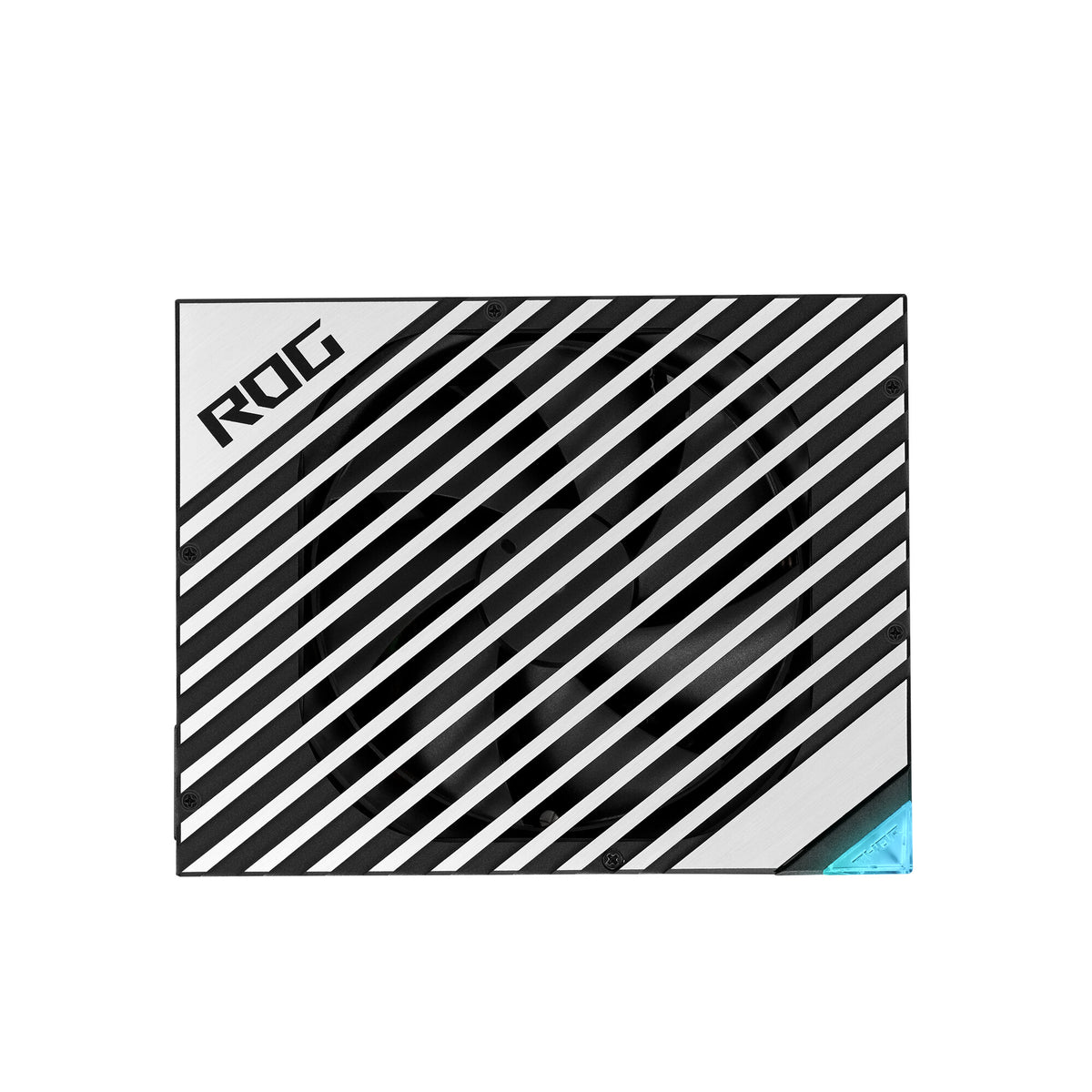

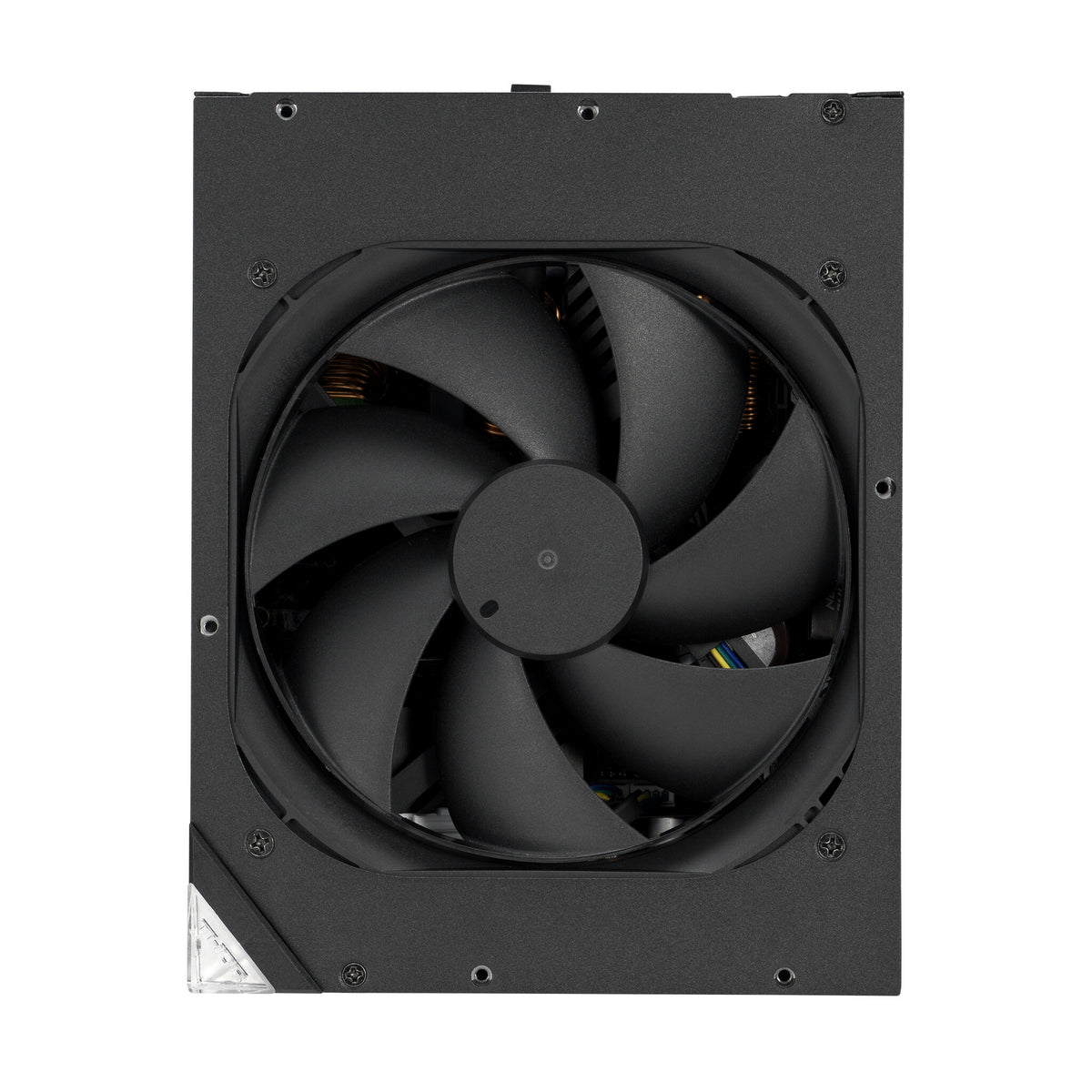

Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

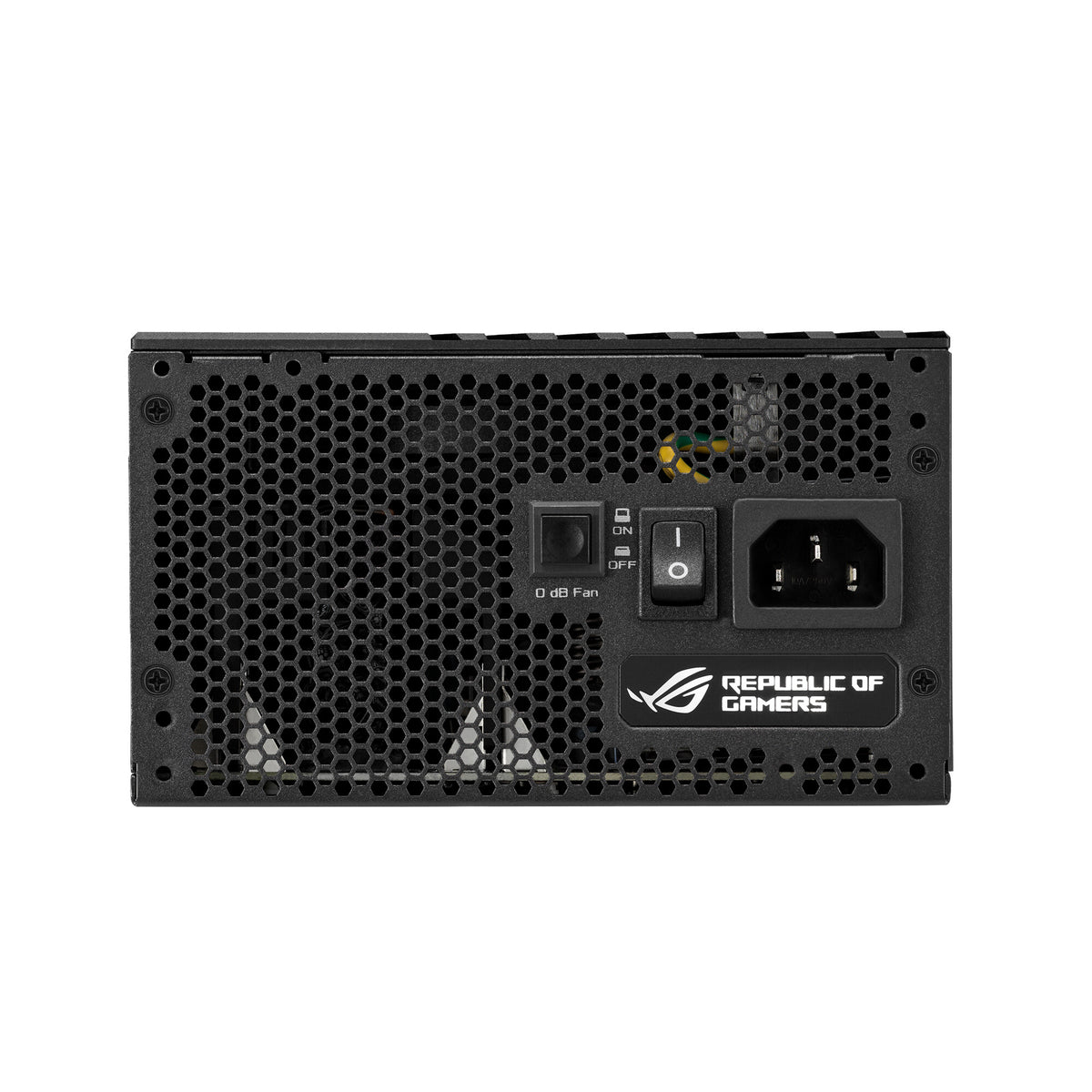

0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
ENGINEERING
80 Plus Platinum Certification
The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

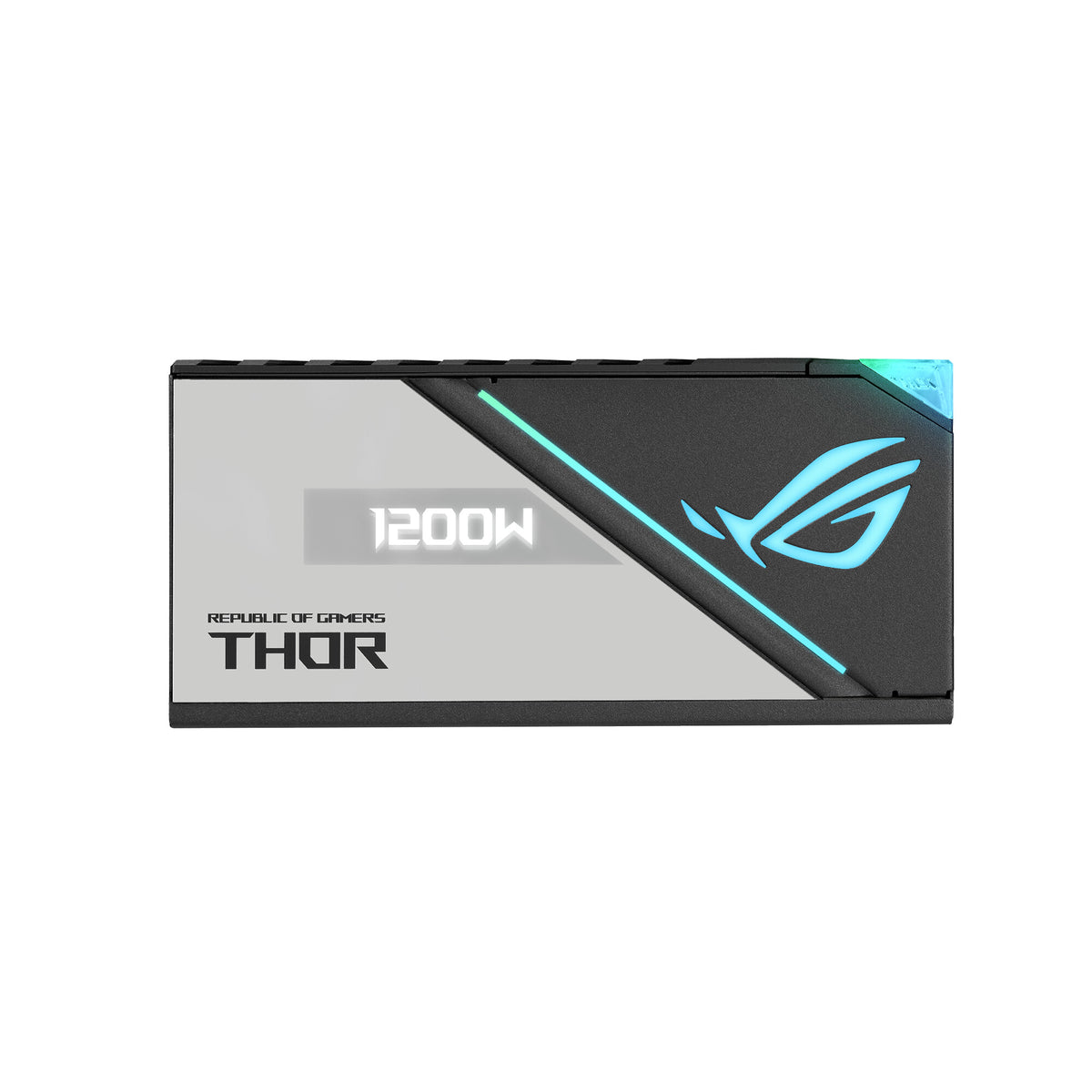

OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 1200W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
10-year Warranty
The ROG Thor 1200W Platinum II is backed with a 10-year* warranty.
*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.

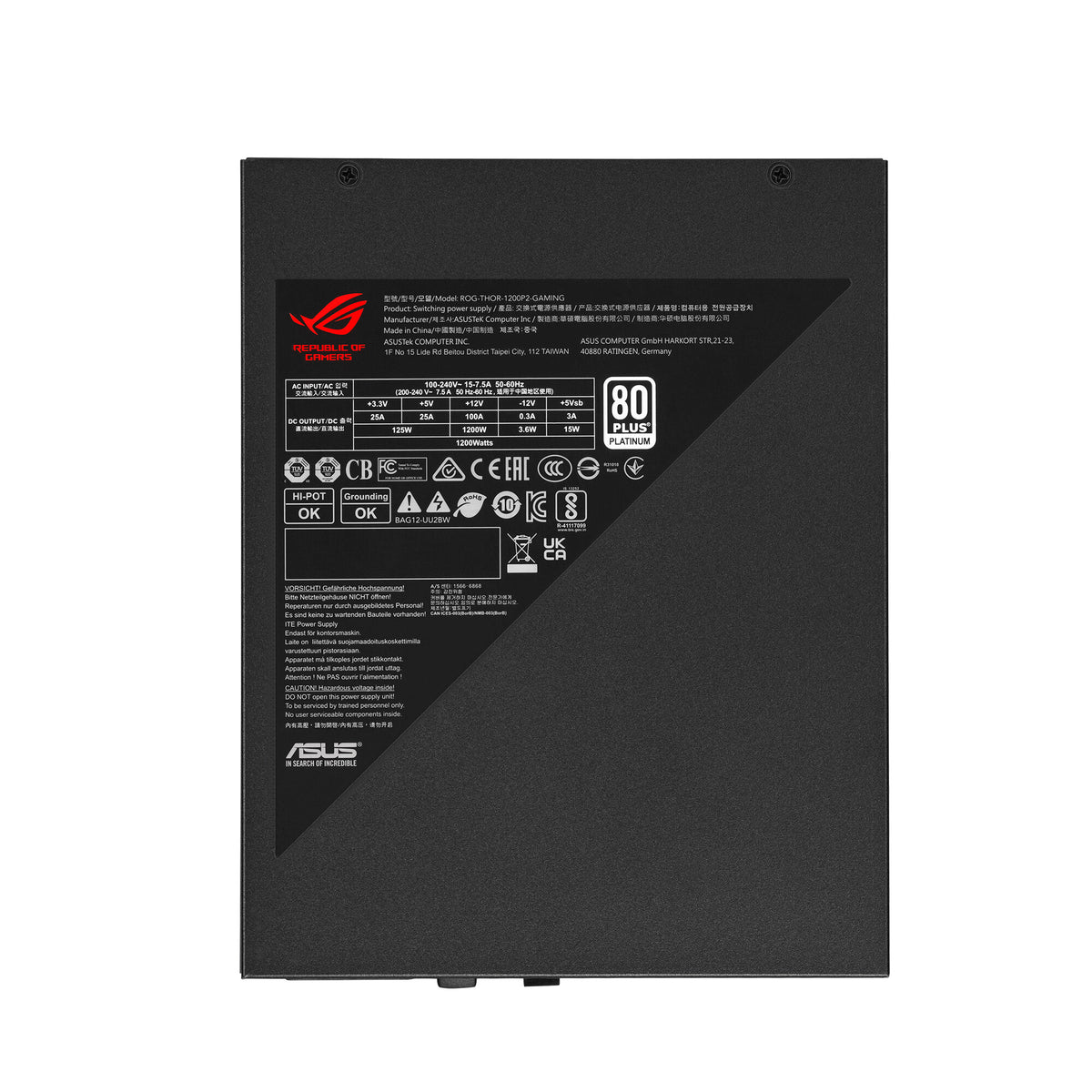

| Power |
|---|
| Power protection features |
Over power, Over voltage, Overcharge, Short circuit, Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
100 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
125 W |
| Combined power (+12V) |
1200 W |
| Combined power (+3.3V) |
125 W |
| Maximum input current (@220V) |
100 A |
| AC input voltage |
100 - 240 V |
| Total power |
1200 W |

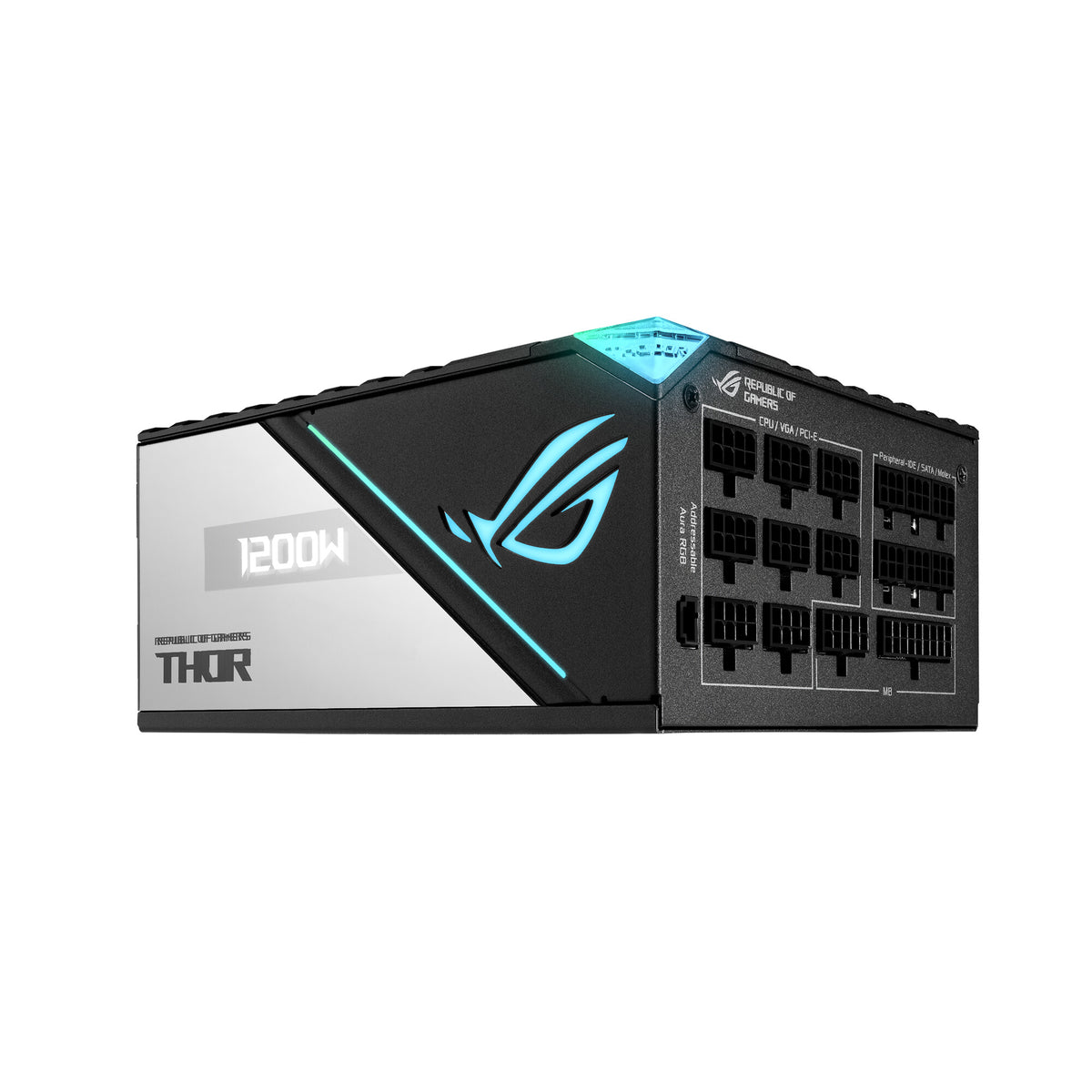

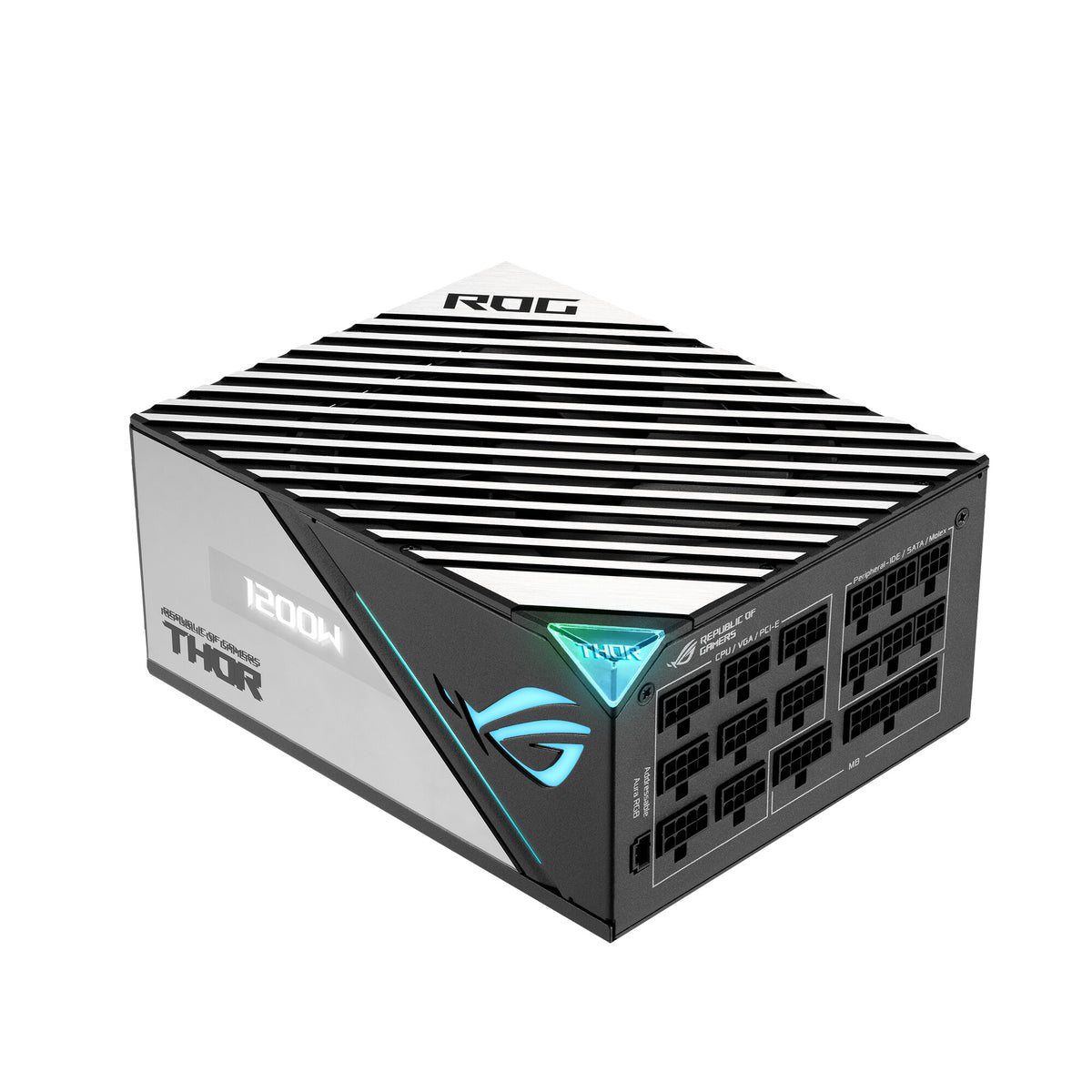

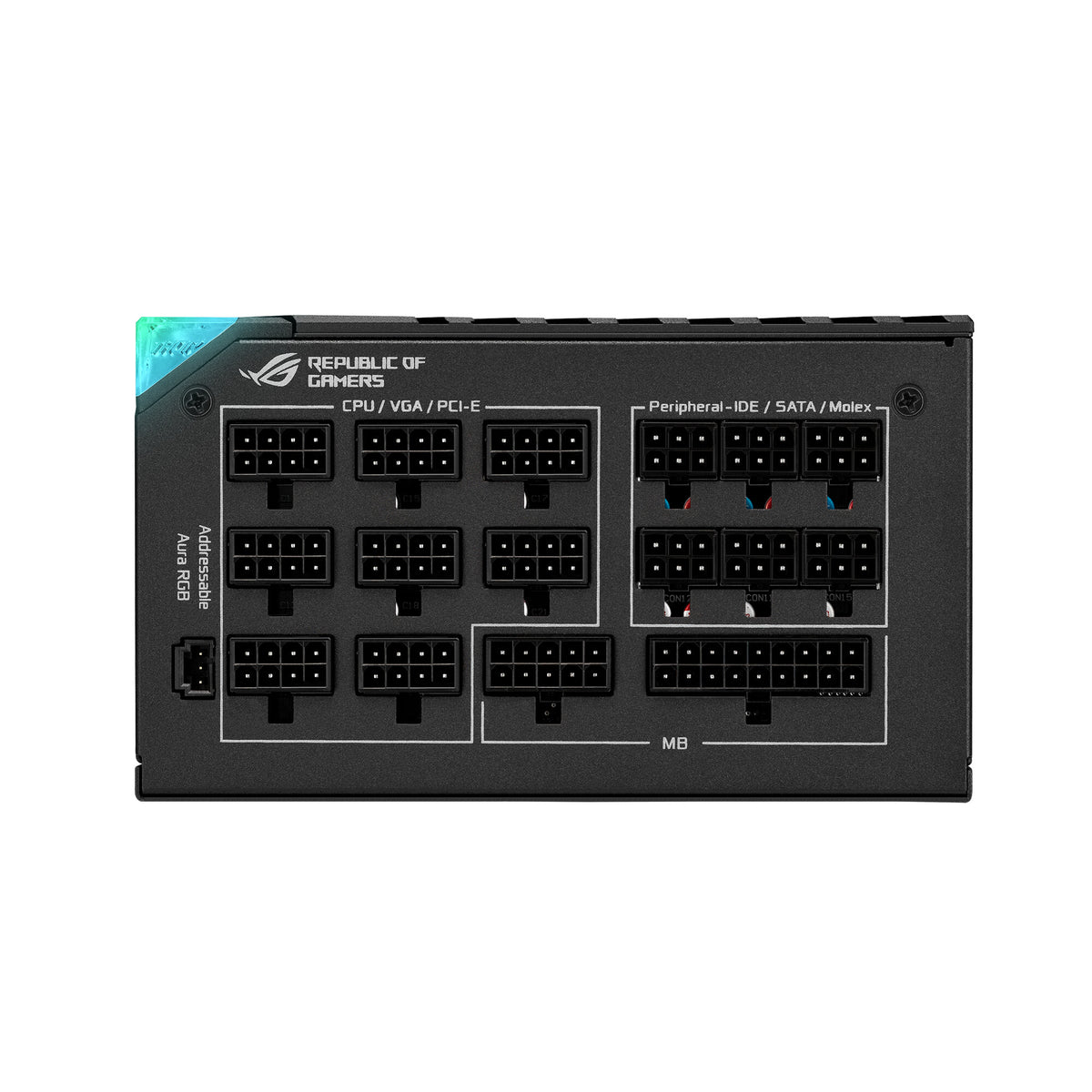

| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX Power connector (24-pin) |
Yes |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
8 |
| Peripheral (Molex) power connectors (4-pin) |
6 |
| Number of SATA power connectors |
12 |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Illumination |
Yes |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Product colour |
Grey |
| Packaging content |
|---|
| Cables included |
AC |
| Weight & dimensions |
|---|
| Weight |
2.37 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
190 mm |
| Packaging data |
|---|

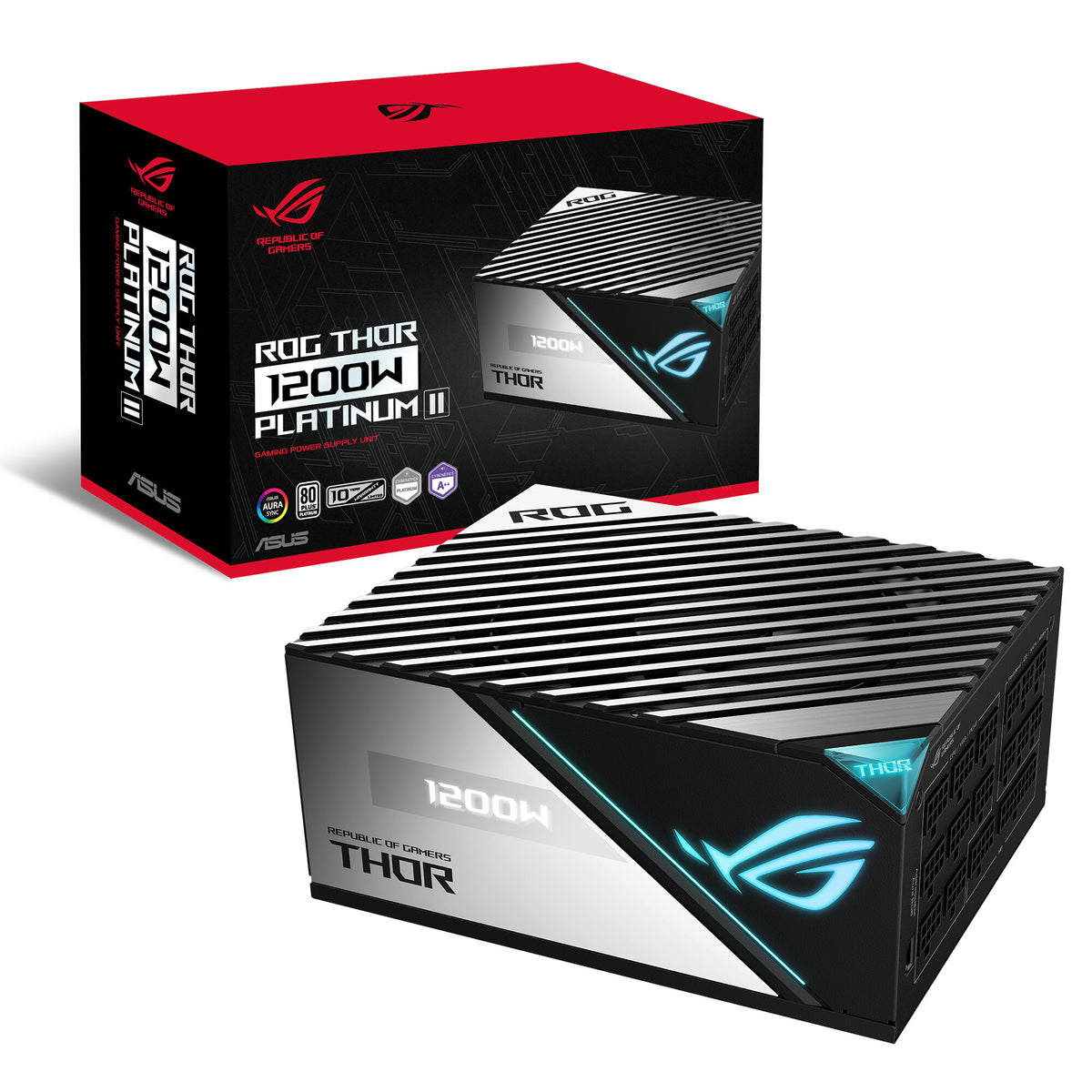

| Package type |
Box |
| Package weight |
4.78 kg |
| Package height |
130 mm |
| Package depth |
240 mm |
| Package width |
378 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
