Superior Stability. Next-Level Efficiency

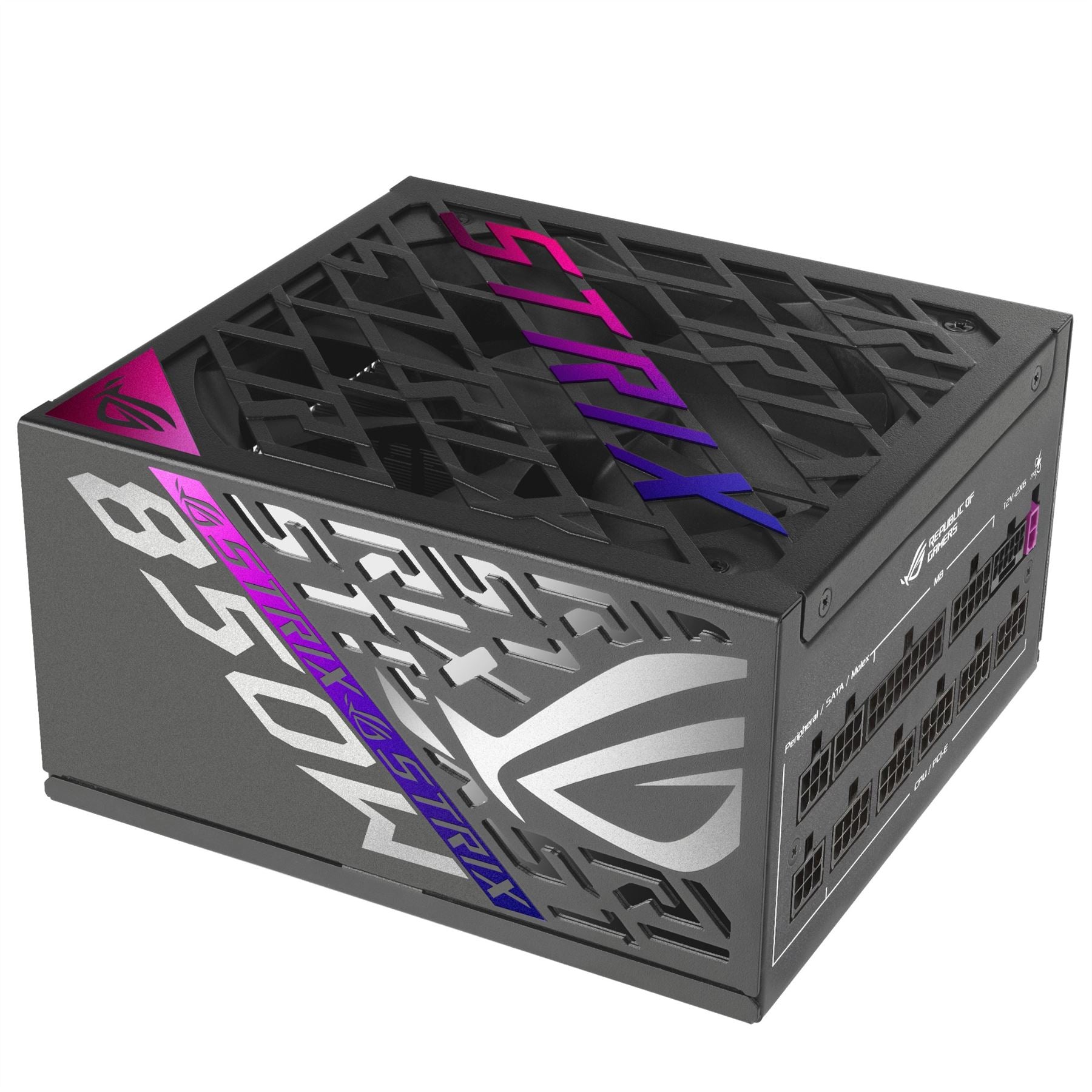

The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The Intelligent Voltage Stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
GaN MOSFET
The ROG Strix Platinum PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
| Cooling |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Semi-passive |
| Design |
| 80 PLUS certification |
80 PLUS Platinum |
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Semi-passive |
| Power |
| Total power |
850 W |
| AC input voltage |
100 - 240 V |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
130 W |
| Combined power (+12V) |
850 W |
| Combined power (+5V) |
130 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
25 A |
| Max output current (+12V) |
70.8 A |
| Max output current (+5V) |
25 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces |
| Motherboard power cable length |
61 cm |
| SATA power cable length |
400,120 mm |
| Peripheral (Molex) power cable length |
400,150 mm |
| PCI Express power cable length |
75 cm |
| CPU power cable length |
100 cm |
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| PCI Express power connectors (6+2 pin) |
3 |
| CPU power connector (4+4 pin) |
Yes |
| Cabling type |
Fully-Modular |
| PCI Express power connectors (16-pin) |
1 |
| Performance |
| Power supply unit (PSU) form factor |
ATX |
| Silent mode |
Yes |
| 80 PLUS certification |
80 PLUS Platinum |
| Purpose |
PC |
| ATX version |
3.1 |
| Mean time between failures (MTBF) |
120000 h |
| Packaging content |
| Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions |
| Width |
160 mm |
| Depth |
150 mm |
| Height |
86 mm |
| Weight |
1.78 kg |
| Packaging data |
| Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
| Package depth |
200 mm |
| Package width |
320 mm |
| Package height |
108 mm |
| Package type |
Box |
| Package weight |
2.8 kg |
| Technical details |
| Compliance certificates |
RoHS |
| Certificates |
| 80 PLUS certification |
80 PLUS Platinum |
