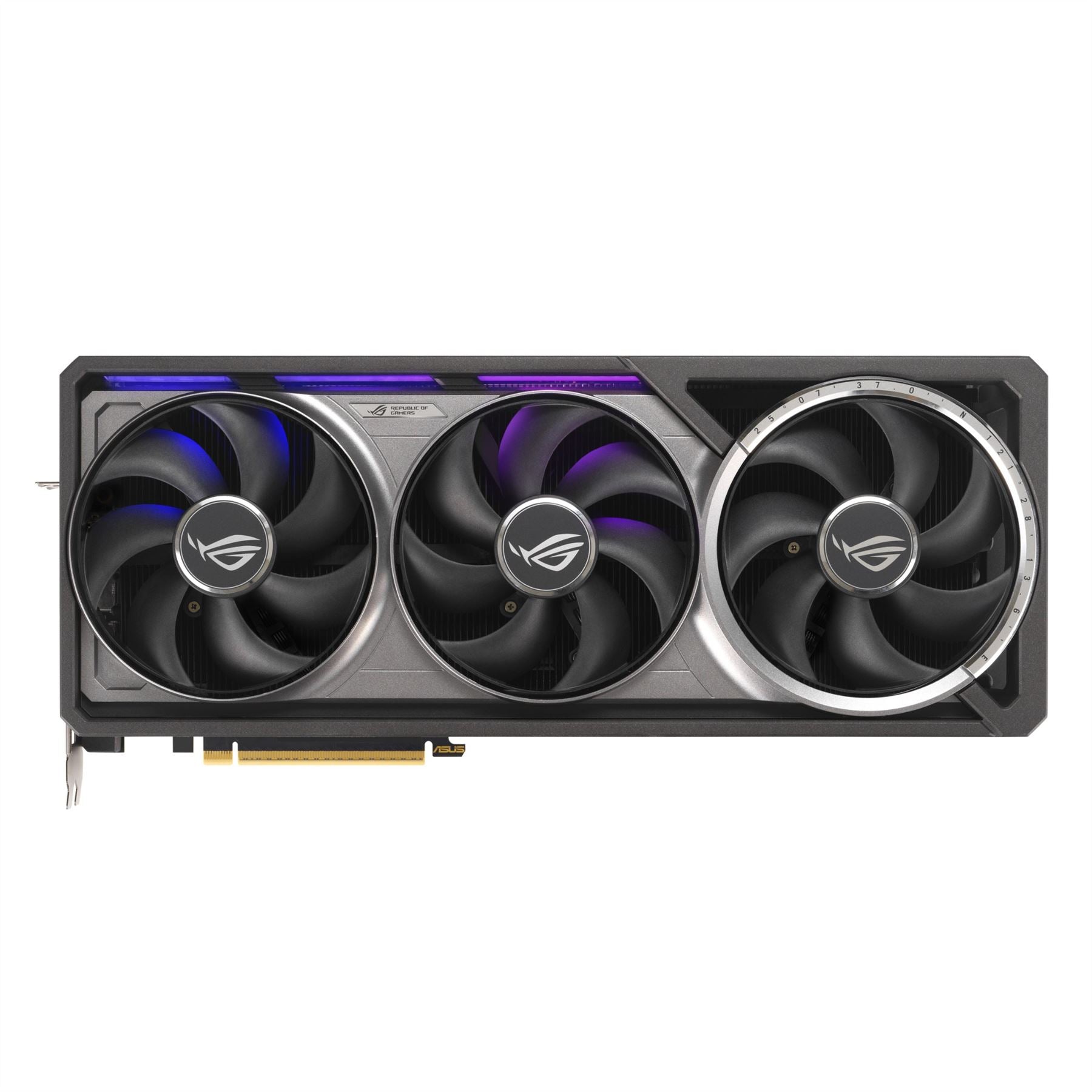

The Final Frontier The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Engineered for Excellence Driven by a passion for innovation and the pursuit of precision, we crafted the ROG Astral. Inspired by the universe’s wonders, it blends art and technology, achieving stellar cooling and unmated performance.
Indirect Aura Lighting ARGB lighting allows for personalized setting.
Fan Design Four axial tech fan design enhances airflow for optimal cooling.
Cooling Expertise Quad-Fan Force A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.
Optimized Fin Spacing The addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.
Patented Vapor Chamber A patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.
MaxContact Design MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal Pad By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Unmatched Reliability
Premium Power Delivery Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.
ASUS GPU Guard & Bracket ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB Coating A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto−Extreme Technology An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultra Rigid Metal Case A high-quality diecast frame, shroud, and backplate tightly brace the PCB for rigidity, and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable mounting.
Game Friendly GPU Tweak III: Effortless GPU Monitoring and Tuning
FanConnect II Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Dual BIOS Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.
Perfect PSU for the GeForce RTX 50 Series Patented “GPU-First” Intelligent Voltage Stabilizer Pair with the ROG Thor III and ROG Strix Platinum Series PSU and enjoy reliable power for your graphics card. GPU-First enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios, helping to ensure peak performance for a more consistent gaming experience. Additionally, the integration of a GaN MOSFET boosts power efficiency by up to 30%.
Processor
Graphics processor family
NVIDIA
Parallel processing technology support
Not supported
Maximum displays per videocard
4
CUDA cores
10752
CUDA
Yes
Maximum resolution
7680 x 4320 pixels
Graphics processor
GeForce RTX 5080
Memory
Discrete graphics card memory
16 GB
Memory bandwidth (max)
30 GB/s
Memory bus
256 bit
Graphics card memory type
GDDR7
Ports & interfaces
HDMI version
2.1b
Mini HDMI ports quantity
0
Mini DisplayPorts quantity
0
HDMI ports quantity
2
DisplayPort version
2.1a
DVI-I ports quantity
0
DVI-D ports quantity
0
DisplayPorts quantity
3
Interface type
PCI Express 5.0
Thunderbolt 3 ports quantity
0
Video
OpenGL version
4.6
HDMI version
2.1b
HDCP
Yes
Dual Link DVI
No
CUDA cores
10752
Performance
NVIDIA G-SYNC
Yes
Virtual Reality (VR) ready
Yes
OpenGL version
4.6
HDCP
Yes
Dual Link DVI
No
TV tuner integrated
No
HDCP version
2.3
NPU performance up to
1801 TOPs
Design
Number of fans
4 fan(s)
Illumination colour
Multi
Illumination
Yes
Cooling type
Active
Form factor
Full-Height/Full-Length (FH/FL)
Product colour
Grey
Number of slots
3.8
Cooling technology
ASUS Axial-tech
Power
Supplementary power connectors
1x 16-pin
Minimum system power supply
850 W
Weight & dimensions
Number of slots
3.8
Height
76 mm
Depth
149.3 mm
Length
357.6 mm
Technical details
Cooling type
Active
Form factor
Full-Height/Full-Length (FH/FL)
Product colour
Grey
TV tuner integrated
No
System requirements
Minimum system power supply
850 W
Packaging data
Package type
Box
