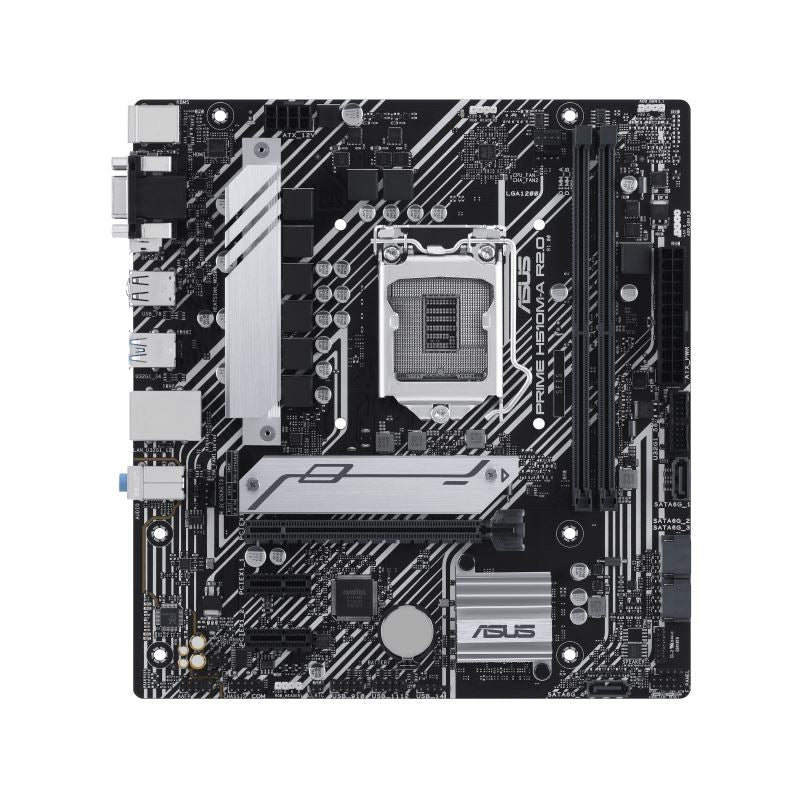

H510M-A R2.0
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
COOLING
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
| Internal I/O |
| Number of M.2 (M) slots |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Audio connector |
Yes |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
2 |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| RGB LED pin header |
Yes |
| Technical details |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H510 |
| Supported processor sockets |
LGA 1200 (Socket H5) |
| Parallel processing technology support |
Not supported |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Audio |
| Audio output channels |
7.1 channels |
| Performance |
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Windows operating systems supported |
Windows 10 x64 |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H510 |
| Supported processor sockets |
LGA 1200 (Socket H5) |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion card interfaces |
| Audio connector |
Yes |
| Processor |
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets |
LGA 1200 (Socket H5) |
| Processor socket |
LGA 1200 (Socket H5) |
| Memory |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory |
64 GB |
| Unbuffered memory |
Yes |
| Supported memory clock speed (max) |
3200 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
5 |
| Graphics |
| Parallel processing technology support |
Not supported |
| Rear panel I/O ports |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
1 |
| Line-in |
Yes |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
| Windows operating systems supported |
Windows 10 x64 |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H510 |
| Supported processor sockets |
LGA 1200 (Socket H5) |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
| BIOS type |
UEFI AMI |
| BIOS memory size |
128 Mbit |
| Packaging data |
| Package width |
260 mm |
| Package depth |
270 mm |
| Package height |
51.5 mm |
| Package weight |
1.03 kg |
| Software |
| Windows operating systems supported |
Windows 10 x64 |
| Weight & dimensions |
| Package width |
260 mm |
| Package depth |
270 mm |
| Package height |
51.5 mm |
| Package weight |
1.03 kg |
| Width |
226 mm |
| Depth |
211 mm |
| Packaging content |
| Cables included |
SATA |
| Other features |
| Package width |
260 mm |
| Package depth |
270 mm |
| Package height |
51.5 mm |
| Package weight |
1.03 kg |
