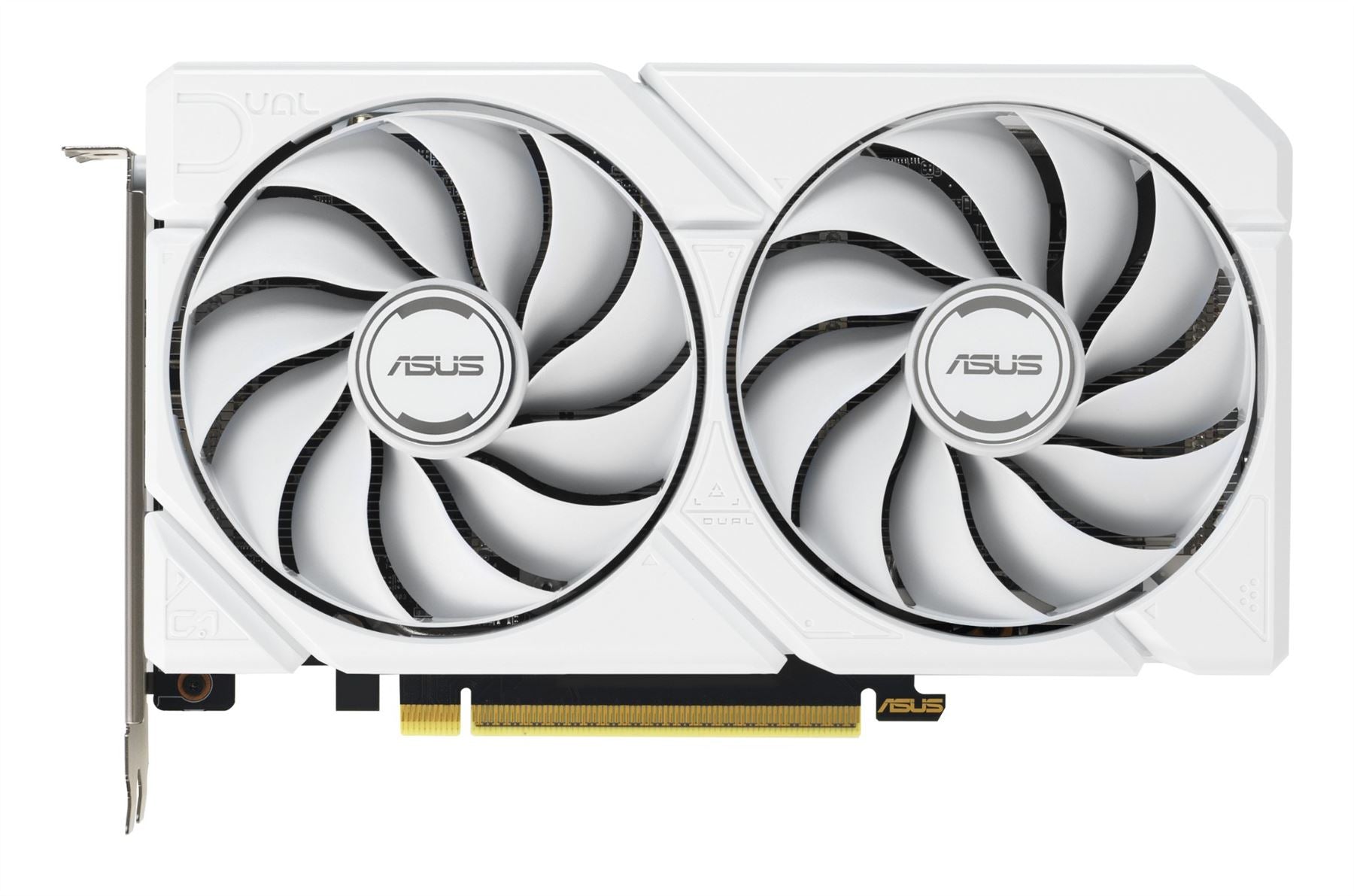

Dual Fans, Perfect Fit ASUS Dual Radeon™ RX 9060 XT White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling 2.5-slot Design A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.
Dual Ball Fan Bearings Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Vented Backplate A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Unmatched Reliability
ASUS GPU Guard ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.
Protective Backplate The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
Stainless Steel Bracket The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that's harder and more resistant to corrosion.
Engineering
Dual BIOS Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
Auto−Extreme Technology Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
Processor
Graphics processor family
AMD
Parallel processing technology support
Not supported
Maximum displays per videocard
3
CUDA
No
Graphics processor
Radeon RX 9060 XT
Processor boost clock speed (OC mode)
3250 MHz
Processor boost clock speed (Gaming mode)
2620 MHz
Memory
Discrete graphics card memory
16 GB
Data transfer rate
20 Gbit/s
Graphics card memory type
GDDR6
Ports & interfaces
HDMI ports quantity
1
DVI-I ports quantity
0
DVI-D ports quantity
0
DisplayPorts quantity
2
Interface type
PCI Express 5.0
Video
Dual Link DVI
No
Performance
Dual Link DVI
No
TV tuner integrated
No
Design
Number of fans
2 fan(s)
Cooling type
Active
Form factor
Full-Height/Half-Length (FH/HL)
Product colour
White
Number of slots
2.5
Cooling technology
ASUS Axial-tech
Weight & dimensions
Number of slots
2.5
Weight
601 g
Height
120 mm
Depth
49 mm
Length
202 mm
Technical details
Cooling type
Active
Form factor
Full-Height/Half-Length (FH/HL)
Product colour
White
TV tuner integrated
No
Packaging data
Package type
Box
Package width
364 mm
Package height
66 mm
Package depth
217 mm
Package weight
1.09 kg
