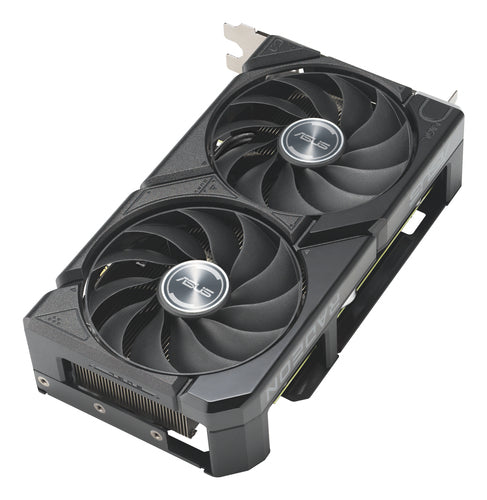

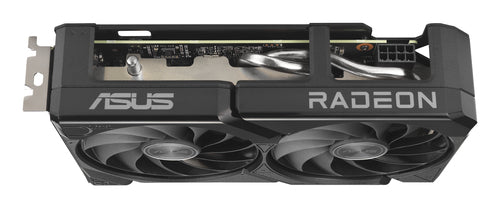

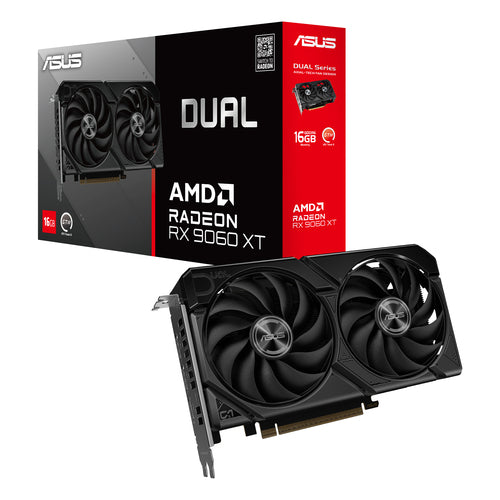

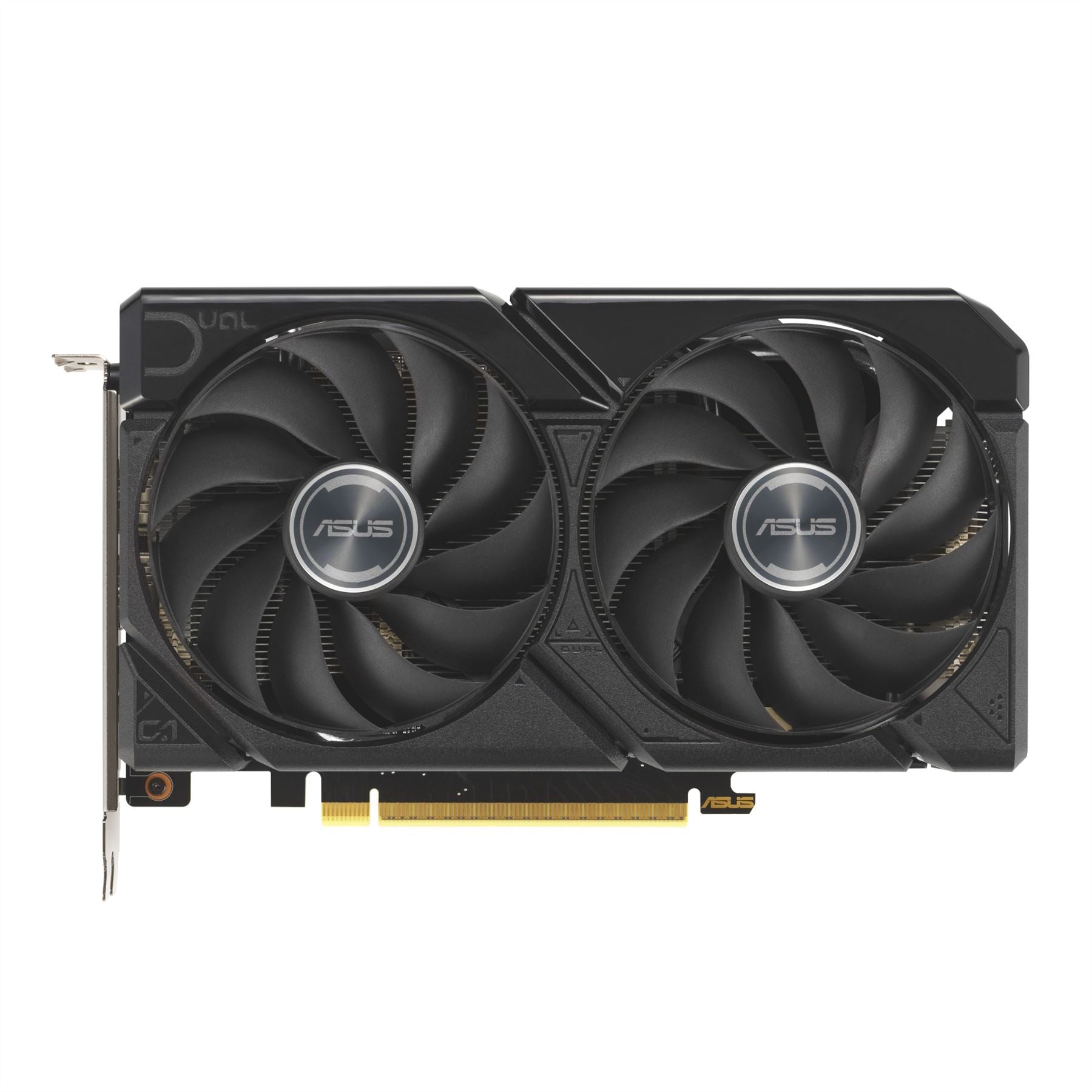

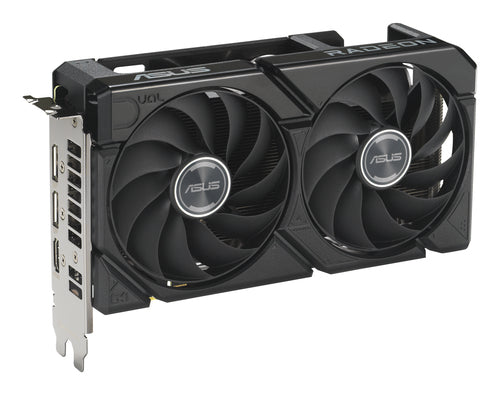

Dual Radeon™ RX 9060 XT
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

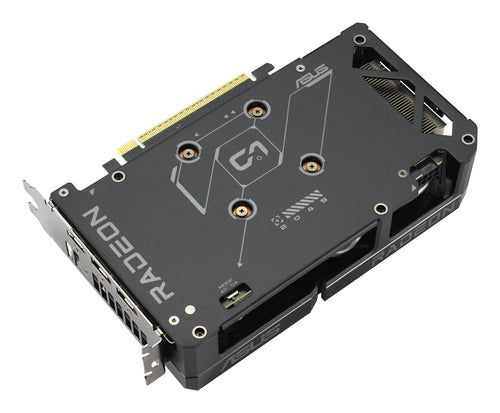

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Unmatched Reliability
ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

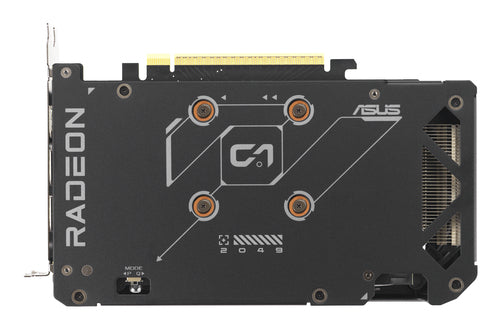

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

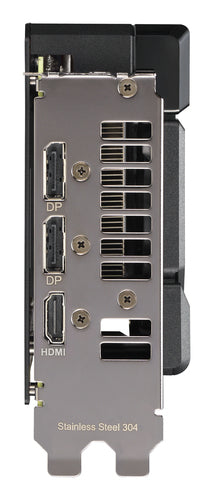

Stainless Steel Bracket
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that's harder and more resistant to corrosion.
Engineering
Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
| Processor |
| Graphics processor family |
AMD |
| Processor boost clock speed |
3230 MHz |
| Stream processors |
2048 |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
3 |
| CUDA |
No |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 9060 XT |
| Processor boost clock speed (OC mode) |
3250 MHz |
| Processor boost clock speed (Gaming mode) |
2640 MHz |
| Memory |
| Discrete graphics card memory |
16 GB |
| Data transfer rate |
20 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Ports & interfaces |
| HDMI version |
2.1b |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1a |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
2 |
| Interface type |
PCI Express 5.0 |
| Video |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| Performance |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.3 |
| Design |
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Product colour |
Black |
| Number of slots |
2.5 |
| Cooling technology |
ASUS Axial-tech |
| SFF ready |
Yes |
| Software |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Power |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| Weight & dimensions |
| Number of slots |
2.5 |
| Height |
120 mm |
| Depth |
49 mm |
| Length |
202 mm |
| Technical details |
| Cooling type |
Active |
| Product colour |
Black |
| TV tuner integrated |
No |
| System requirements |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Minimum system power supply |
550 W |
| Packaging data |
| Package type |
Box |
| Manual |
Yes |
| Packaging content |
| Manual |
Yes |
