AMD X670, 4 x DDR5 DIMM, 256Mb AMI UEFI, 256Mb AMI UEFI, 2.5 Gigabit LAN, IEEE 802.11a/b/g/n/ac/ax, EATX

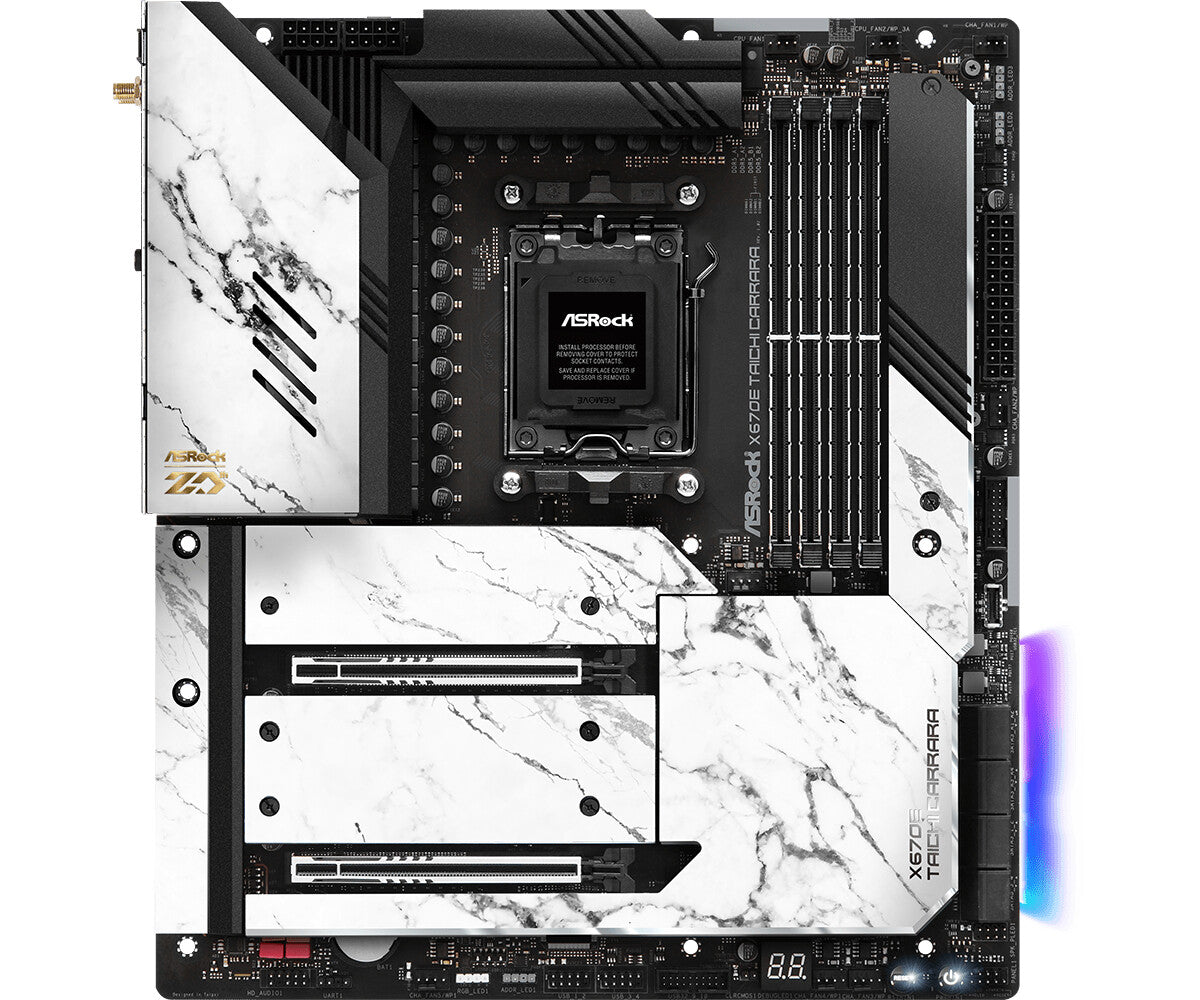

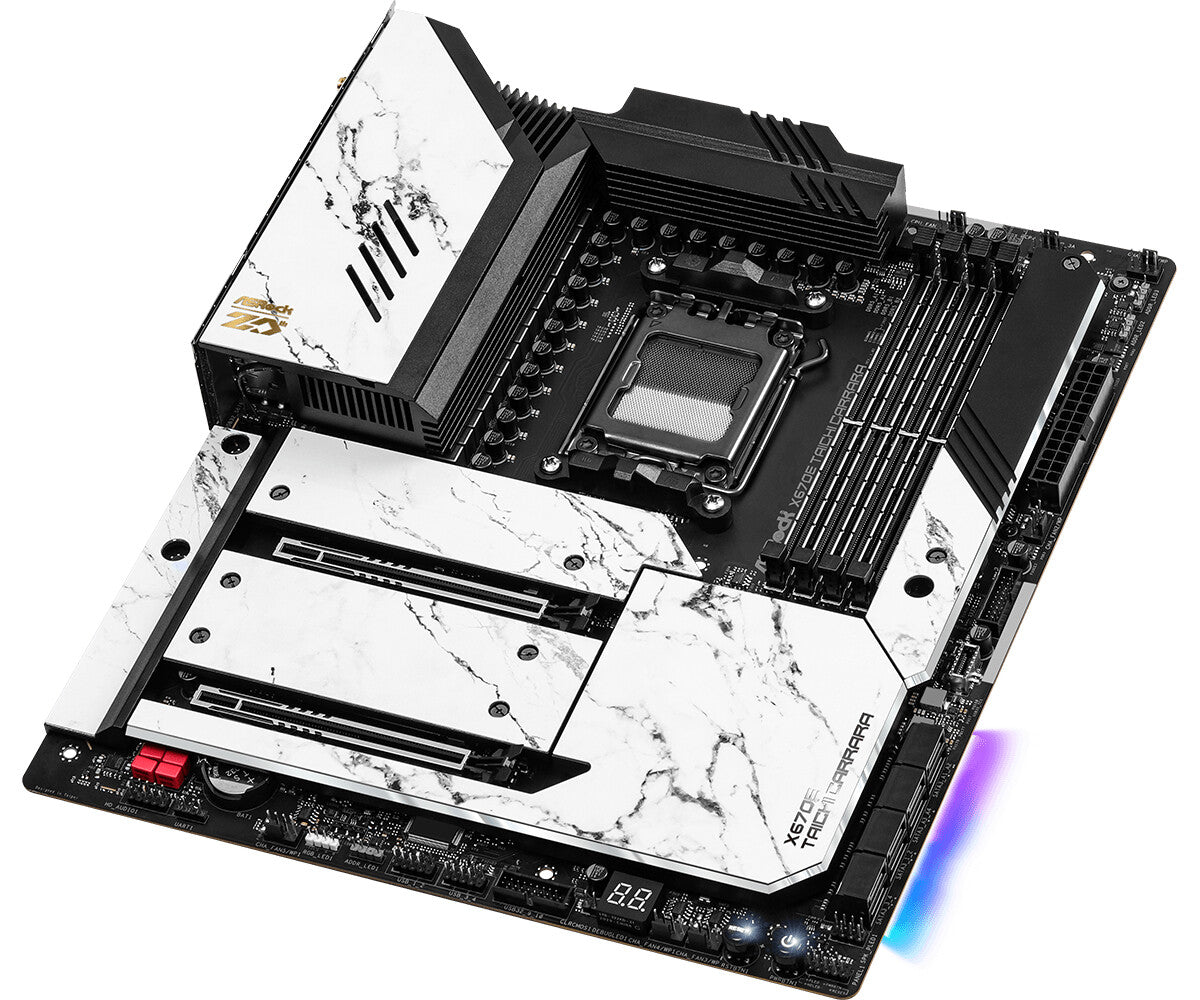

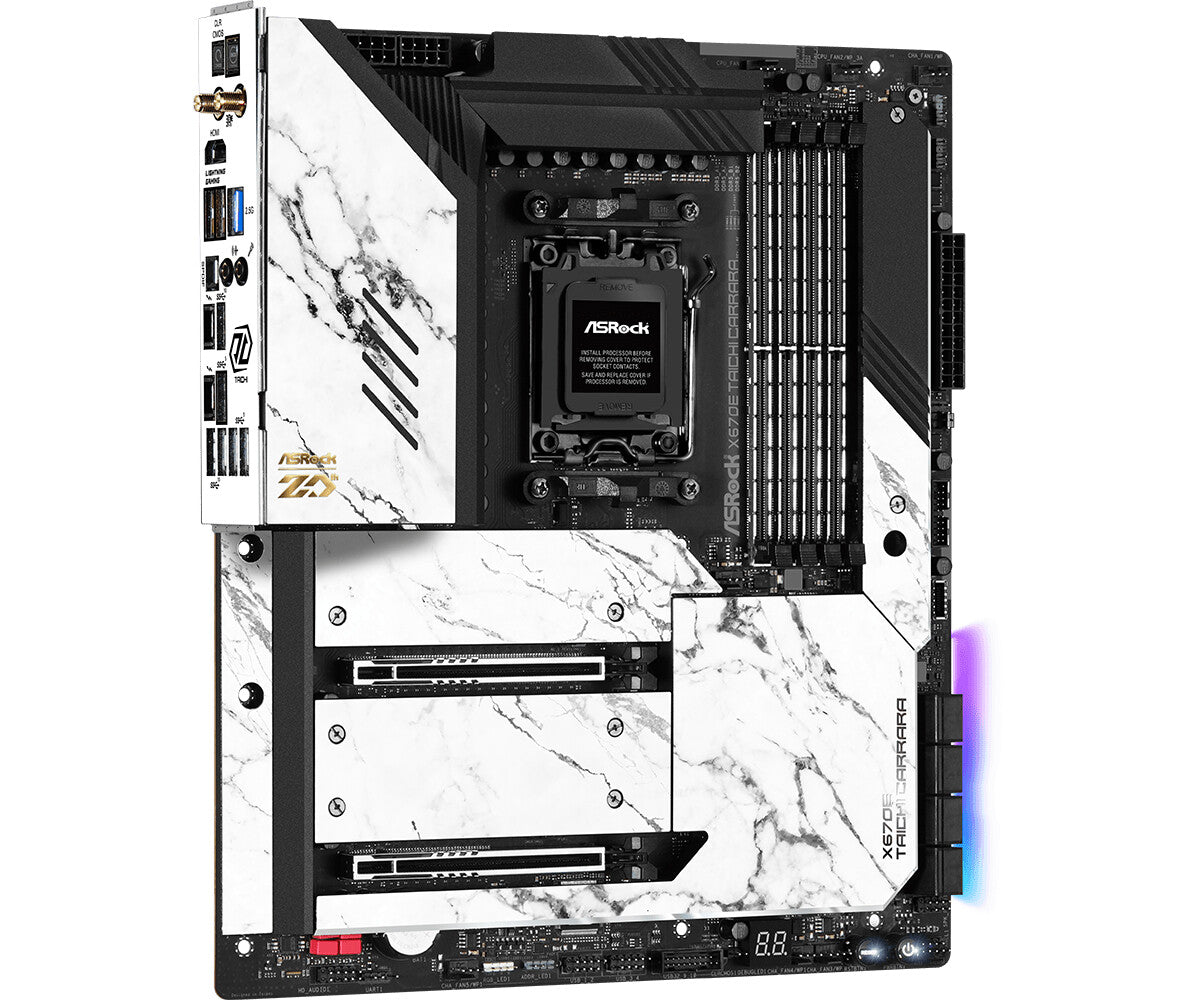

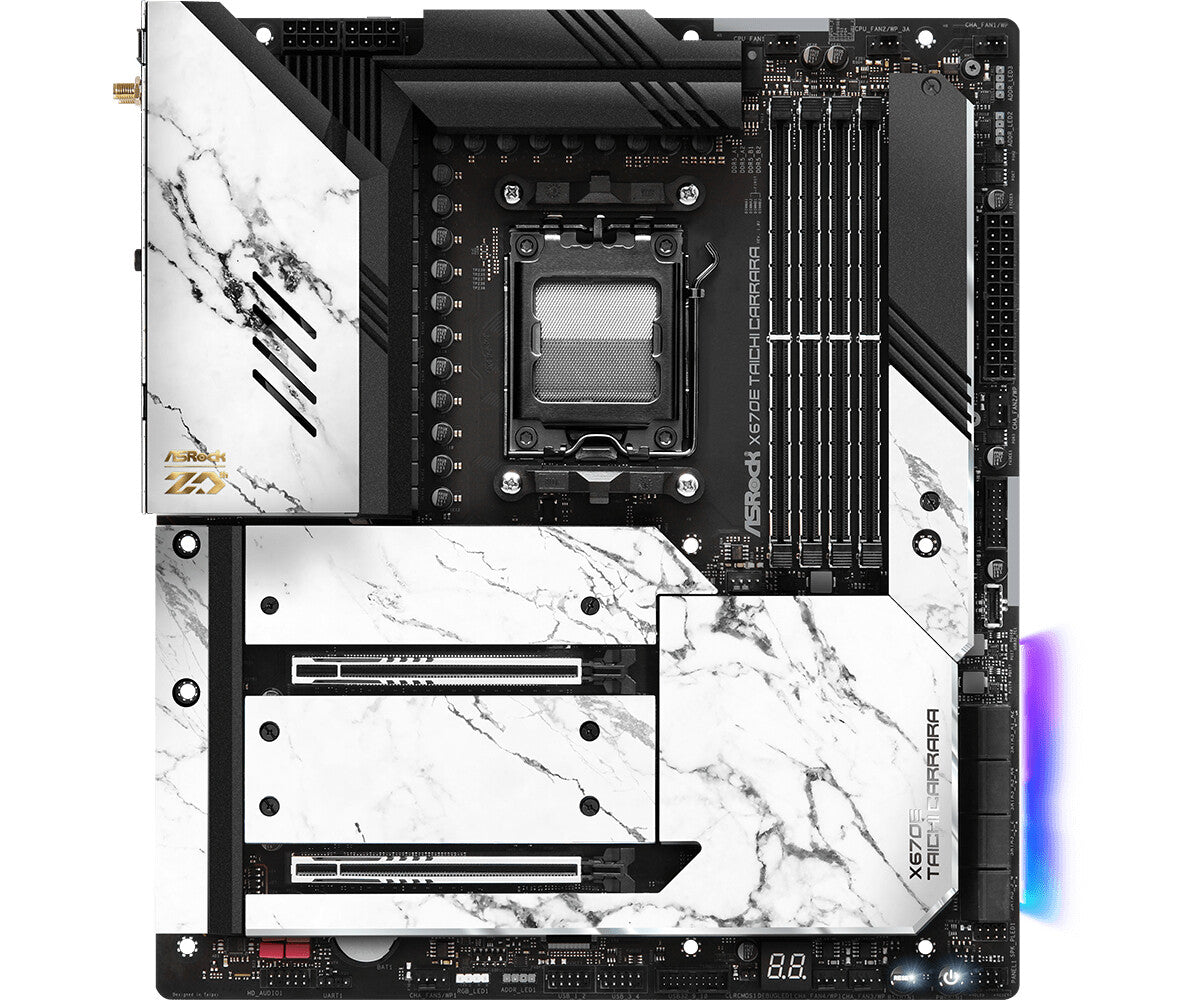

20 Years of Innovation and Goes on! Taichi Carrara resembles the high strength as well as the esthetic of Carrara marble, the key elements while developing this motherboard.

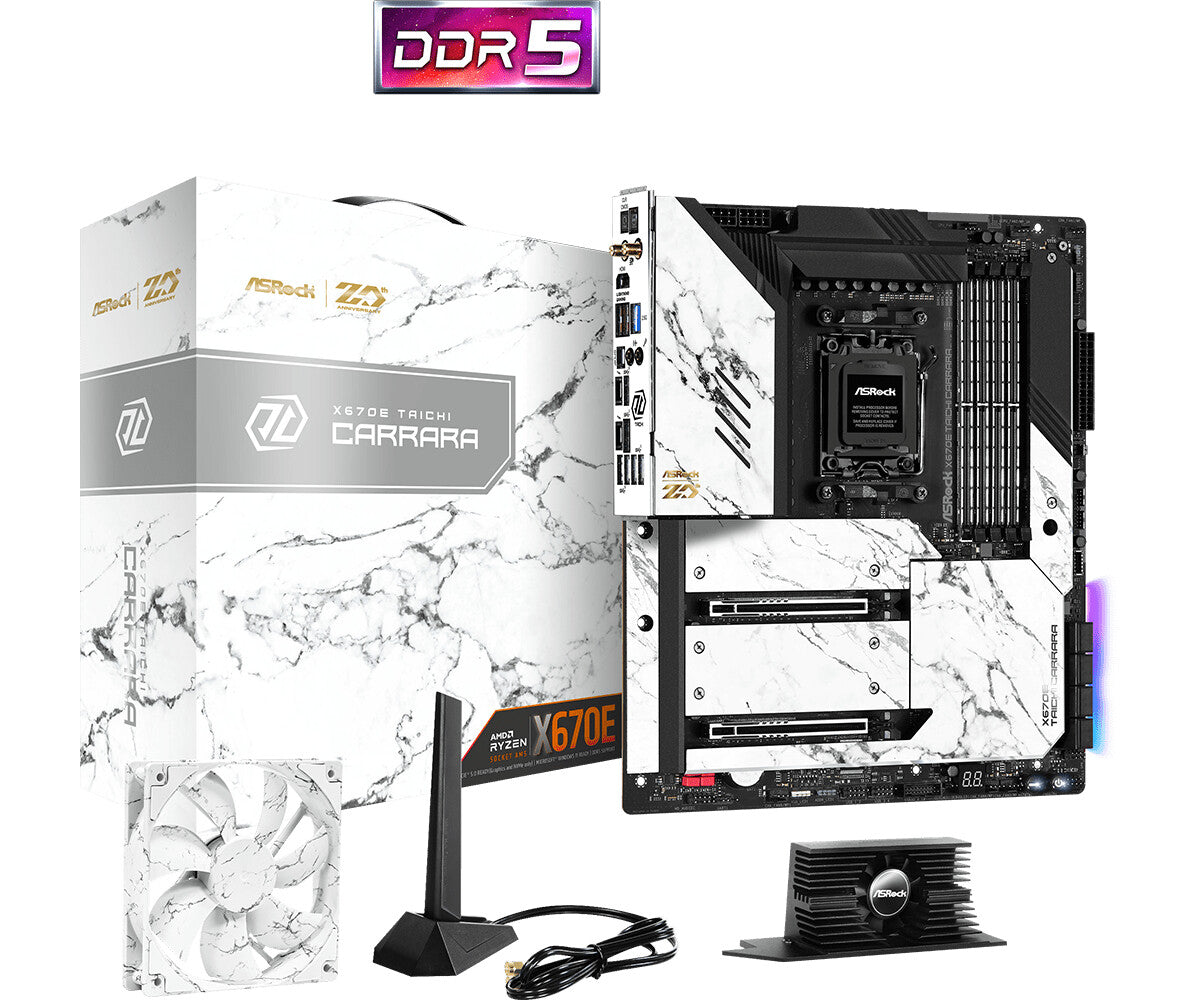

12cm Carrara Edition Cooling Fan
Replace the rear fan to give you a consistent carrara style appearance with motherboard.
- 800 - 2500 RPM
- 76.21 CFM
- 2 ball bearing
Composite VRM Heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
| Processor |
|---|
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| Supported storage drive interfaces |
M.2, SATA III |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

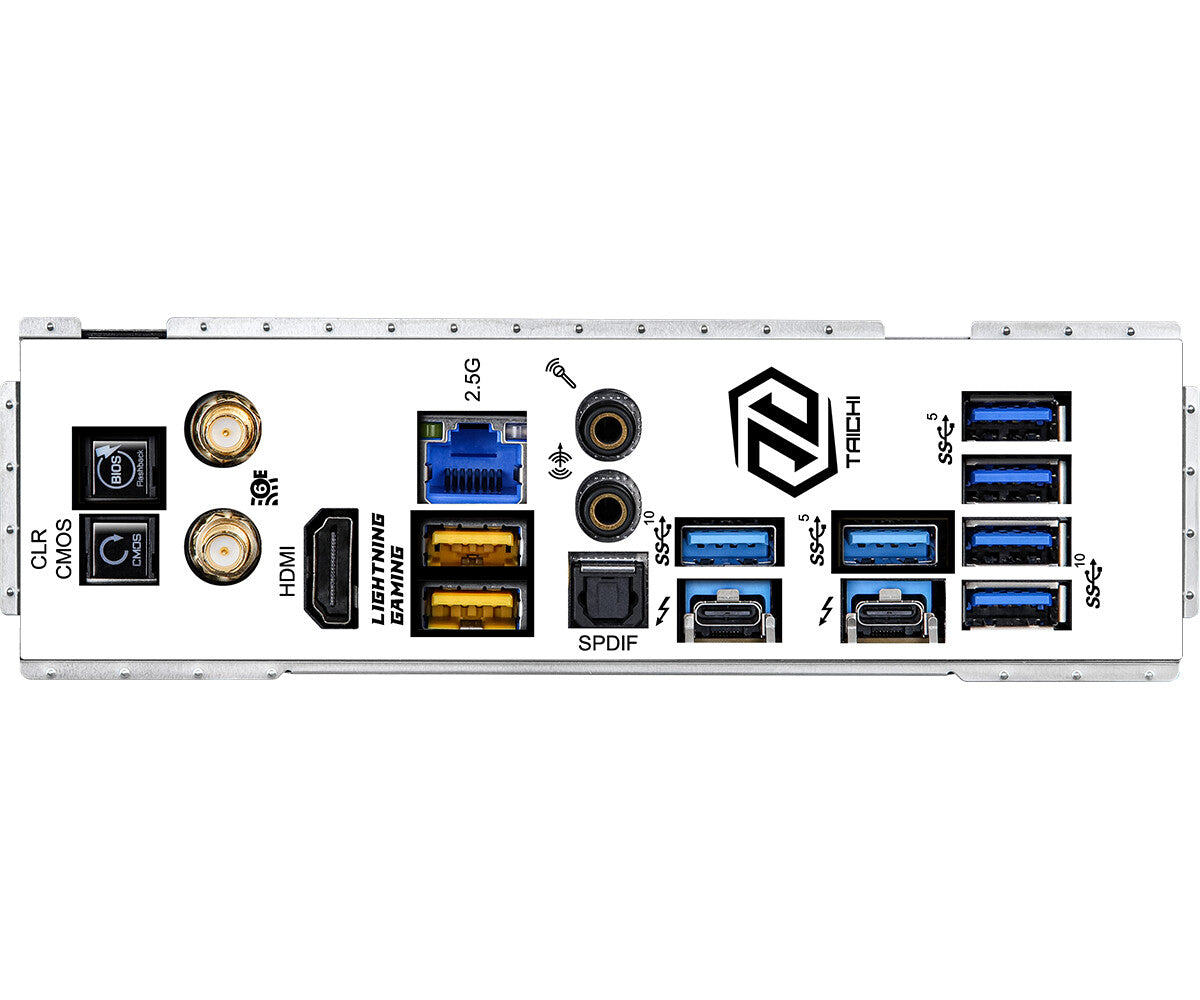

| Rear panel I/O ports |
|---|
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Network |
|---|
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| LAN controller |
Killer E3100G |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Audio output channels |
5.1 channels |
| Audio chip |
Realtek ALC4082 |
| Motherboard chipset |
AMD X670 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
Extended ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| BIOS |
|---|
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
|---|
| Depth |
267 mm |
| Width |
305 mm |
