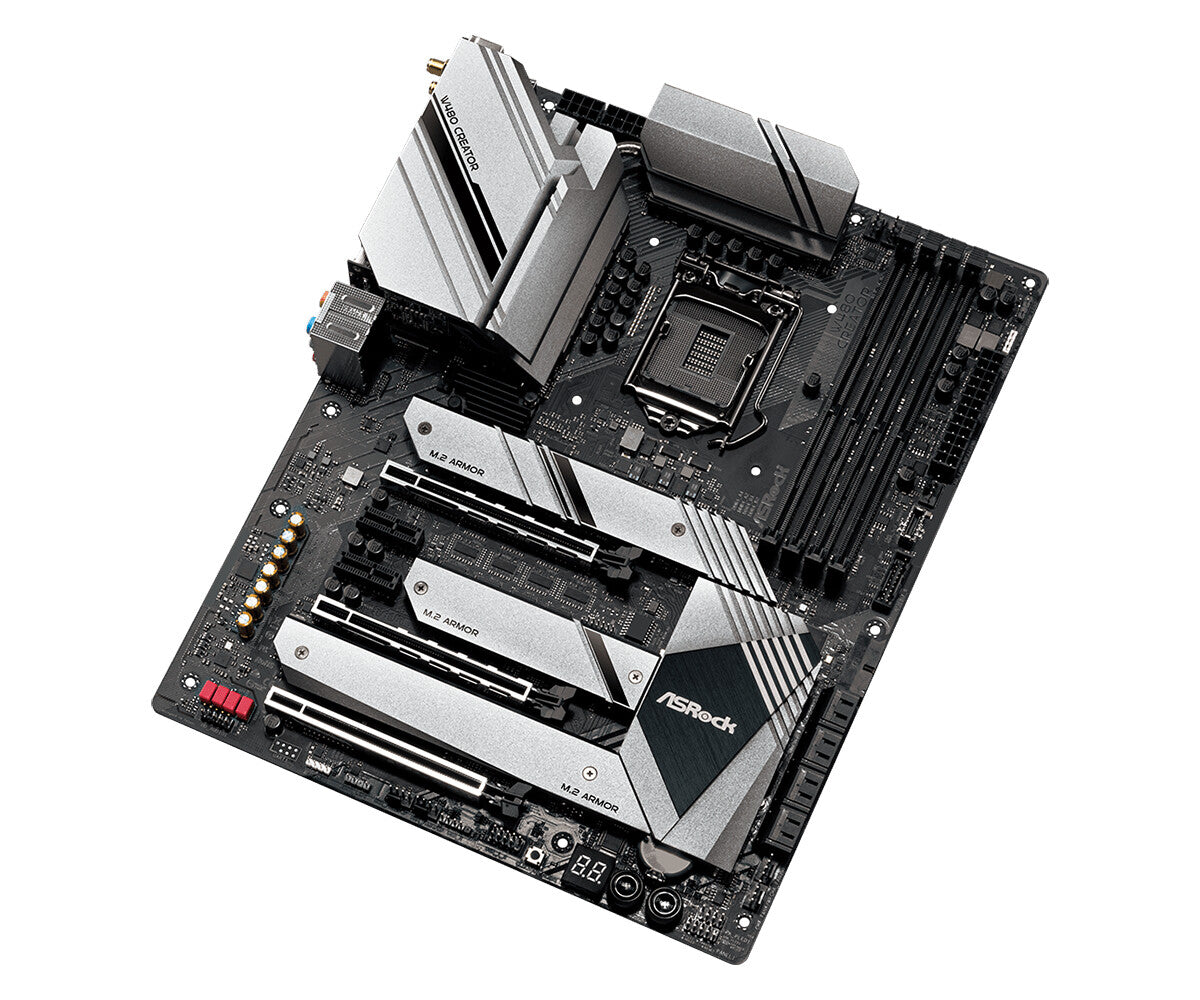

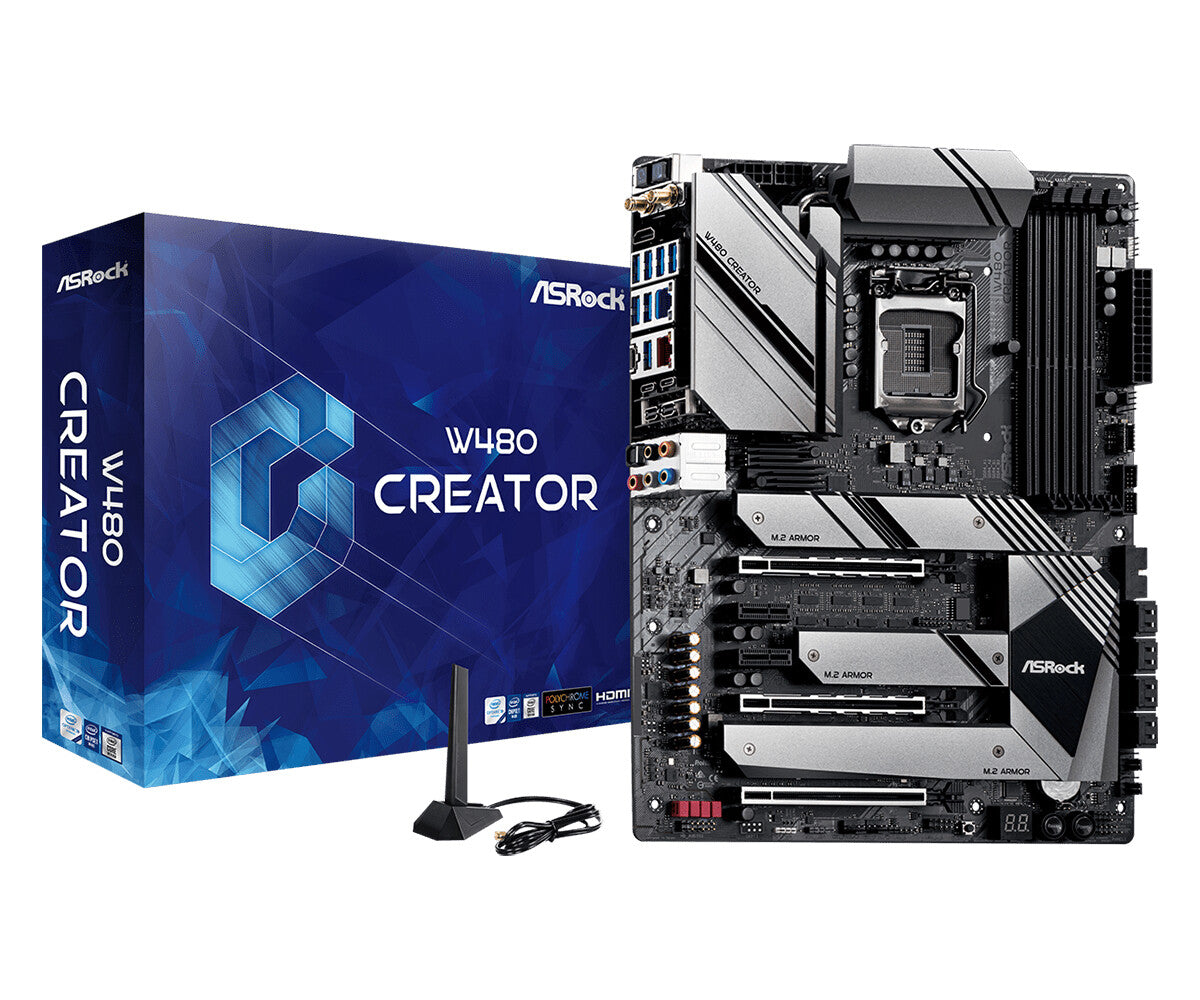

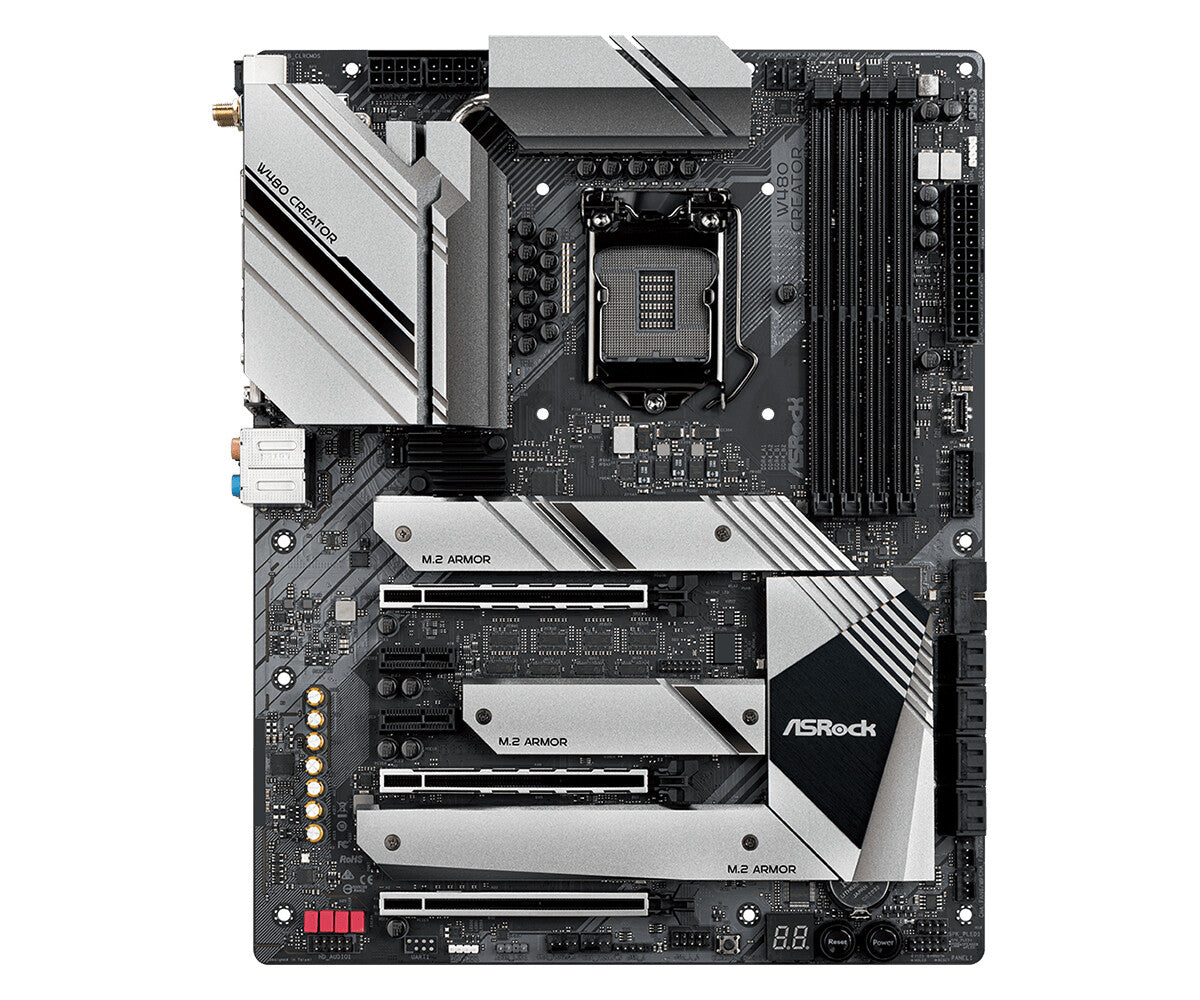

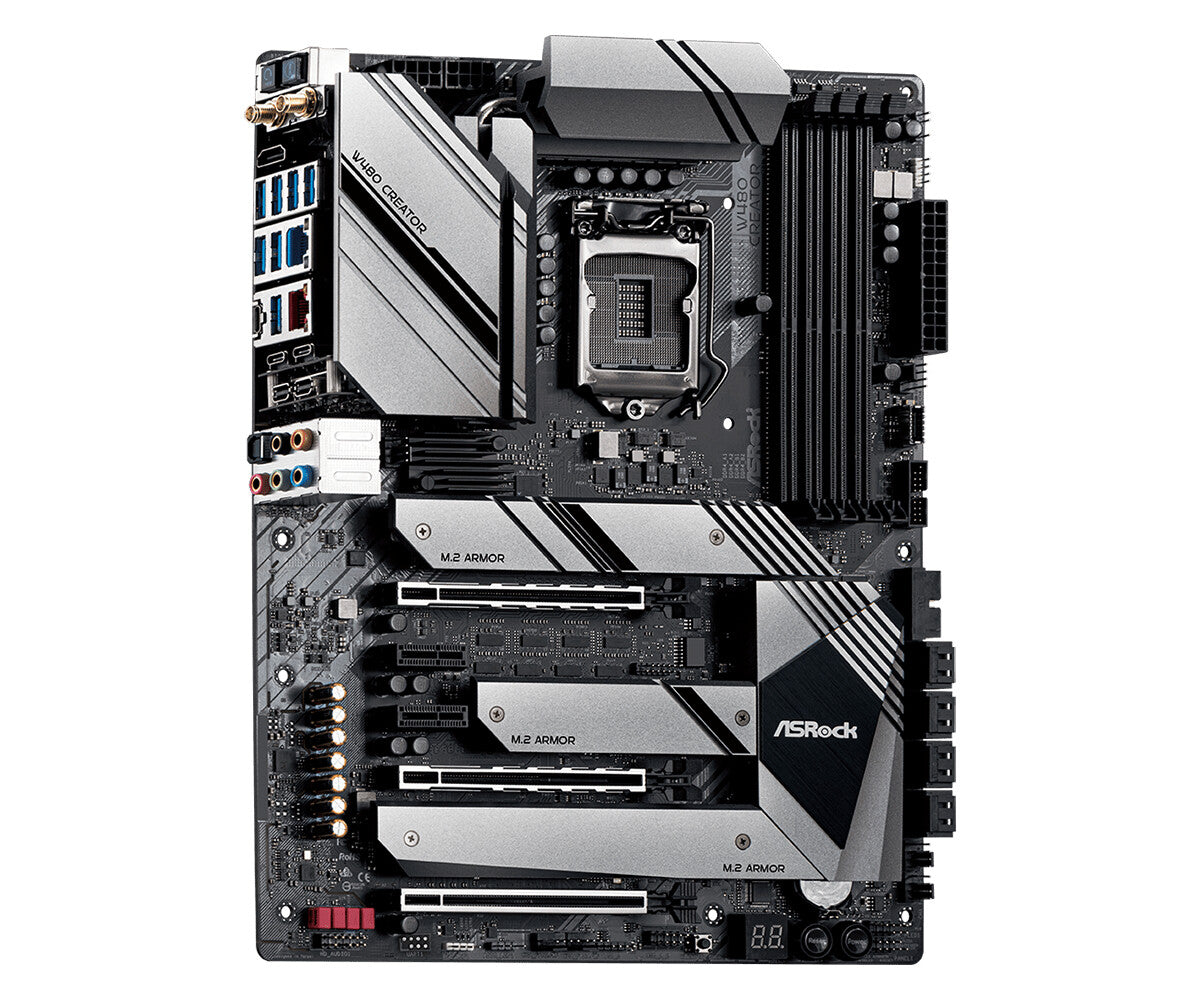

4xDDR4 DIMM slots, AMI UEFI BIOS, 7.1ch audio, Intel W480 chipset, 2.5- and 10-gigabit LAN, Wi-Fi 802.11ax, Bluetooth 5.1
SUPPORTS INTEL XEON PROCESSOR & ECC MEMORY
The W480 Creator motherboard can fully support Intel XEON processors and also ECC memory modules that delivers server-grade performance and rock-solid durability for high-end computing.
ECC MEMORY SUPPORT
ECC (Error-correcting code) is a method of detecting and correcting single-bit memory errors. It’s mission-critical to minimize errors in data especially for the server business and data centers. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules that delivers server-grade performance and rock-solid durability for high-end computing systems, such as scientific or financial computers.
SUPPORTS NVIDIA® QUADRO® PROFESSIONAL GRAPHICS
The W480 Creator fully support NVIDIA® QUADRO® Professional Graphics cards which are designed specifically for artists, designers, providing true firepower for any kind of graphical creation.
THUNDERBOLT™ 3 TECHNOLOGY
The highly desirable reversible Thunderbolt 3 Type-C interface delivers breathtaking 40 Gb/s data transfer speeds and also supports USB PD charging up to 9V@3A (27W).
Built with primo components and out edge technology, ASRock Creator series makes content creation easy and pleasure.
XXL ALUMINUM ALLOY HEATSINK & HEATPIPE DESIGN
Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whale system may perfarm mare stable.
| Processor |
|---|
| Processor cores |
10 |
| Supported processor sockets |
LGA 1200 (Socket H5) |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, Intel Xeon W |
| Processor socket |
LGA 1200 (Socket H5) |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory module capacities |
4GB, 8GB, 16GB, 32GB |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3200,3600,3733,3800,3866,4000,4133,4266,4333,4400,4500,4600 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Discrete graphics support |
Yes |
| DirectX version |
12.0 |
| OpenGL version |
4.5 |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Parallel processing technology support |
3-Way CrossFireX, CrossFireX, Quad-GPU CrossFireX |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Number of chassis fan connectors |
6 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Audio connector |
Yes |
| Total number of SATA connectors |
8 |
| Number of SATA III connectors |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

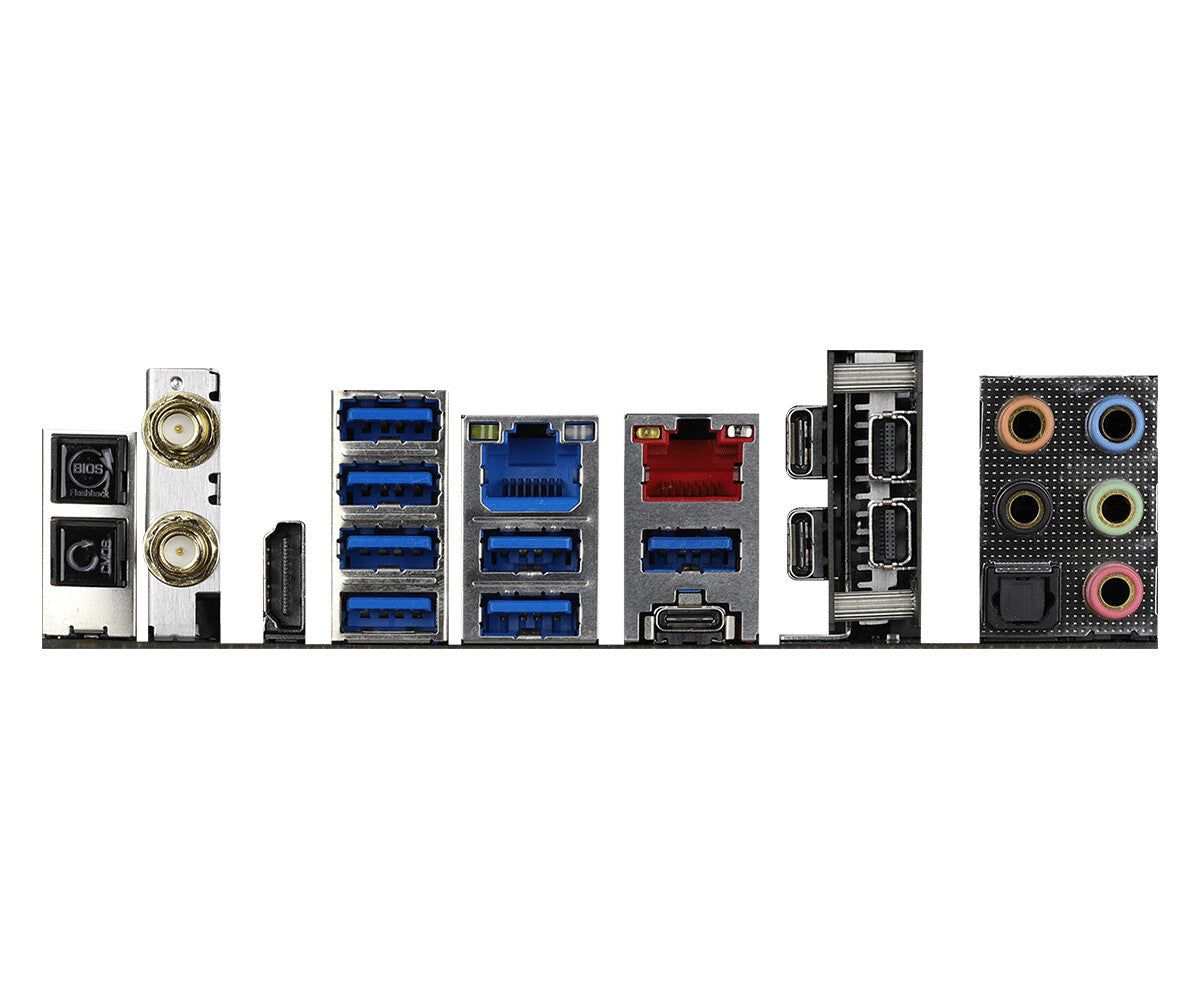

| Rear panel I/O ports |
|---|
| WiFi-AP antenna jack |
2 |
| Network |
|---|
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Aquantia AQC107, Intel I225-LM |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Certification |
FCC, CE, ErP/EuP |
| Windows operating systems supported |
Windows 10 x64 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1220 |
| Motherboard chipset |
Intel W480 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
3 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS button |
Yes |
| ACPI version |
6.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
|---|
| Bundled software |
ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN, AntiVirus Software (Trial Version), Google Chrome Browser, Toolbar |
| Drivers included |
Yes |
| Cables included |
SATA |
