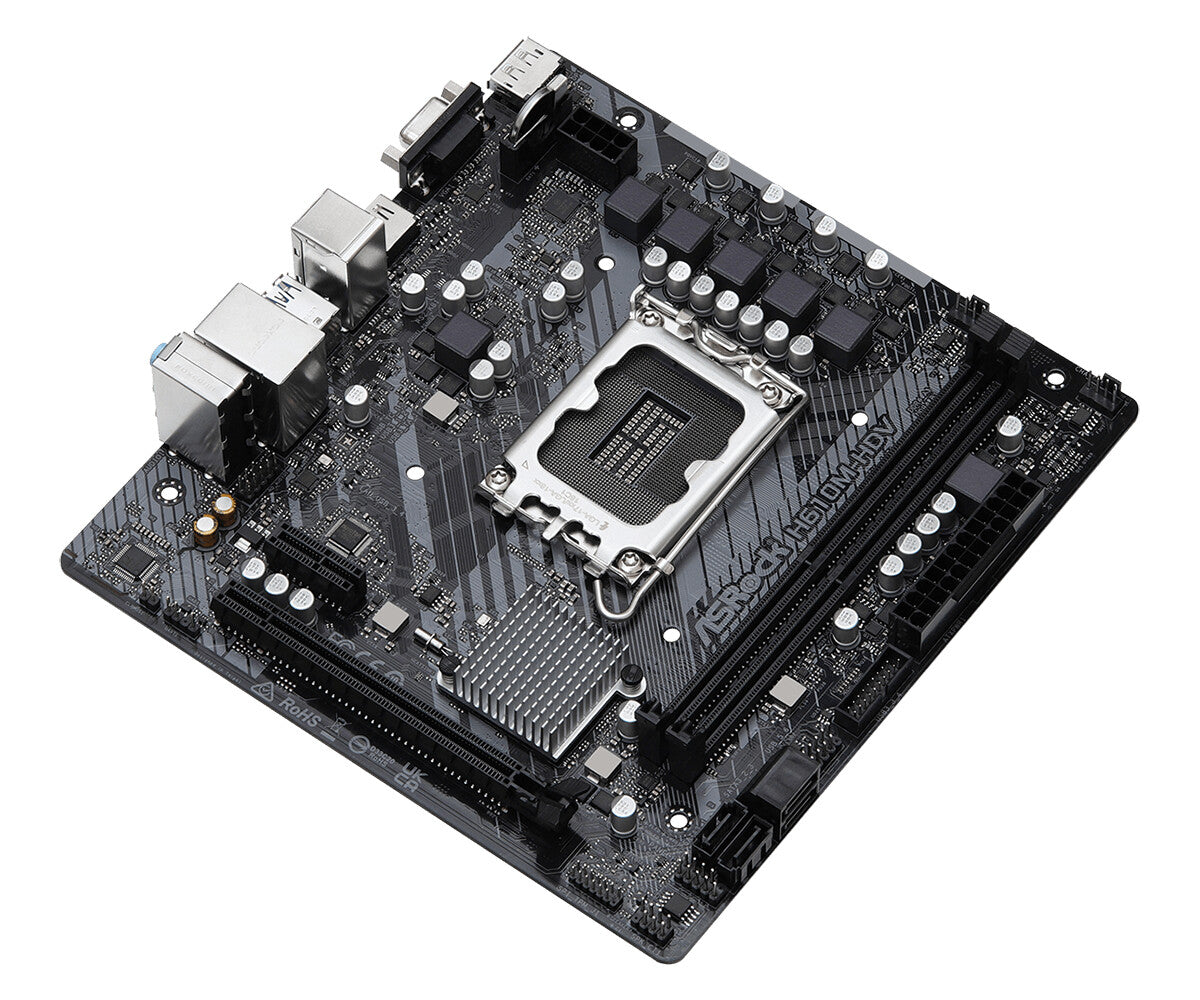

Intel H610, LGA1700, 2x DDR4, 1G LAN, SATA III, USB 3.2, DP, VGA, HDMI, PS/2, Micro ATX, 197x188 mm
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
| Processor |
|---|
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
3200 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| Supported storage drive interfaces |
SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| HDCP |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |

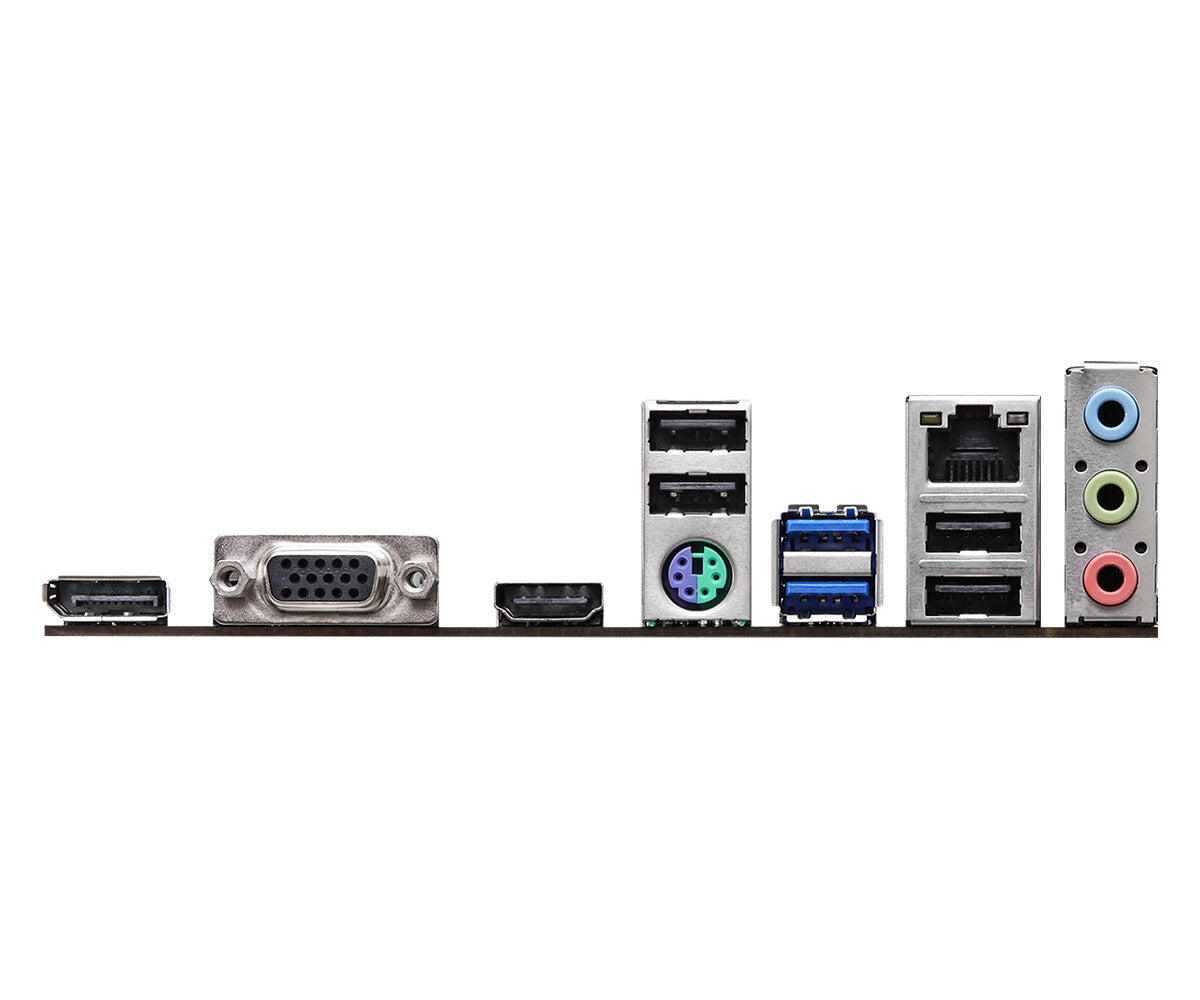

| Rear panel I/O ports |
|---|
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
|---|
| Wi-Fi |
No |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC887 / Realtek ALC897 |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
2.7 |
| ACPI version |
6.0 |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
188 mm |
| Width |
197 mm |
| Packaging content |
|---|
| Drivers included |
Yes |
| Cables included |
SATA |
