Micro ATX, Intel B760, 2 x DDR4 DIMM, 7.1 CH HD Audio, Gigabit LAN
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
| Processor |
|---|
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
3200,4400,5333 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Graphics |
|---|
| HDCP |
Yes |
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
3 |

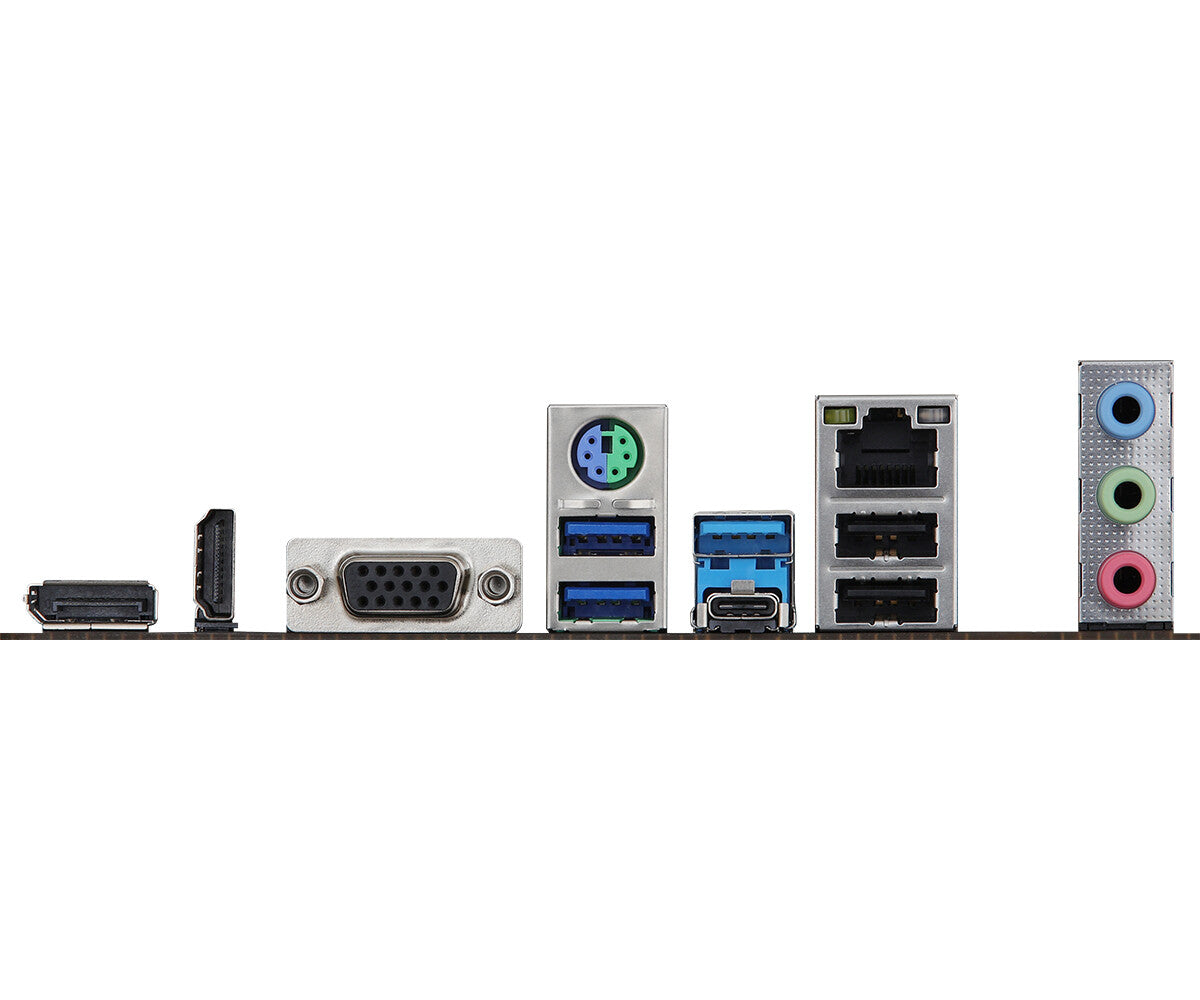

| Rear panel I/O ports |
|---|
| Microphone in |
Yes |
| Line-in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Certification |
- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Windows operating systems supported |
Windows 10 Education x64, Windows 11 x64 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
|---|
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
|---|
| Depth |
201 mm |
| Width |
244 mm |
| Packaging content |
|---|
| Cables included |
SATA |
