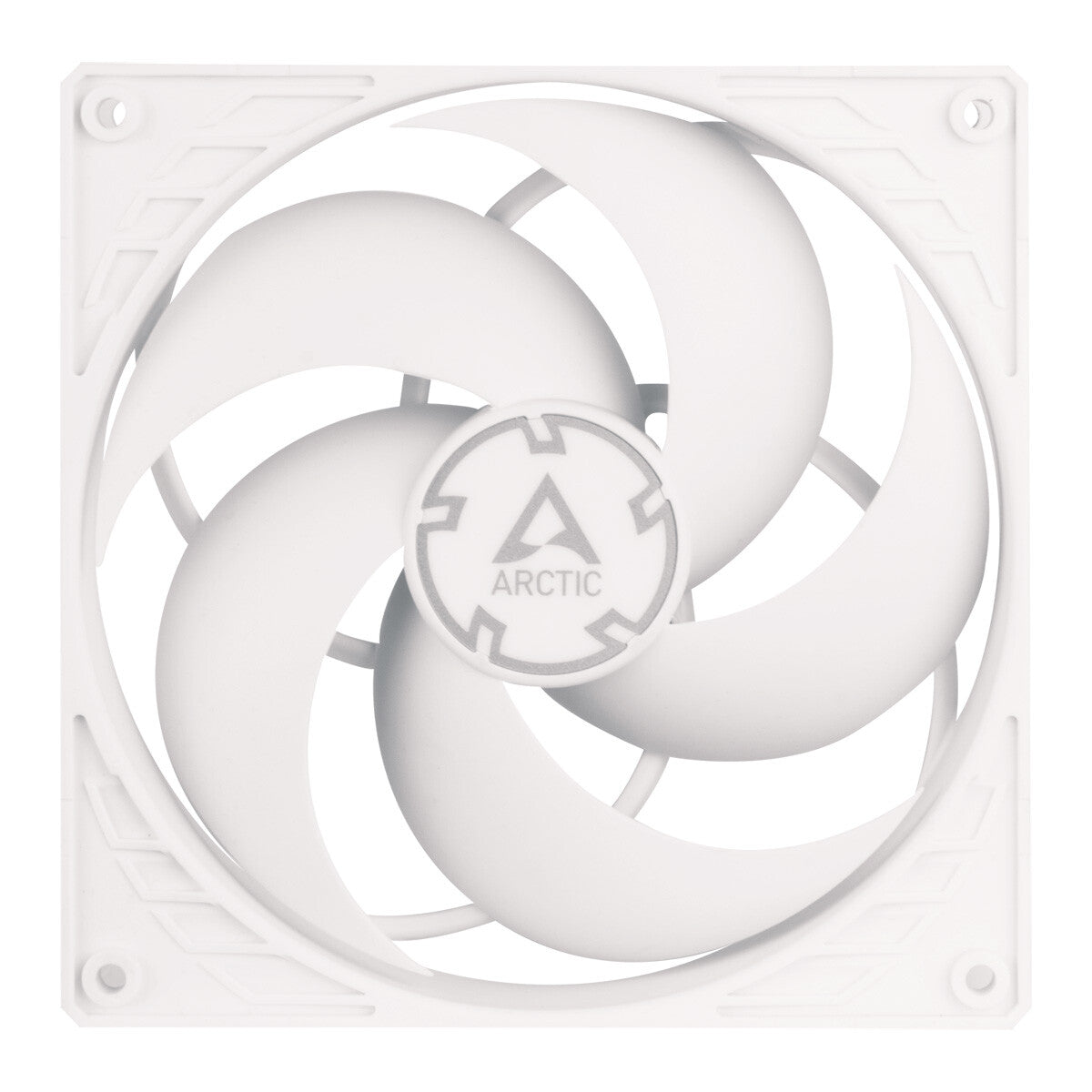

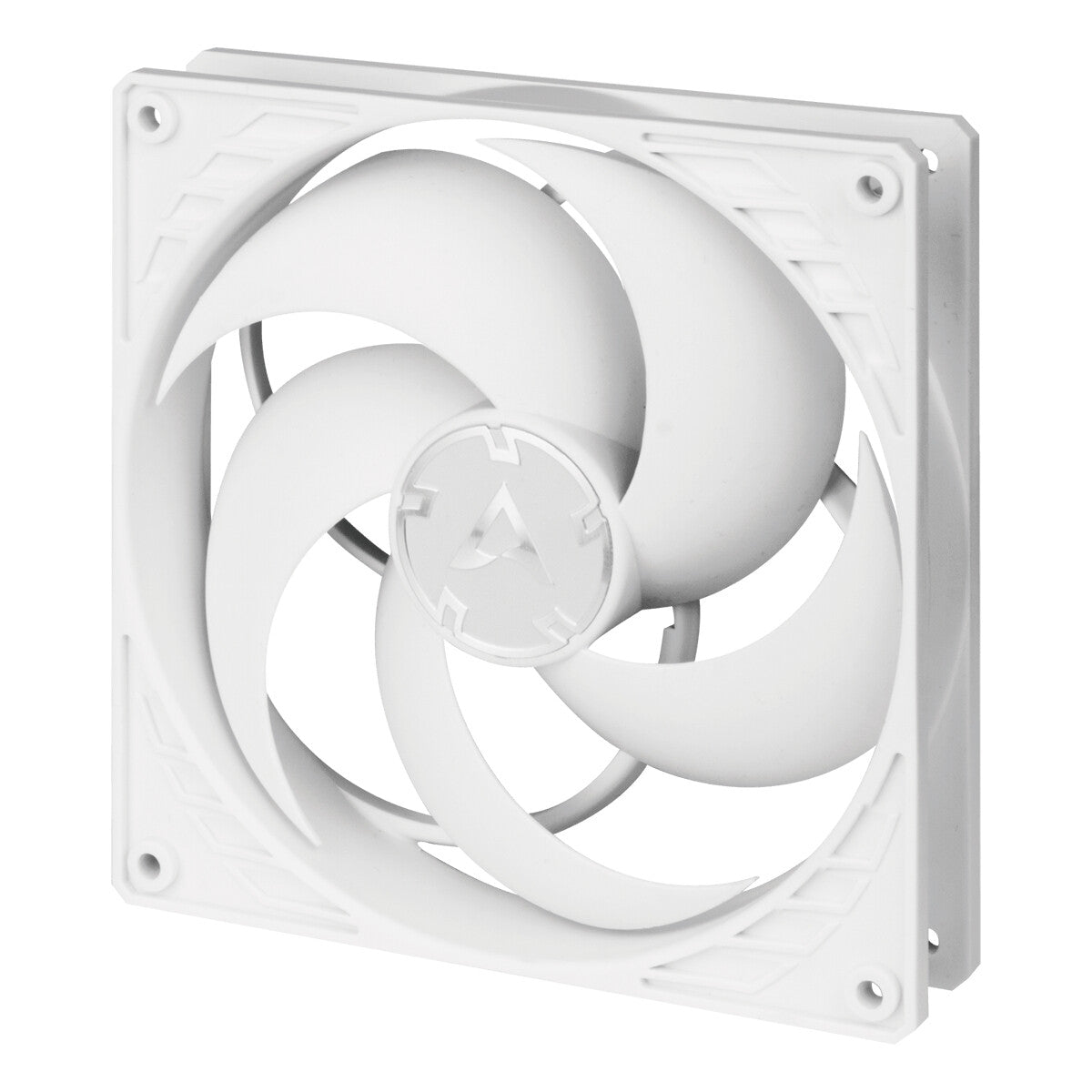

140 mm, 200 - 1700 RPM, PWM, 72.8 CFM, 123.76 m3/h, 12 V DC, 4-pin, 194 g, White
The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
| Performance |
|---|
| Quantity per pack |
1 pc(s) |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
2.4 mmH2O |
| Airflow |
123.76 m³/h |
| Maximum airflow |
72.8 cfm |
| Noise level |
0.3 sone |
| Rotational speed (max) |
1700 RPM |
| Rotational speed (min) |
200 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
14 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
|---|
| Fan connector |
4-pin |
| Number of fan blades |
5 |
| Number of fans |
1 fan(s) |
| Product colour |
White |
| Power |
|---|
| Rated current |
0.12 A |
| Starting voltage |
3.9 V |
| Voltage |
12 V |
| Power consumption (typical) |
1.44 W |
| Weight & dimensions |
|---|
| Package weight |
234 g |
| Package height |
29 mm |
| Package depth |
143 mm |
| Package width |
143 mm |
| Cable length |
0.4 m |
| Weight |
194 g |
| Height |
27 mm |
| Depth |
140 mm |
| Width |
140 mm |
| Packaging content |
|---|
| Number of screws |
4 |
| Screws included |
Yes |
| Package type |
Box |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
