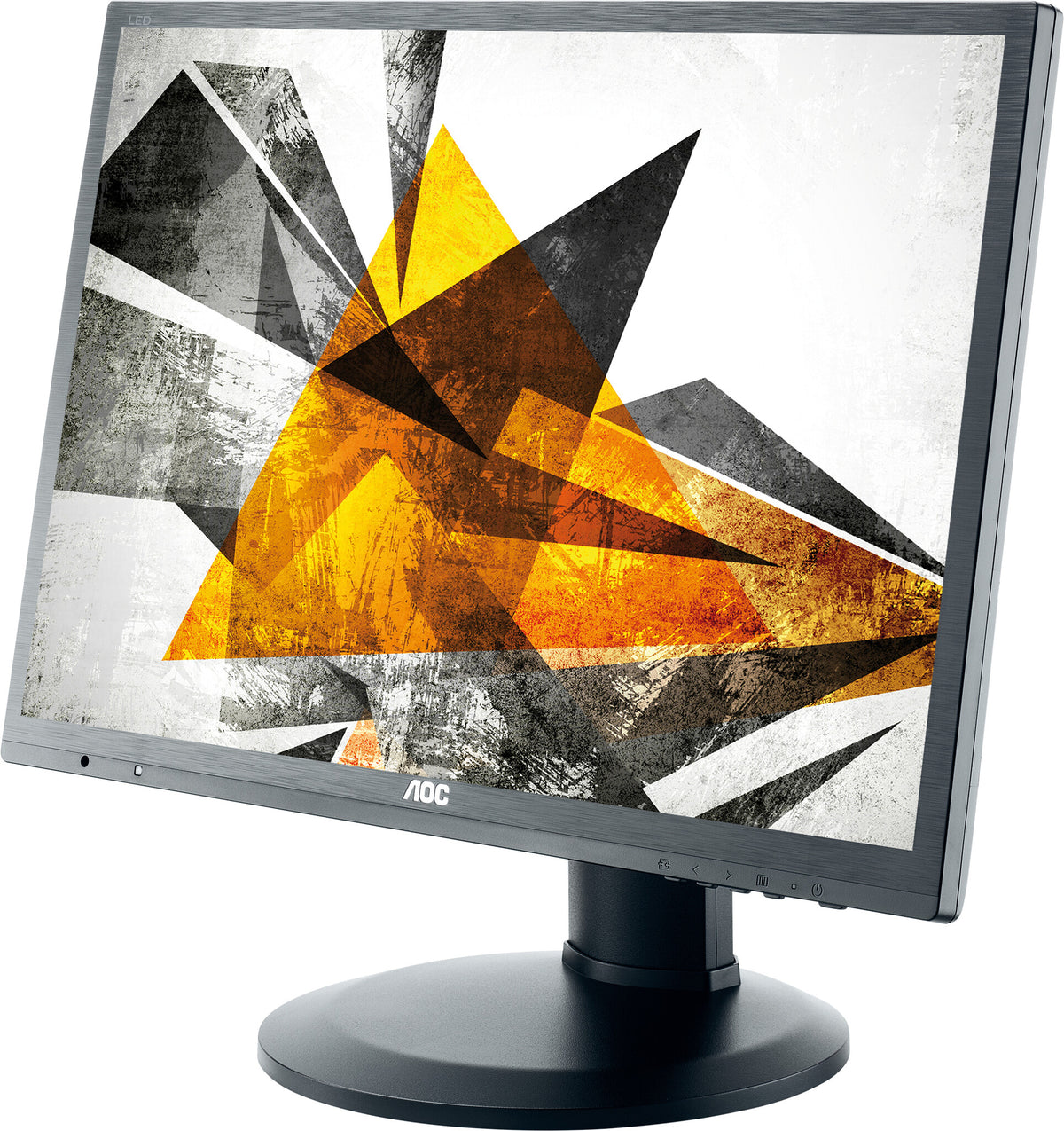

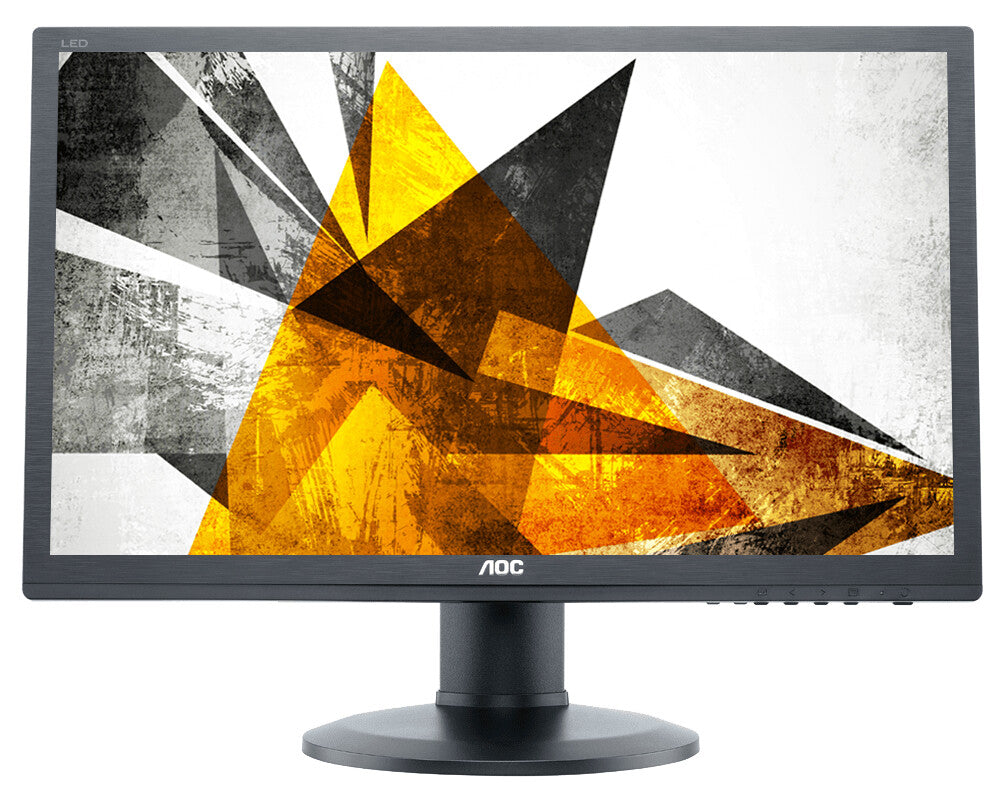

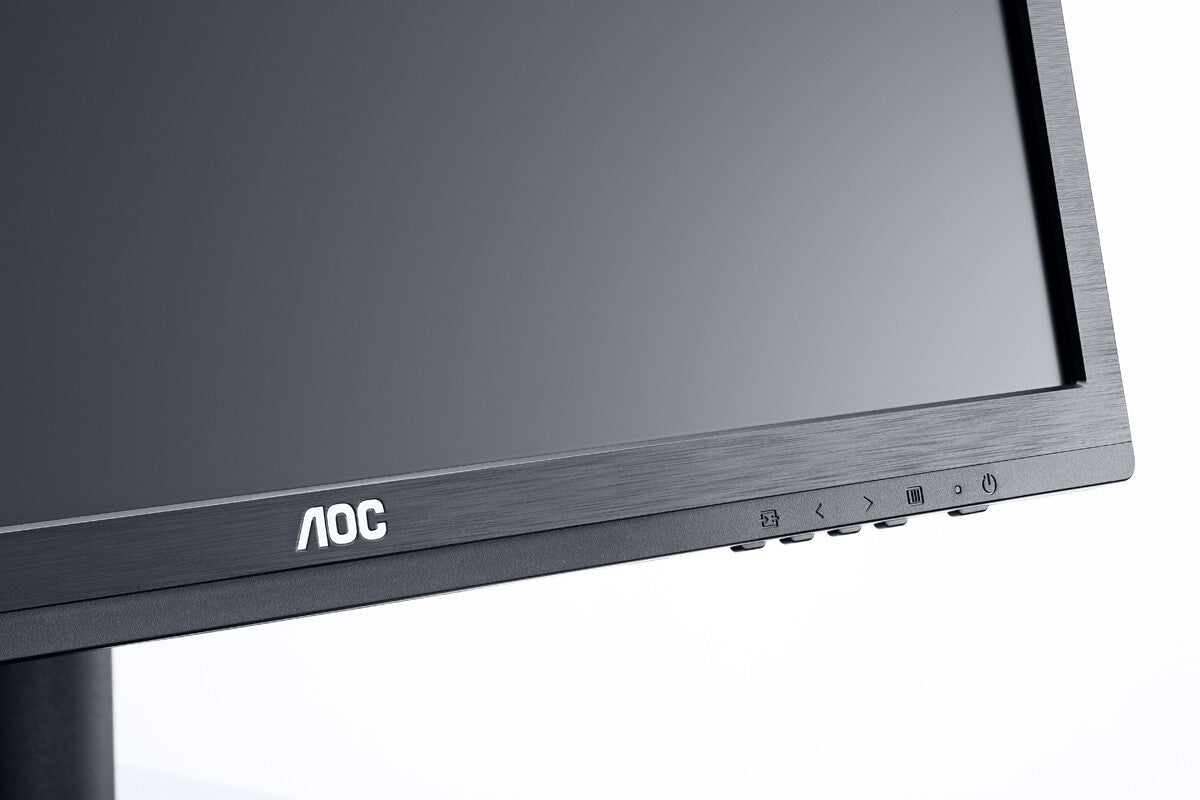

Ergonomic 22″ 16:10 display with speakers
This energy efficient 16:10 monitor comes with speakers and DVI connectivity. Its ergonomic stand is height-adjustable and offers tilt, swivel and pivot functions.
Three-Year Warranty
AOC stands behind the quality of each and every monitor with a generous three-year warranty starting from the original date of purchase. Within the warranty period, any AOC displays with manufacturing defects or faulty components will be repaired or replaced at no additional charge. Read the complete AOC warranty statement for more information.

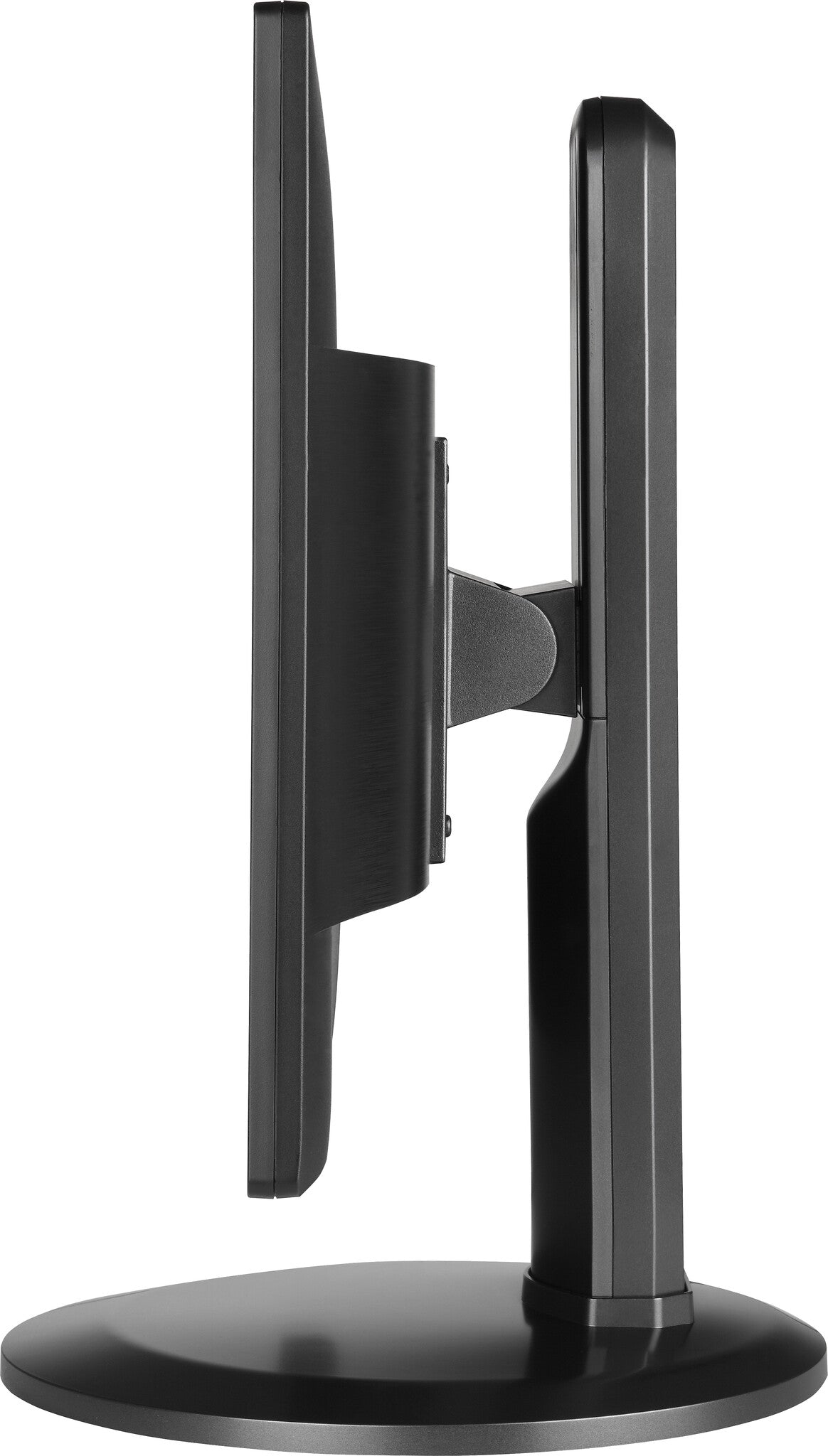

Adjustable Height
Raise or lower the screen to suit each individual’s height and seating preferences. The easy-to-adjust stand ensures hours of working comfort.
Integrated Speakers
Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.

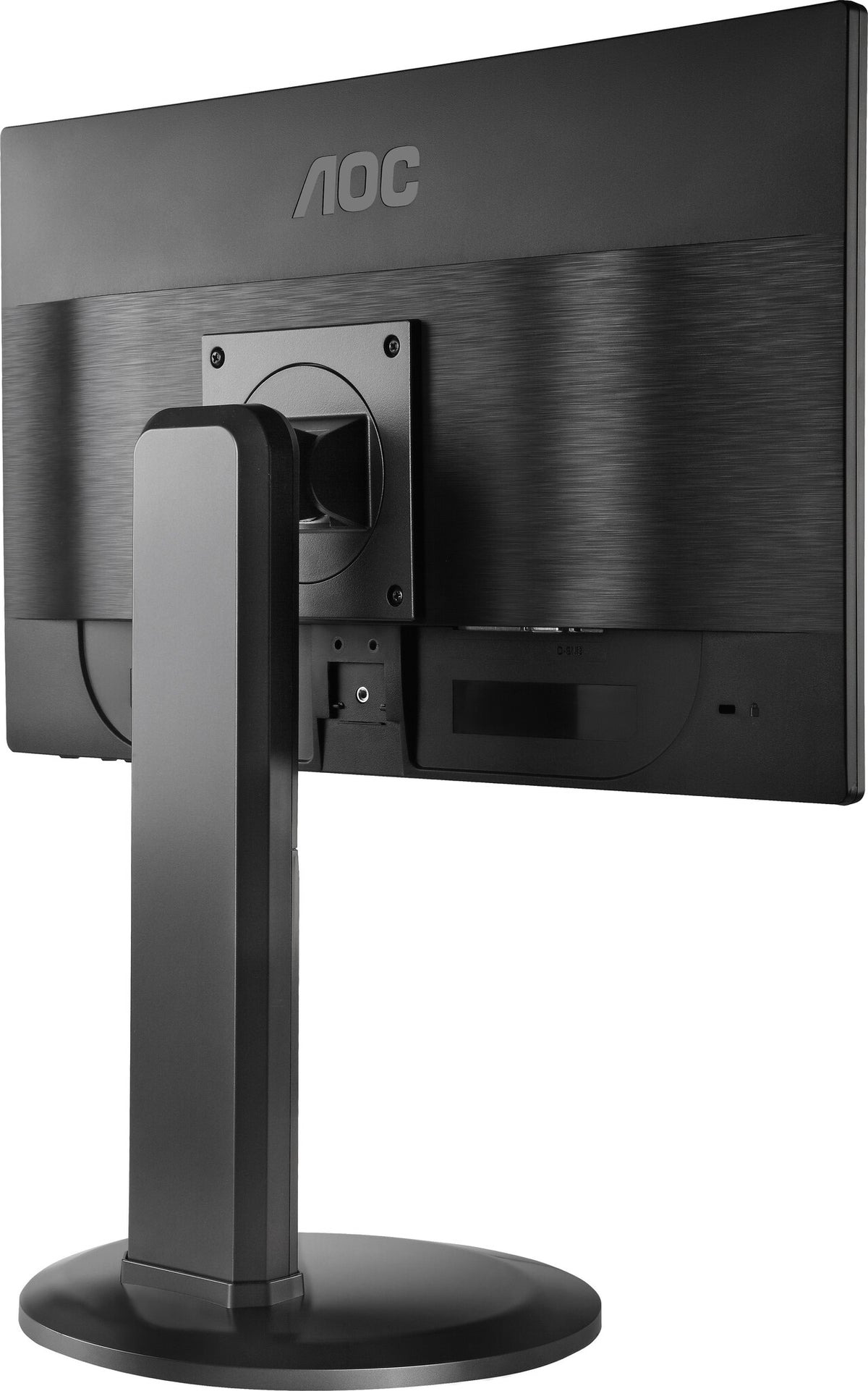

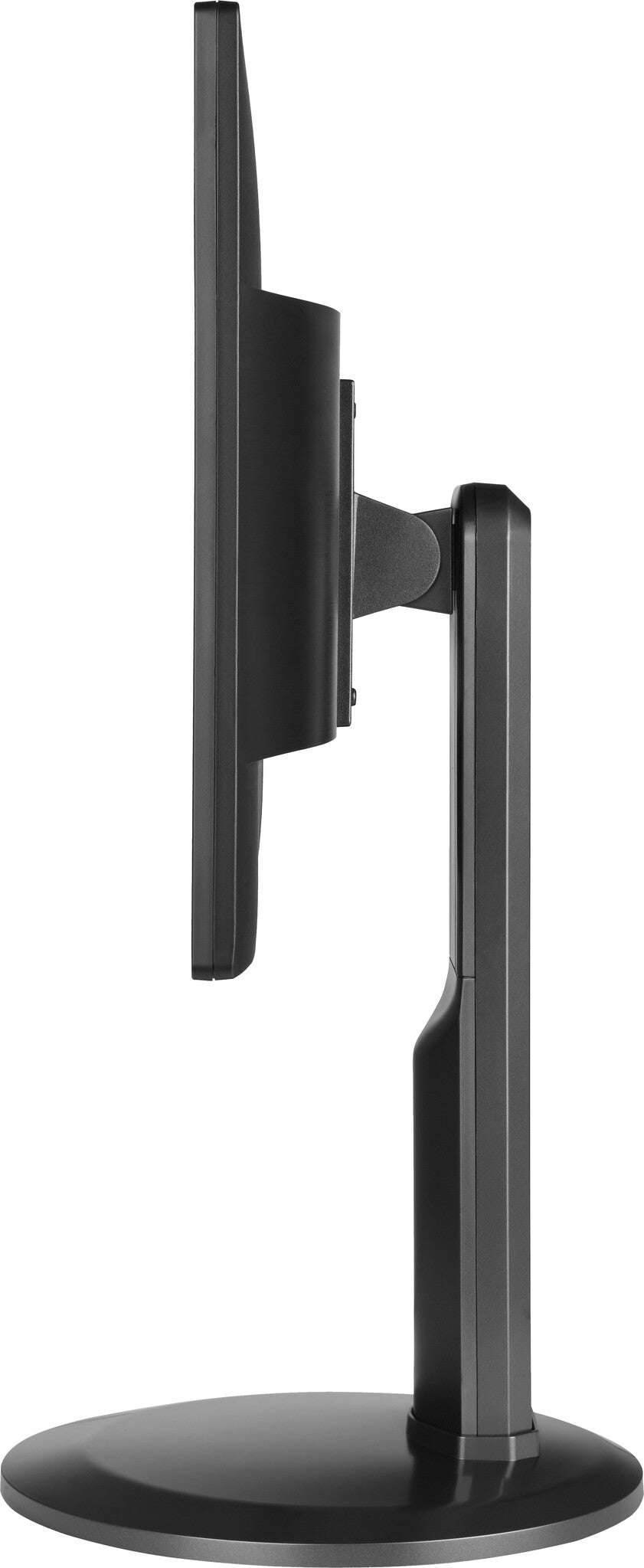

Height adjustable stand
We care about your well-being. This is why this monitor offers height adjustment options, which help you find your perfect posture while working, playing or watching videos. Adapting your AOC monitor to your needs not only helps you reduce fatigue and keep your body healthy. In the end it lets you and your team achieve better results in whatever you are doing.
Kensington Lock
Kensington Lock is an anti-theft system, comprising a metal-reinforced hole in the body of the respective device, to use with a metal cable secured with a key/lock system. Kensington locks enable you to secure your AOC monitor during a LAN event, an organisation, or wherever you carry it.

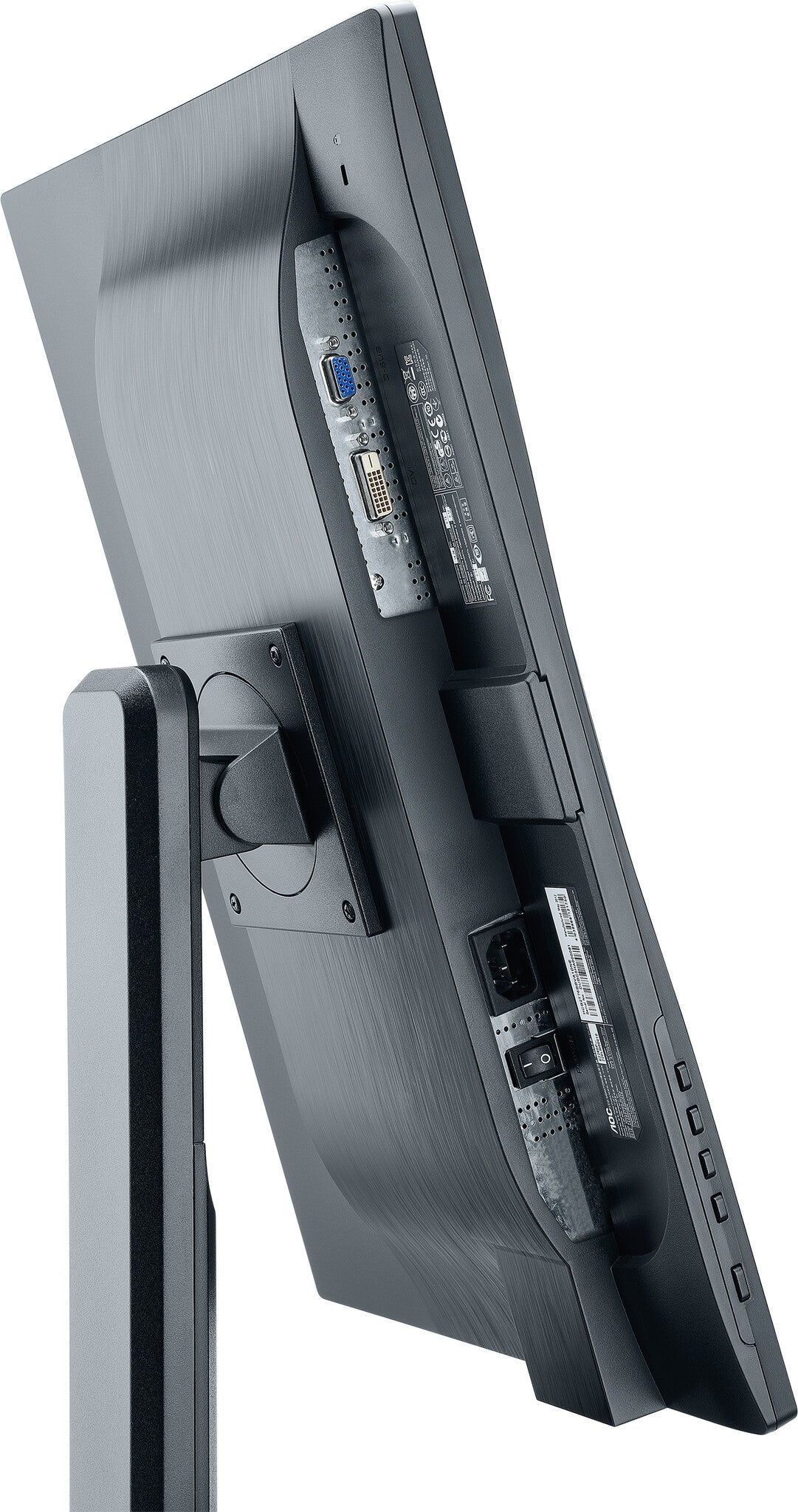

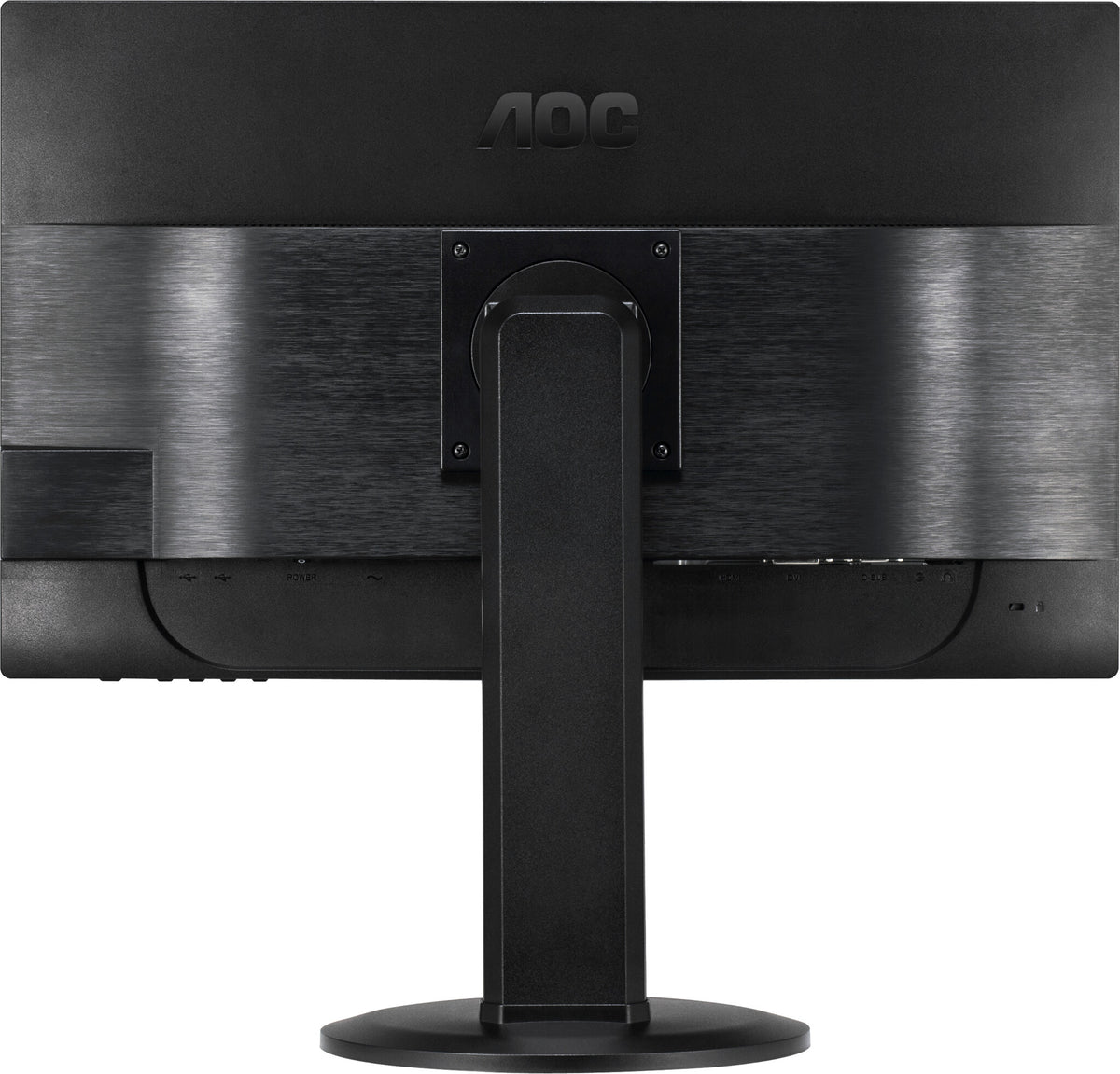

Vesa Mount
AOC’s Ergo Base stands bring versatility, sturdiness and ease of use in one package. But do you still want to use your wall mount or multi-monitor setup using desk mounts? VESA mounts bring you the uppermost flexibility. Upside-down, in pivot mode, on top of each other, attach your monitor wherever you want using 3rd party mounts and stands thanks to the VESA mount option.
Display | |
---|---|
Pixel frequency | 146 MHz |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 47.4 cm |
Vertical scan range | 50 - 76 Hz |
Horizontal scan range | 30 - 83 kHz |
Pixel pitch | 0.282 x 0.282 mm |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 160° |
Viewing angle, horizontal | 170° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 50000000:1 |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 16:10 |
Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 250 cd/m² |
Backlight type | W-LED |
Panel type | TN |
HD type | WSXGA+ |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:10 |
Display resolution | 1680 x 1050 pixels |
Display diagonal | 55.9 cm (22") |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | GOST |
Heavy metals free | Hg (mercury) |
Feet colour | Black |
Front bezel colour | Black |
Product colour | Black |
Market positioning | Business |

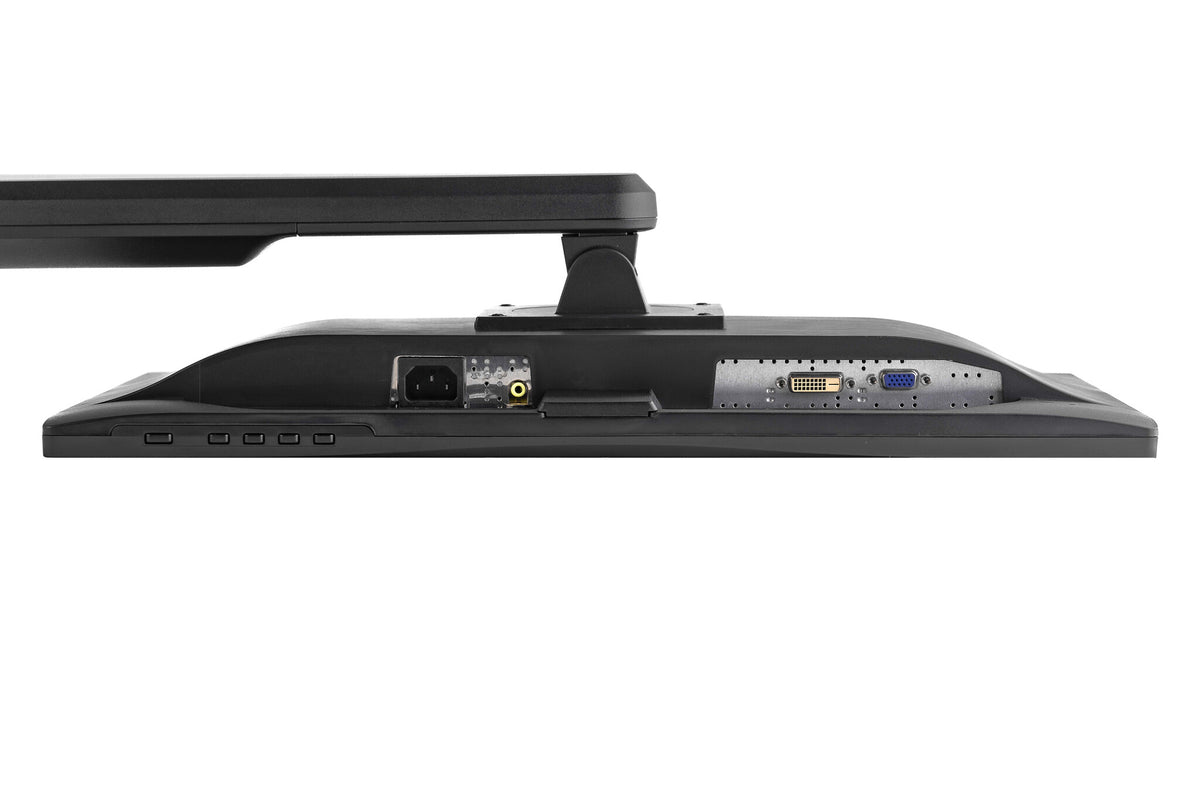

Ports & interfaces | |
---|---|
AC (power) in | Yes |
HDCP | Yes |
Headphone connectivity | 3.5 mm |
Headphone outputs | 1 |
Headphone out | Yes |
Audio output | Yes |
DVI-D ports quantity | 1 |
DVI port | Yes |
VGA (D-Sub) ports quantity | 1 |
Built-in USB hub | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Plug and Play | Yes |
Number of OSD languages | 16 |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |

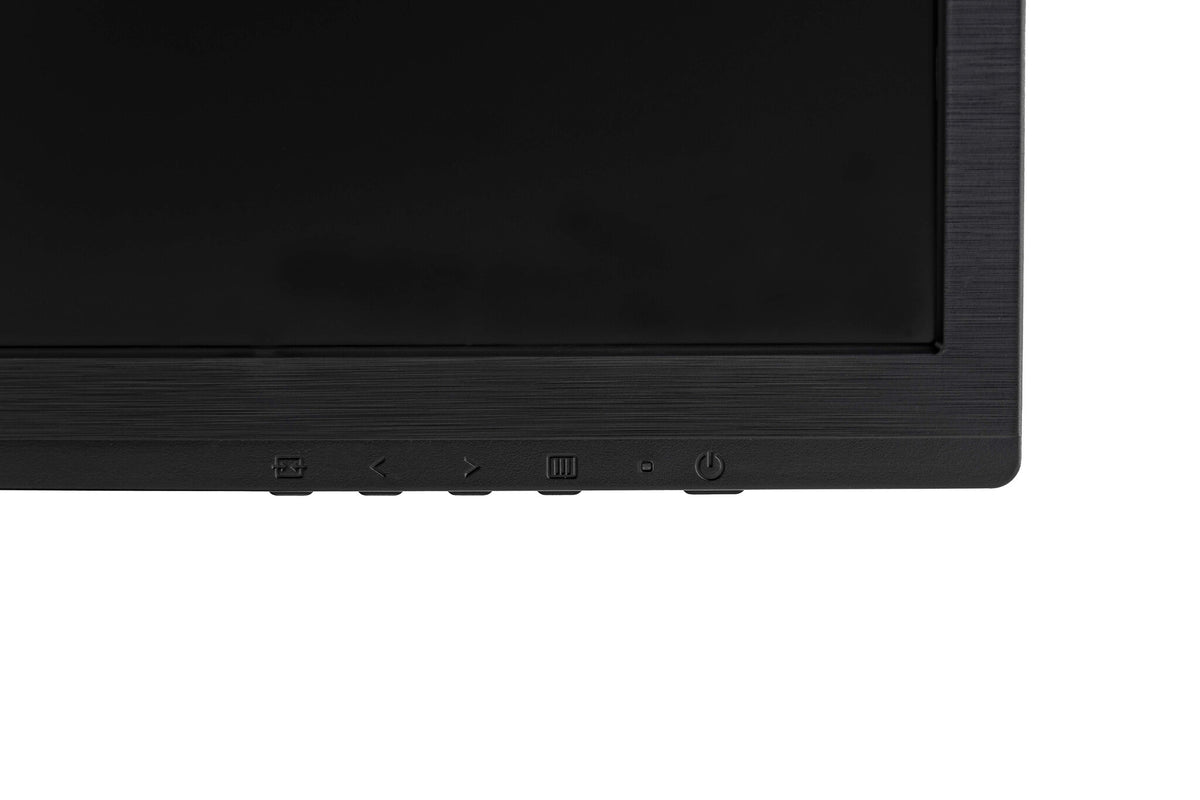

On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 20° |
Swivel angle range | -165 - 165° |
Swivelling | Yes |

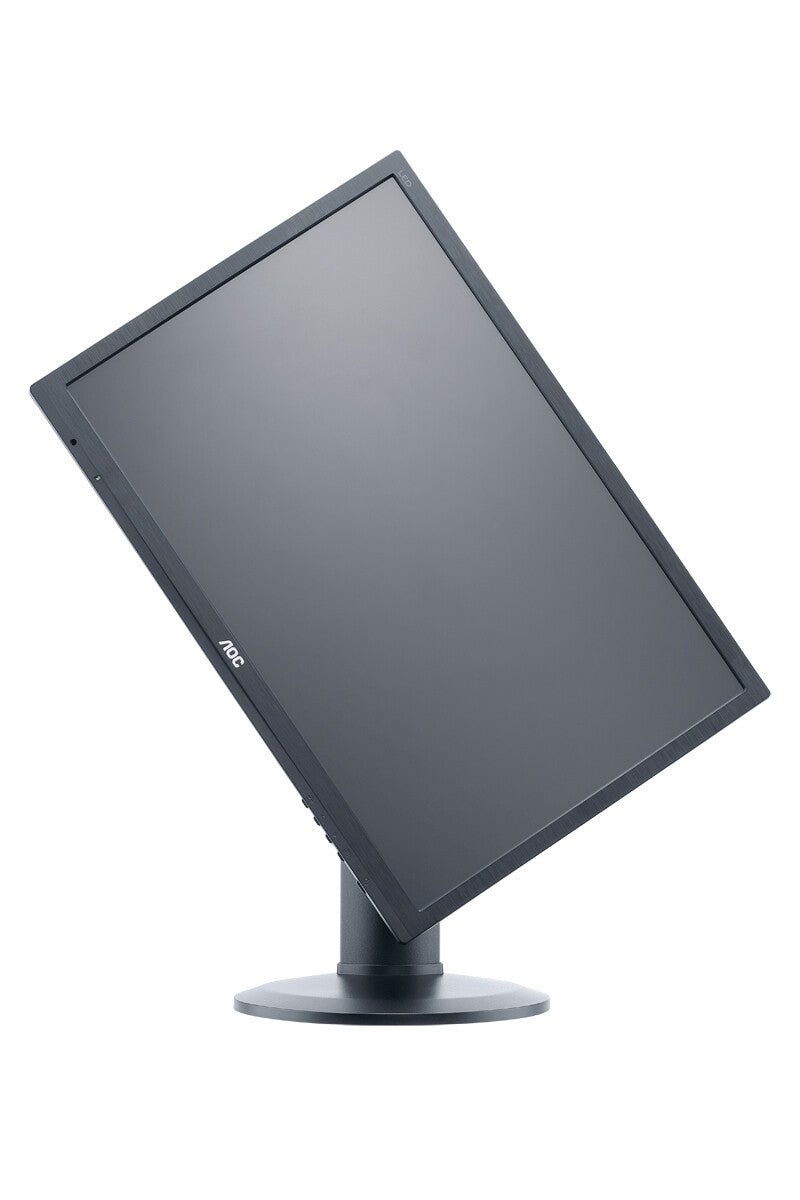

Pivot angle | -2 - 92° |
Pivot | Yes |
Height adjustment | 13 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
External power adapter | No |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.22 W |
Power consumption (standby) | 0.31 W |
Power consumption (typical) | 15.5 W |
Operational conditions | |
---|---|
Non-operating altitude | 3658 - 12192 m |
Operating altitude | 0 - 3658 m |
Storage relative humidity (H-H) | 5 - 93% |
Operating relative humidity (H-H) | 10 - 85% |
Storage temperature (T-T) | -25 - 55 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Power cable length | 1.8 m |
Audio cable length | 1.8 m |
Cables included | AC, Audio (3.5mm), DVI, VGA |
Stand included | Yes |
Weight & dimensions | |
---|---|
Height (without stand) | 499.7 mm |
Depth (without stand) | 127 mm |
Width (without stand) | 507.8 mm |
Weight (with stand) | 5.65 kg |
Height (with stand) | 521.3 mm |
Depth (with stand) | 244.6 mm |
Width (with stand) | 507.8 mm |
Packaging data | |
---|---|
VGA cable length | 1.8 m |
DVI cable length | 1.8 m |
Package type | Box |
Package weight | 7.22 kg |
Package height | 413 mm |
Package depth | 177 mm |
Package width | 652 mm |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Gold, ENERGY STAR |
General | |
---|---|
Product Family | 60 Series |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Technical details | |
---|---|
Compliance certificates | RoHS |
Other features | |
---|---|
Mean time between failures (MTBF) | 50000 h |
Recyclable packaging material | 100% |
Bezel thickness type | Normal |
TV tuner integrated | No |
Swivel webcam | No |
On/off switch | Yes |
