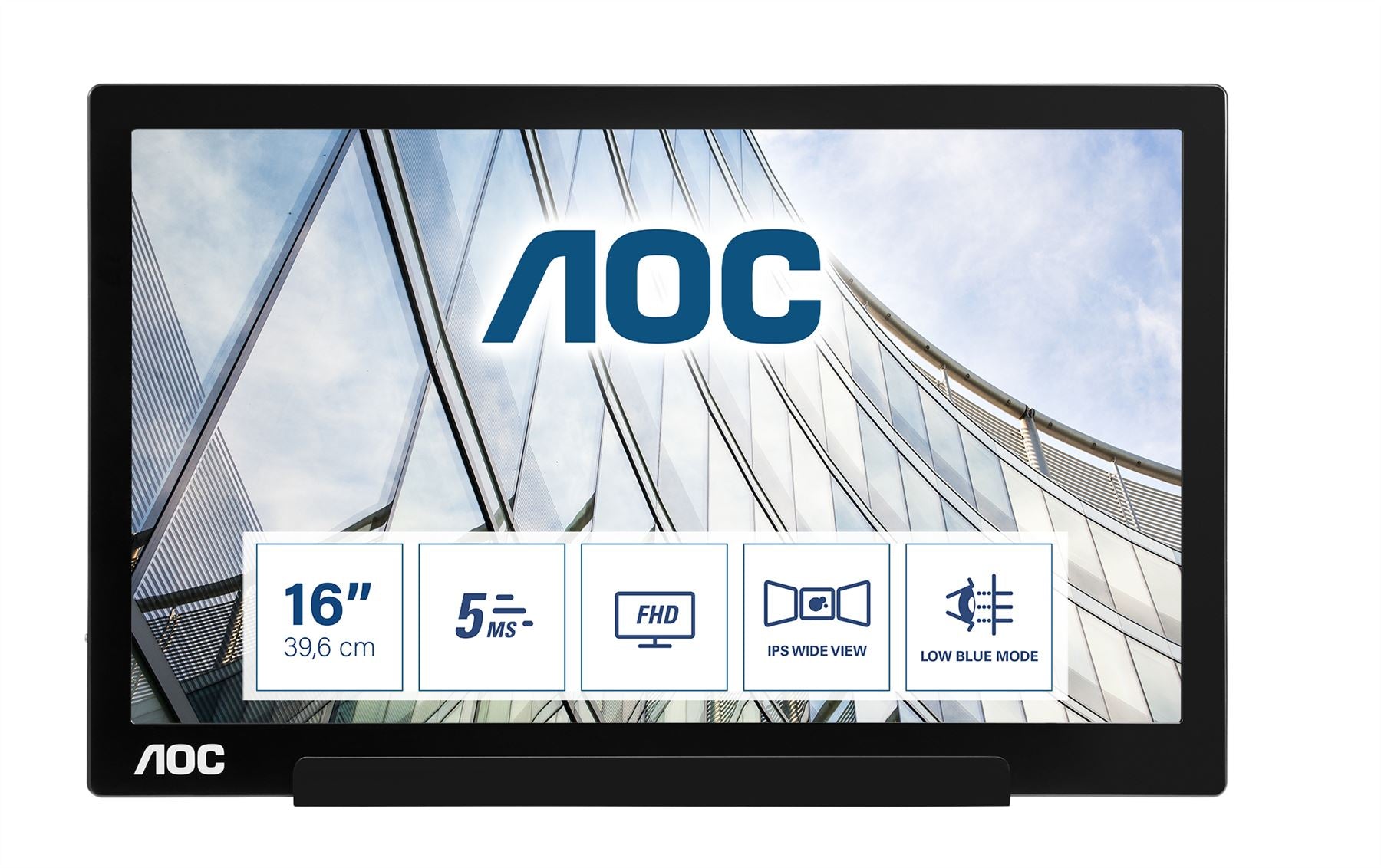

15.6” Full HD portable IPS display with USB-C connectivity The latest USB-C powered portable display from AOC, I1601FWUX boasts a vivid 15.6” IPS display with wide viewing angles (160/160°) and 5 ms GtG. Includes smart cover and auto-pivot mode.
Audio | |
---|---|
Built-in speaker(s) | No |
Performance | |
Built-in speaker(s) | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Low Blue Light technology | Yes |
Display | |
Display brightness (typical) | 220 cd/m² |
Screen shape | Flat |
Display number of colours | 262000 colours |
Native aspect ratio | 16:9 |
Maximum refresh rate | 60 Hz |
HD type | Full HD |
Display technology | LED |
Contrast ratio (dynamic) | 100000000:1 |
Viewing angle, horizontal | 160° |
Viewing angle, vertical | 160° |
Pixel pitch | 0.179 x 0.179 mm |
Horizontal scan range | 30 - 83 kHz |
Vertical scan range | 50 - 76 Hz |
Aspect ratio | 16:9 |
Viewable size, horizontal | 34.4 cm |
Viewable size, vertical | 19.4 cm |
Digital horizontal frequency | 30 - 83 kHz |
3D | No |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Backlight type | W-LED |
Display resolution | 1920 x 1080 pixels |
Response time | 5 ms |
Display diagonal | 39.6 cm (15.6") |
Contrast ratio (typical) | 700:1 |
Surface hardness | 3H |
Touchscreen | No |
Panel type | IPS |
Colour depth | 6 bit |
Display diagonal (metric) | 39.5 cm |
Display brightness | 220 cd/m² |
Management features | |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
Multimedia | |
Built-in speaker(s) | No |
Built-in camera | No |
TV tuner integrated | No |
Design | |
Market positioning | Home |
Heavy metals free | Hg (mercury) |
Product colour | Silver, Black |
Front bezel colour | Black |
Exterior finish type | Gloss |
Bezel thickness type | Normal |
Camera | |
Built-in camera | No |
Ports & interfaces | |
Built-in USB hub | Yes |
USB upstream port type | USB Type-C |
USB Type-A downstream ports quantity | 1 |
USB Type-C downstream ports quantity | 1 |
DVI port | No |
USB Type-C DisplayPort Alternate Mode | Yes |
TV tuner | |
TV tuner integrated | No |
Technical details | |
External power adapter | No |
Width (without stand) | 37.6 cm |
Cable lock slot | No |
Product colour | Silver, Black |
Recyclable packaging material | 100% |
Front bezel colour | Black |
Sustainability certificates | ENERGY STAR |
Weight (with stand) | 824 g |
Surface hardness | 3H |
Touchscreen | No |
Ergonomics | |
Wall mountable | No |
Cable lock slot | No |
Tilt angle range | 5 - 25° |
Pivot | Yes |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
Height adjustment | No |
Tilt adjustment | Yes |
Power | |
AC input voltage | 5 V |
External power adapter | No |
Power consumption (max) | 23.5 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 8 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | B |
Energy consumption (SDR) per 1000 hours | 5 kWh |
Operational conditions | |
Non-operating altitude | 5000 - 12192 m |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -25 - 55 °C |
Operating relative humidity (H-H) | 10 - 85% |
Storage relative humidity (H-H) | 5 - 93% |
Operating altitude | 0 - 5000 m |
Packaging content | |
Quick start guide | Yes |
Cables included | USB Type-C |
USB cable length | 1.8 m |
Weight & dimensions | |
Width (without stand) | 37.6 cm |
Width (with stand) | 376.2 mm |
Depth (with stand) | 8.5 mm |
Height (with stand) | 235.2 mm |
Weight (with stand) | 824 g |
Weight (without stand) | 824 g |
Package width | 295 mm |
Package depth | 442 mm |
Package height | 84 mm |
Package weight | 1.57 kg |
Packaging data | |
Package width | 295 mm |
Package depth | 442 mm |
Package height | 84 mm |
Package weight | 1.57 kg |
Package type | Box |
USB cable length | 1.8 m |
Carrying case | Yes |
Quick start guide | Yes |
Cables included | USB Type-C |
Sustainability | |
Sustainability certificates | ENERGY STAR |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Width (without stand) | 37.6 cm |
Power consumption (max) | 23.5 W |
Quick start guide | Yes |
Surface hardness | 3H |
Energy efficiency scale | A to G |
USB Type-C DisplayPort Alternate Mode | Yes |
TV tuner integrated | No |
Recyclable packaging material | 100% |
Touchscreen | No |
Exterior finish type | Gloss |
Bezel thickness type | Normal |
Light effects | No |
External power adapter | No |
Package type | Box |
Front bezel colour | Black |
