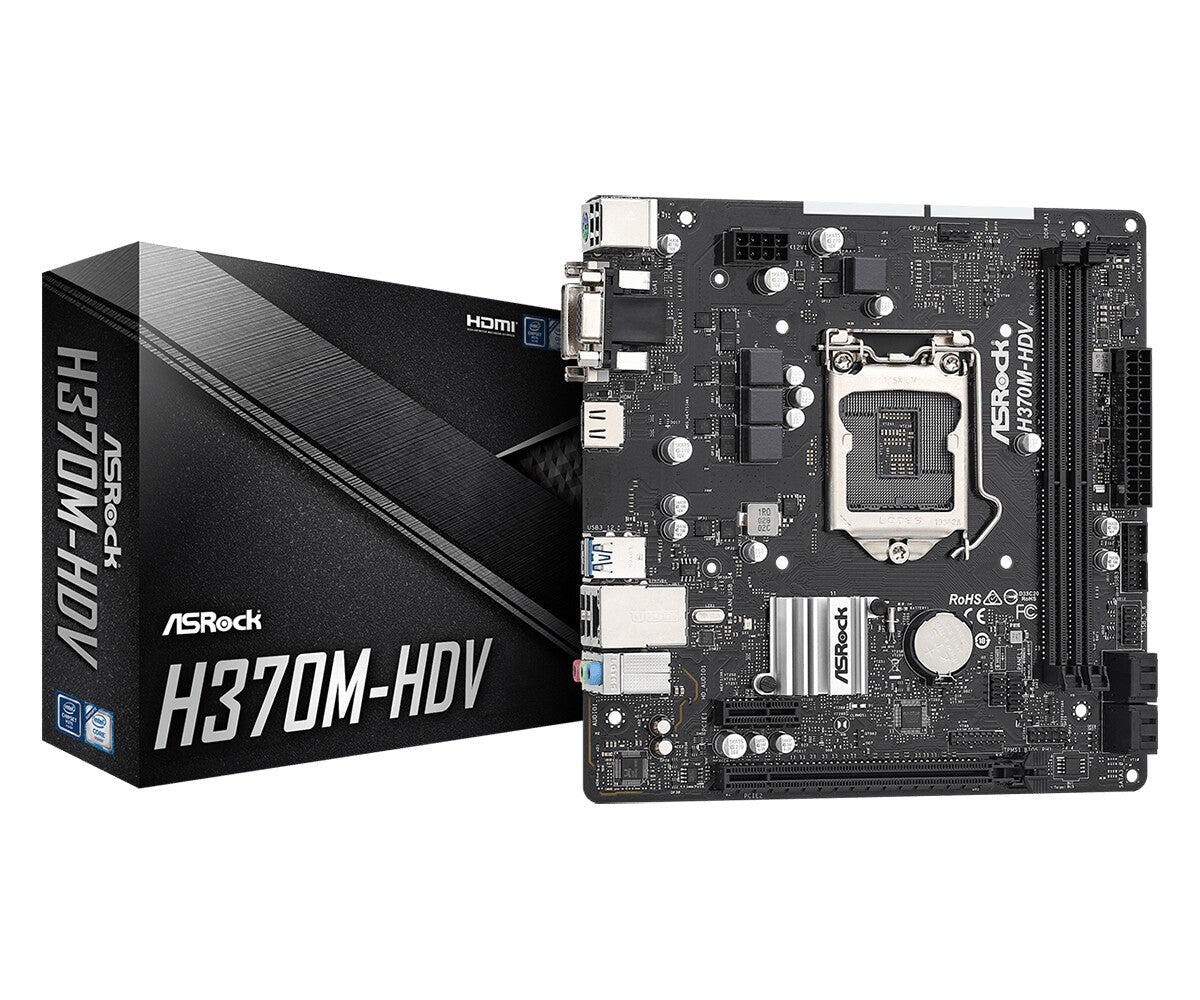

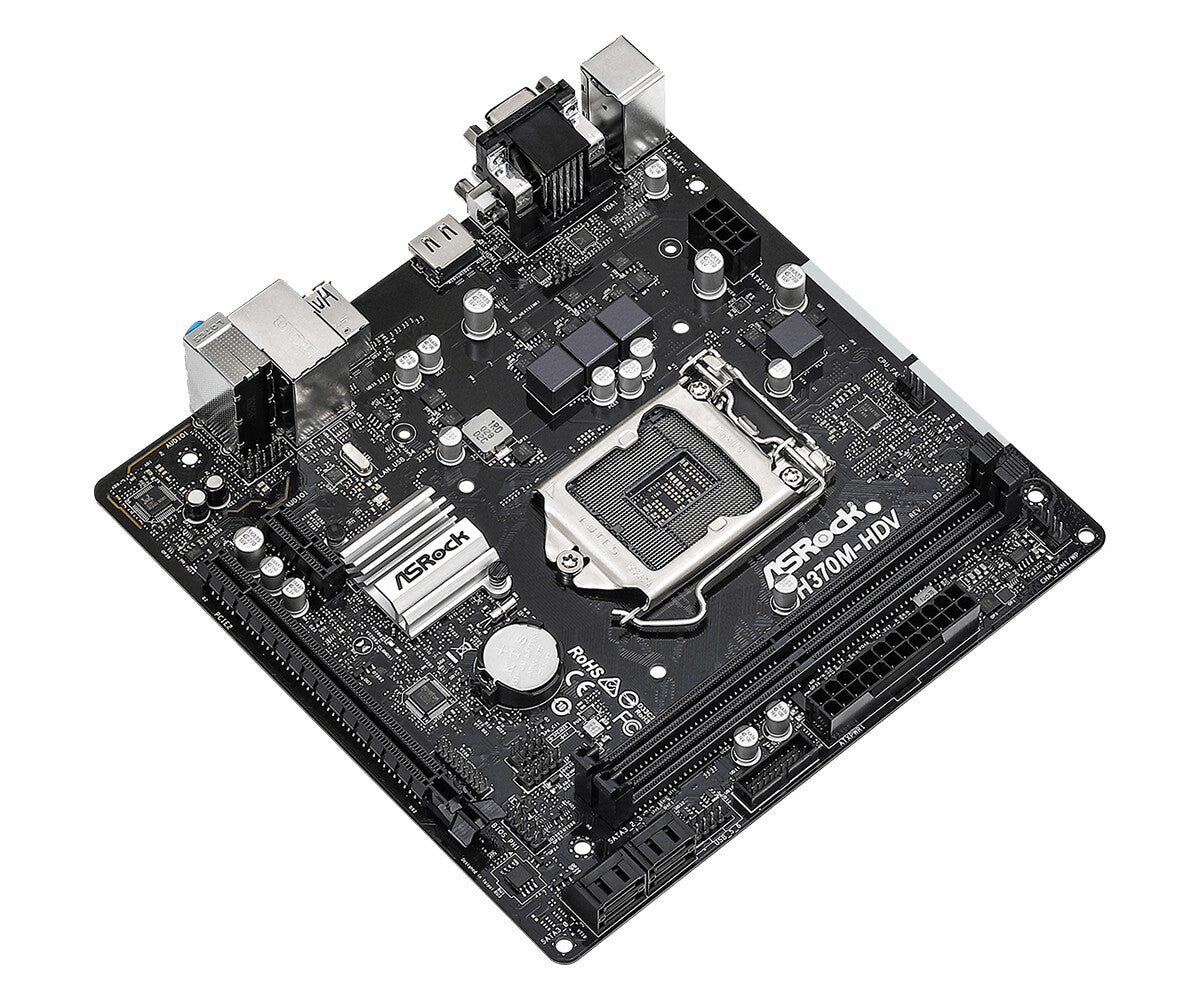

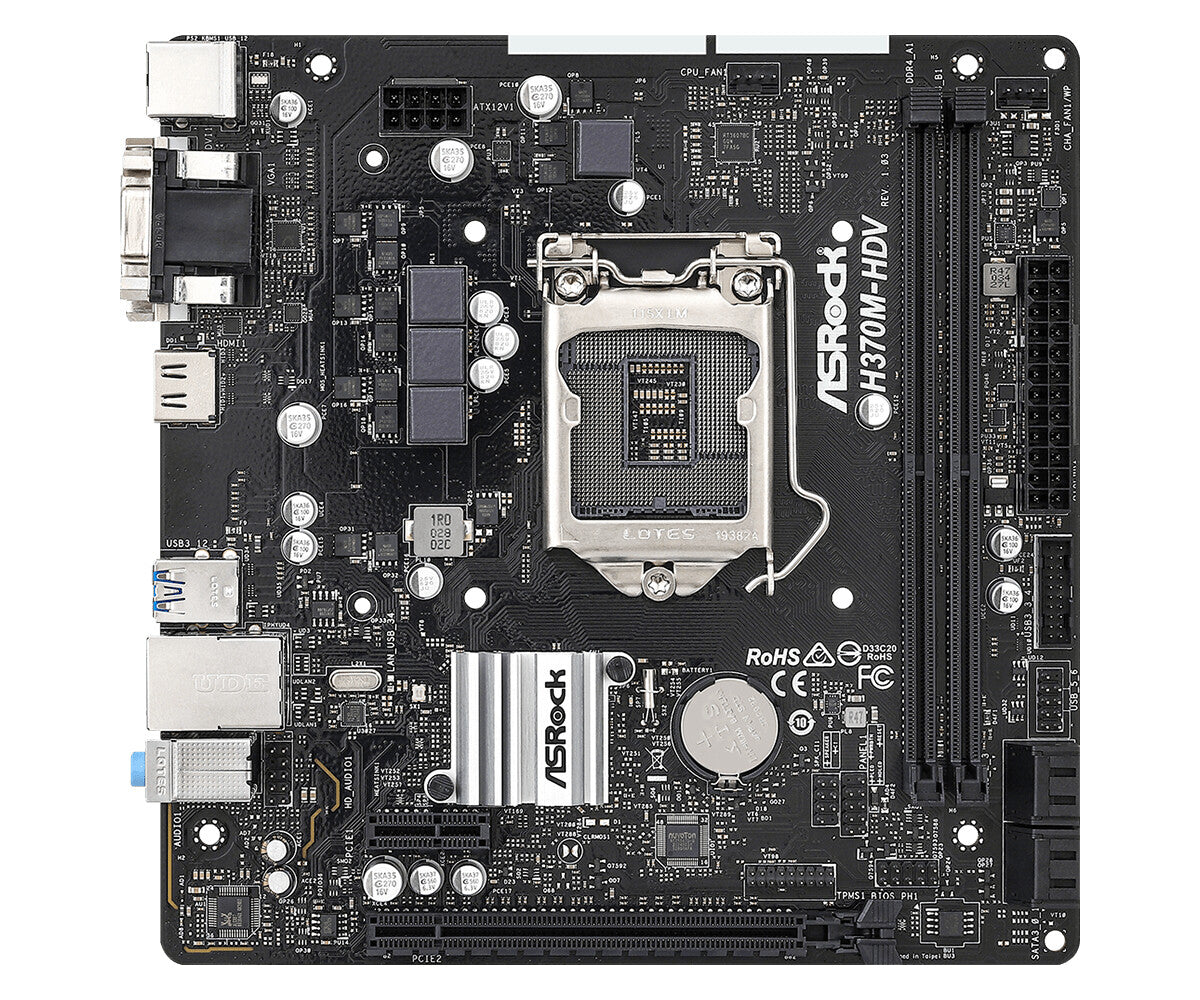

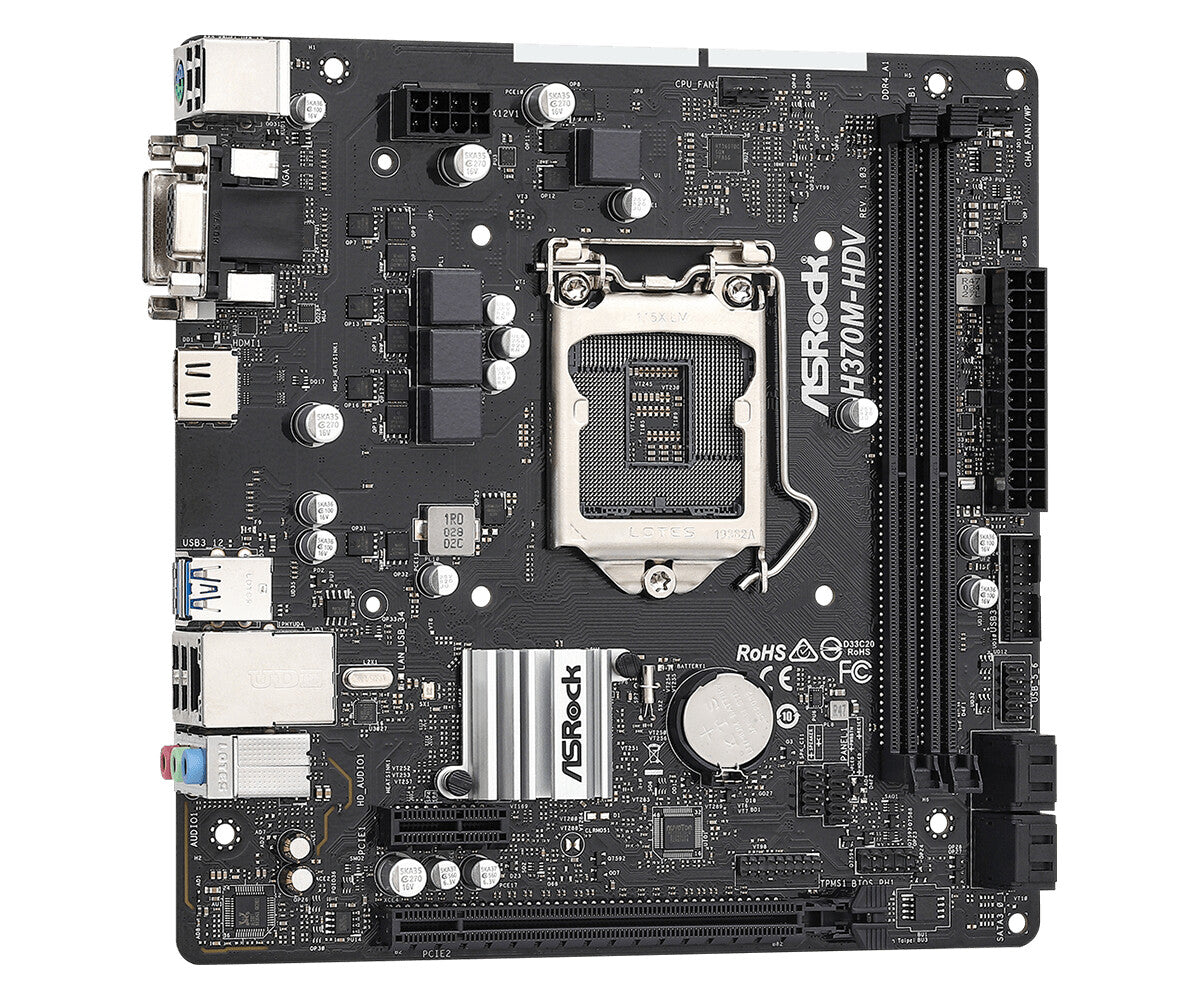

Micro ATX (191 x 188 mm), Intel H370, Socket 1151, 2 x DDR4 DIMM, 128 Mb AMI UEFI Legal BIOS, Gigabit LAN, 4 x SATA3 6.0 Gb/s
4 x USB3.2 Gen1
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Processor |
|---|
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
2133,2400,2666 MHz |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive interfaces |
SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Number of displays supported |
3 |
| Internal I/O |
|---|
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |

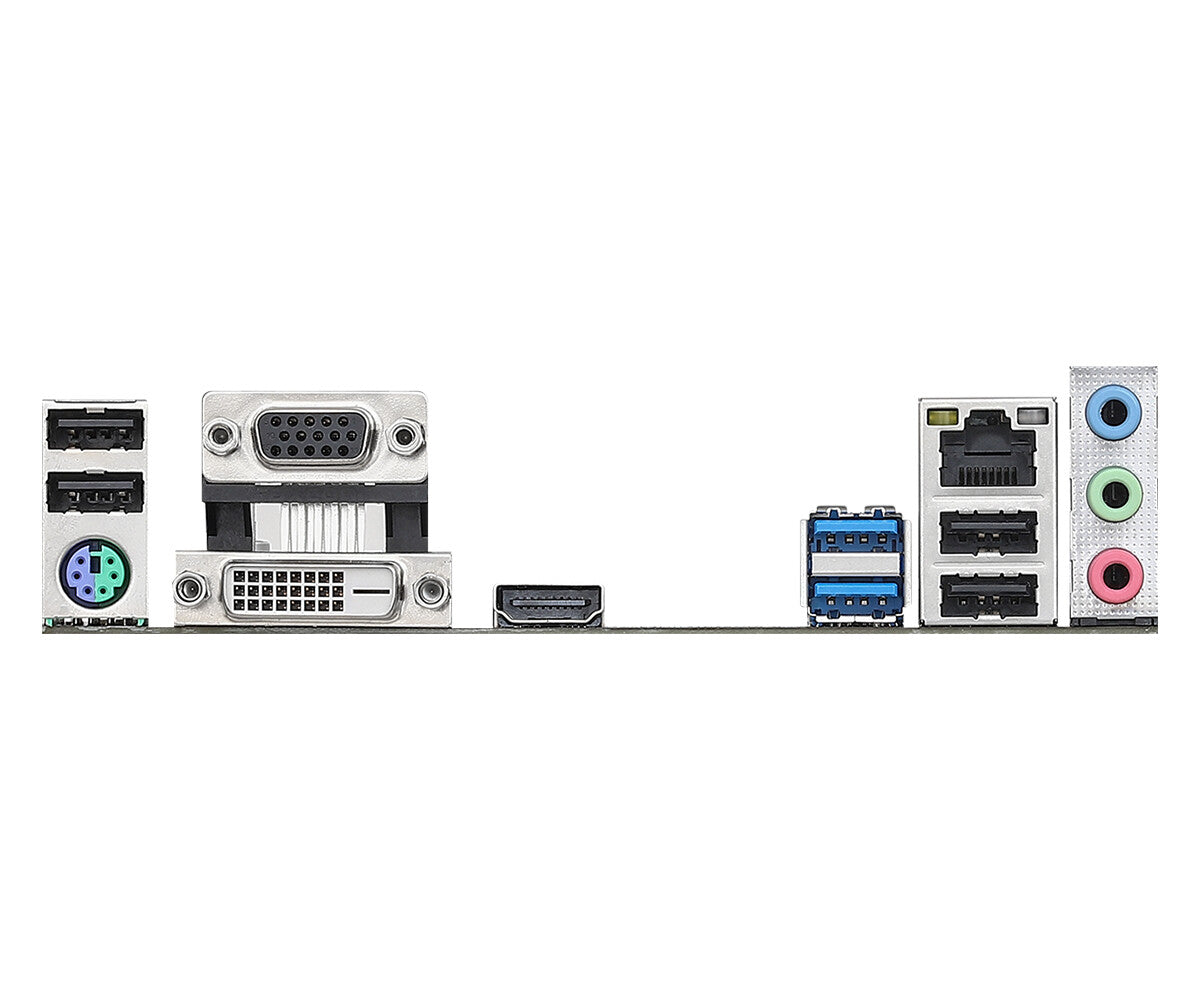

| Rear panel I/O ports |
|---|
| USB connector type |
USB Type-A |
| Microphone in |
Yes |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
|---|
| Wi-Fi |
No |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 |
| Power source type |
ATX |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC887 / Realtek ALC897 |
| Motherboard chipset |
Intel® H370 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
2.7 |
| ACPI version |
6.0 |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
188 mm |
| Width |
191 mm |
