Let it Shine

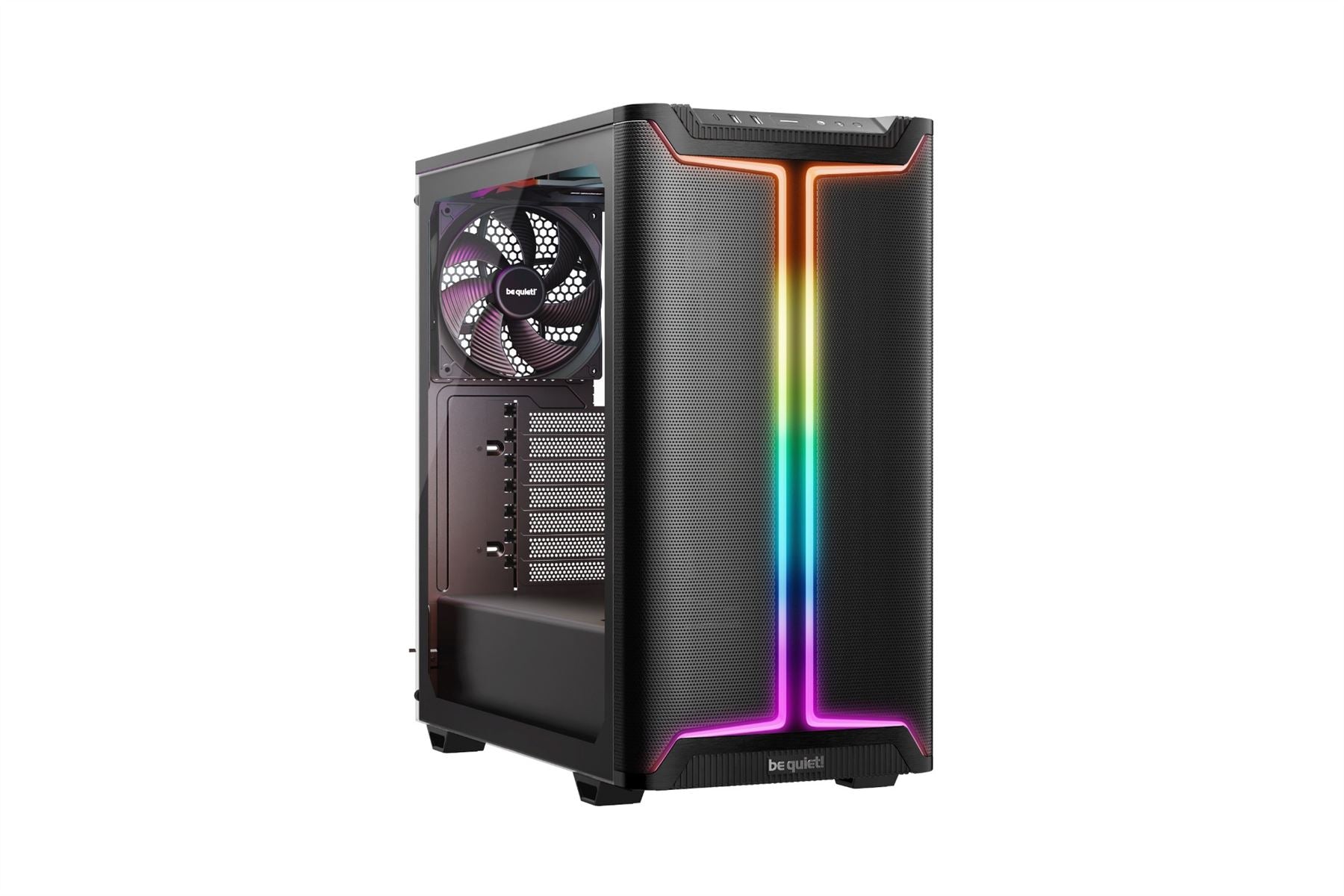

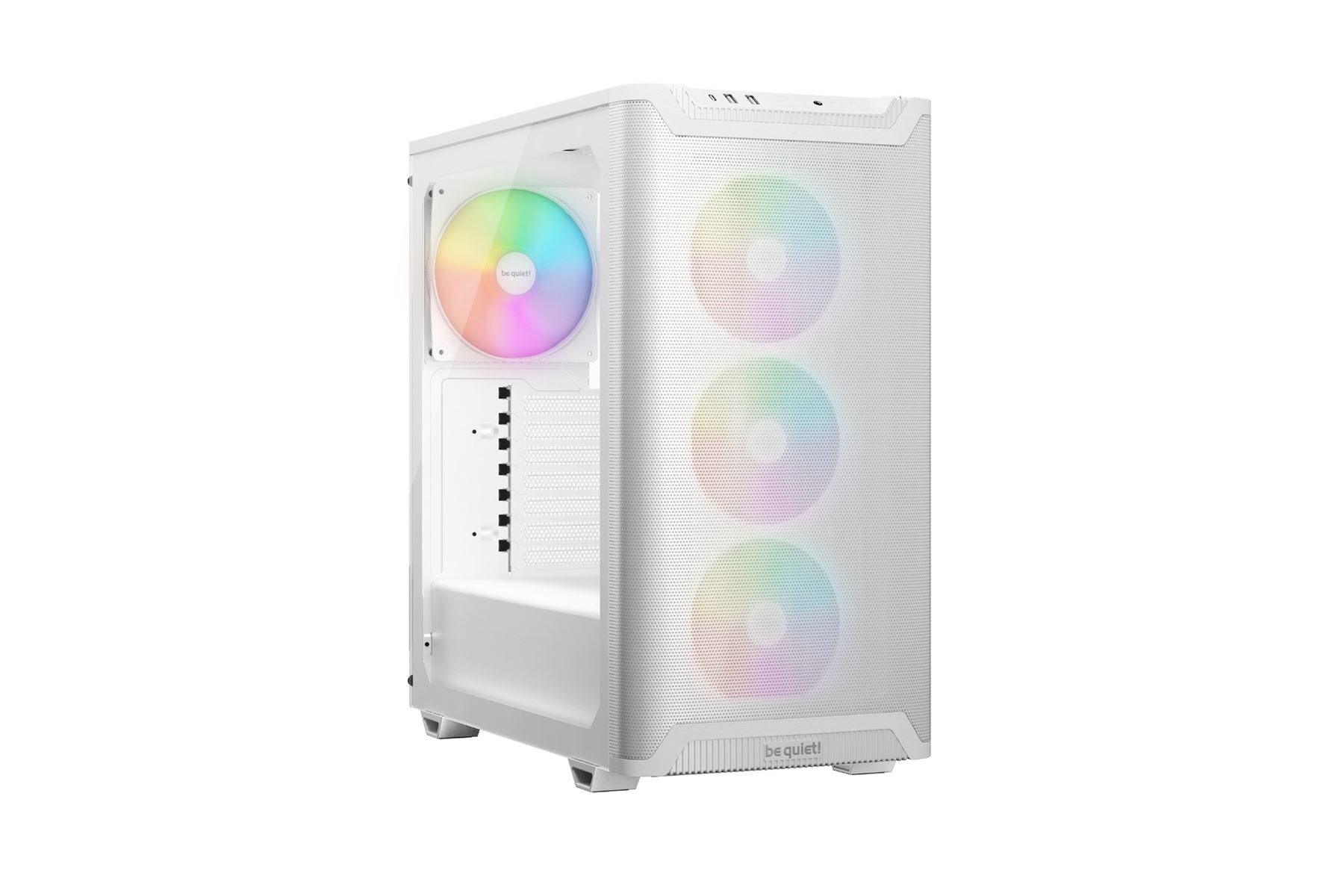

The be quiet! Pure Base 501 DX is a compact ATX case designed for high airflow and performance. It features a redesigned front panel with ARGB lighting, three pre-installed Pure Wings 3 140mm PWM fans, and support for radiators up to 360mm. Despite its compact size, it accommodates high-end graphics cards and large coolers. The case offers a tempered glass side panel, USB 3.2 Gen. 2 Type-C connectivity, and optional vertical GPU mounting. With its blend of aesthetics and functionality, the Pure Base 501 DX caters to both gamers and PC enthusiasts.
Looking good!
The Pure Base 501 DX case combines ARGB LEDs on both its front and interior, striking a balance between vibrant illumination and understated elegance that the Pure Base 501 series is renowned for. Its front design has been crafted to harmonise with the lighting, creating a visually striking presence in any room. This thoughtful integration ensures that the case not only enhances the aesthetic appeal of your setup but also complements its surroundings with a sophisticated flair.
PERFECT CASE FAN
The Pure Wings 3 140mm PWM fan is an ideal choice for the Pure Base 501 DX case, thanks to its optimisation for maximum airflow. Its seven airflow-optimised fan blades effectively reduce noise-generating turbulences while ensuring the fan delivers the performance required for demanding configurations. This makes it a reliable and efficient cooling solution for systems that need robust airflow without excessive noise.
MORE THAN MEETS THE EYE
Despite its compact size, the Pure Base 501 DX case provides ample space for high-end graphics cards and large coolers. It supports the installation of triple fans or a radiator up to 360mm at the front, while the top area accommodates up to two fans or a radiator up to 240mm, ensuring flexibility for various cooling configurations.
WAY UP!
The Pure Base 501 DX case offers a unique feature for GPU installation, allowing users to rotate its PCIe slots 90 degrees. This enables an upright mounting of wide, high-end graphics cards, providing an alternative to traditional horizontal placement. The case is designed to accommodate the optional be quiet! Riser Cable, which includes a foam base that offers excellent support against sagging when graphics cards are installed vertically.
INVENTORY MANAGEMENT
The Pure Base 501 DX case, despite its compact dimensions, efficiently utilises its space to provide a seamless cable management experience. It features cleverly integrated cable routing options, making it easy to keep the interior tidy and organised. This thoughtful design ensures that managing cables is straightforward and hassle-free, contributing to a clean and visually appealing build.
CONNECT WITH ME
The Pure Base 501 DX case offers convenient connectivity options with a USB 3.2 Gen. 2 Type C port and two USB Type A ports located on the front I/O panel. Additionally, it includes a controller button for managing the front ARGB LEDs, allowing users to cycle through various colours and modes or synchronise the effects with a motherboard ARGB header for a unified lighting experience.
A perfect view inside your PC
The Pure Base 501 DX case features a high-quality, fully-windowed side panel that provides an excellent view of the internal components. The window is crafted from tinted and tempered glass, complemented by white painted side bars, creating a visually appealing and sophisticated look that showcases the beauty of your build.
| Design |
| Volume |
24.4 L |
| Fan connector |
4-pin |
| Anti-dust filter |
Yes |
| Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
5 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Side window |
Yes |
| Illumination location |
Front |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
White |
| Number of expansion slots |
7 |
| Maximum graphics card length |
36.8 cm |
| Maximum PSU length |
20 cm |
| Type |
PC |
| Form factor |
Midi Tower |
| Technical details |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
5 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
Yes |
| Product colour |
White |
| Number of expansion slots |
7 |
| Maximum graphics card length |
36.8 cm |
| Maximum PSU length |
20 cm |
| Type |
PC |
| Form factor |
Midi Tower |
| Sustainability certificates |
Triman |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Material |
| Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Indication |
| Illumination location |
Front |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Power supply |
| Supported power supply form factors |
ATX, PS2 |
| Power supply included |
No |
| Ports & interfaces |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| Fan connector |
4-pin |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Rear radiator sizes supported |
120,140 mm |
| Top radiator sizes supported |
120,240 mm |
| Noise level (high speed) |
21.9 dB |
| Maximum airflow |
57.4 cfm |
| Fan rated voltage |
5 - 13.2 V |
| Fan rated current |
0.06 A |
| Fan power consumption |
3.6 W |
| Front fans installed |
1x 140 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Top fans installed |
1x 140 mm |
| Number of top fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Liquid cooling capability |
Yes |
| Maximum air pressure |
0.96 mmH2O |
| Pulse-width modulation (PWM) support |
Yes |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
| Volume |
24.4 L |
| Width |
231 mm |
| Depth |
450 mm |
| Height |
463 mm |
| Weight |
7.8 kg |
| Packaging data |
| Package width |
292 mm |
| Package height |
503 mm |
| Package depth |
518 mm |
| Package weight |
9.2 kg |
| Other features |
| Volume |
24.4 L |
| Maximum airflow |
57.4 cfm |
| Fan connector |
4-pin |
