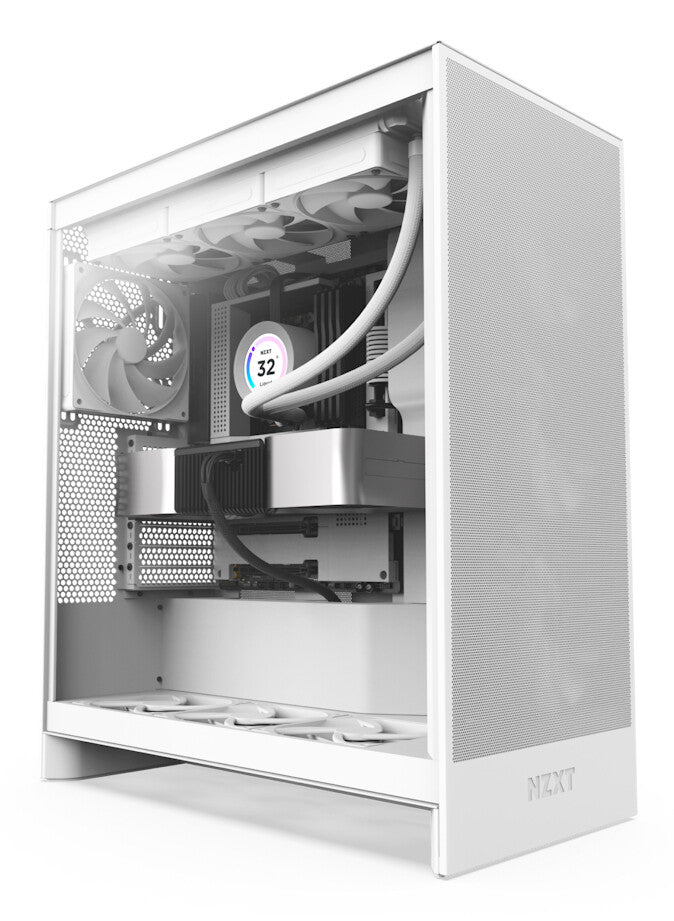

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

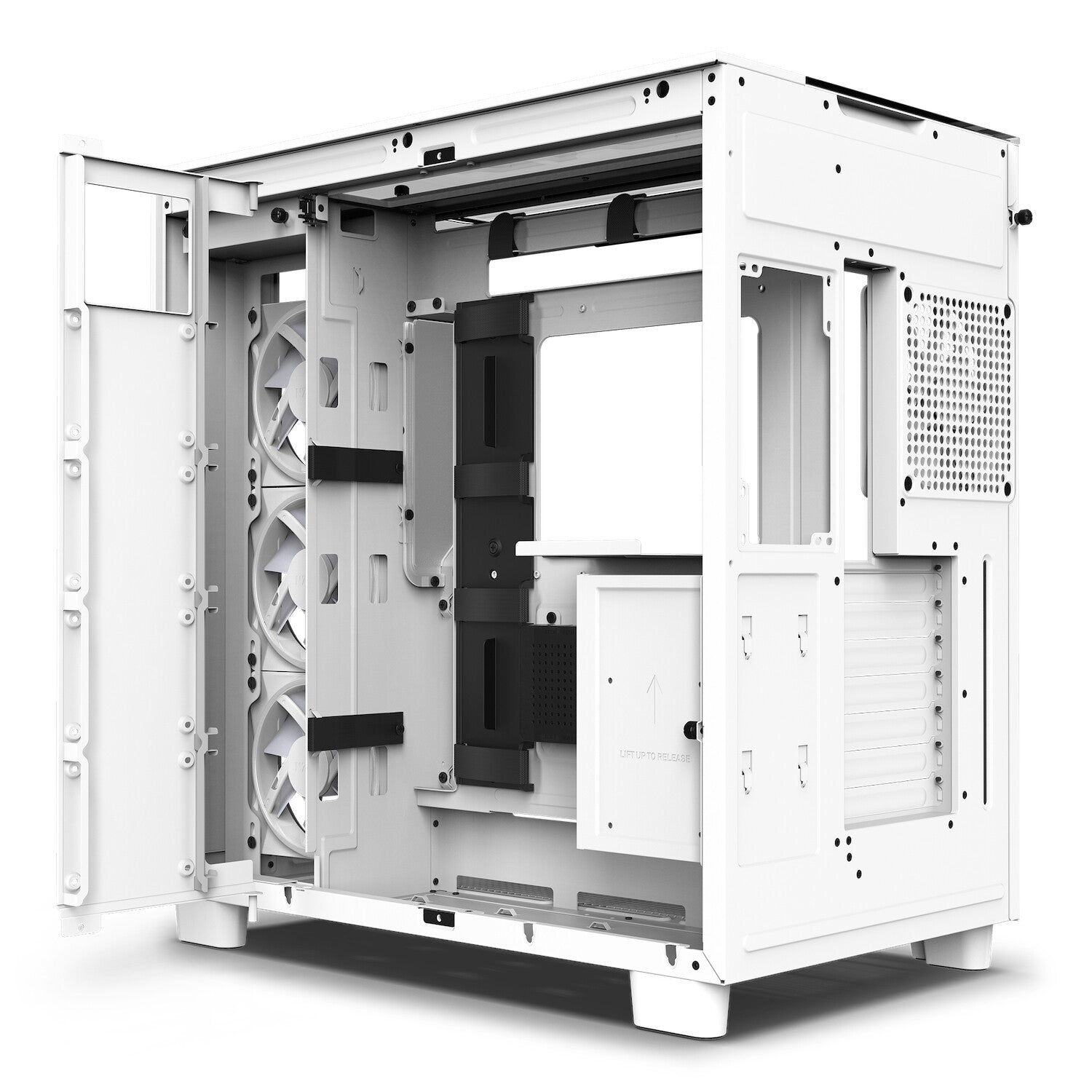

Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

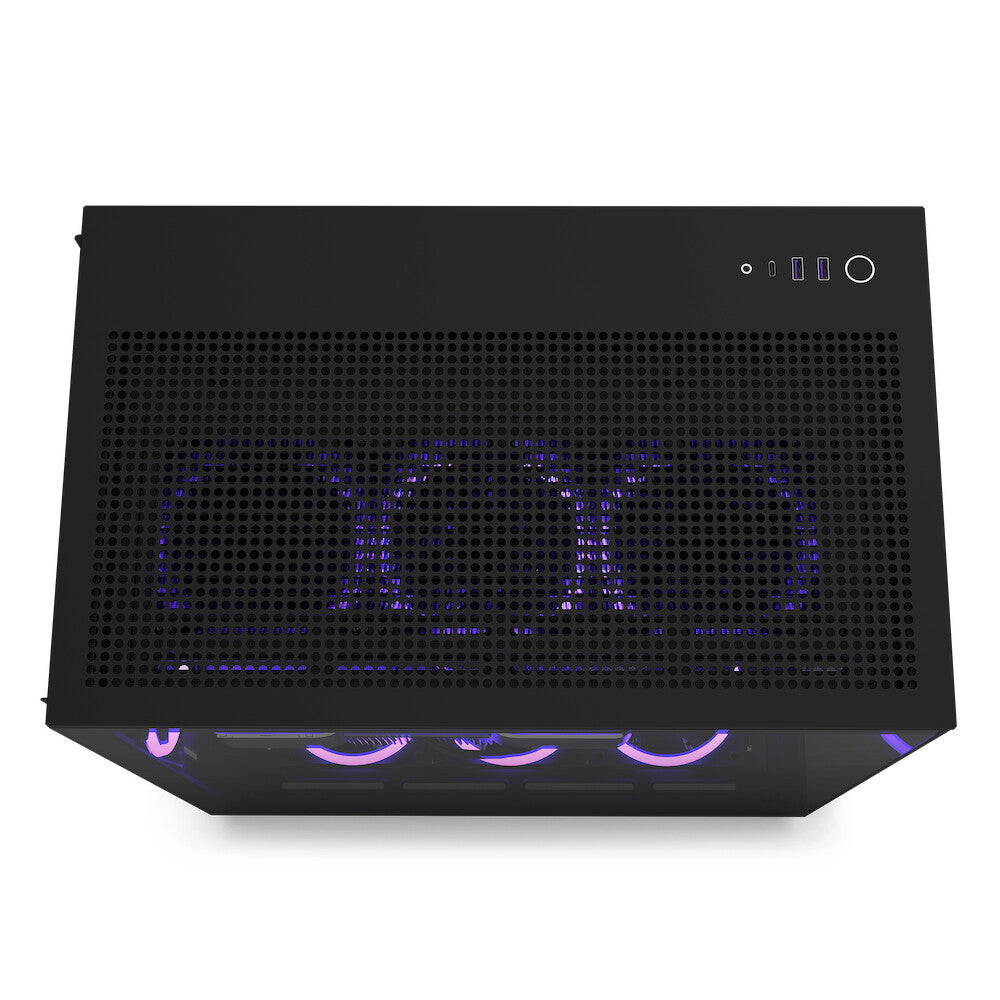

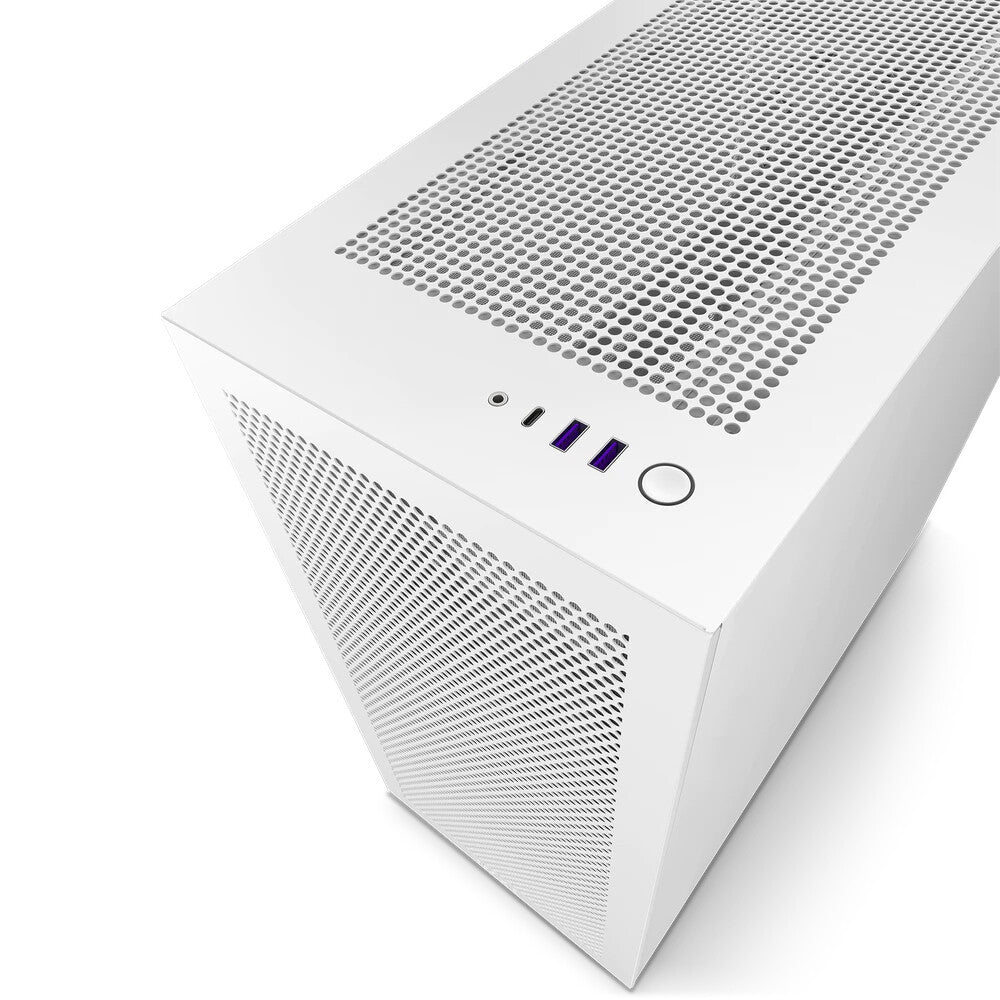

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

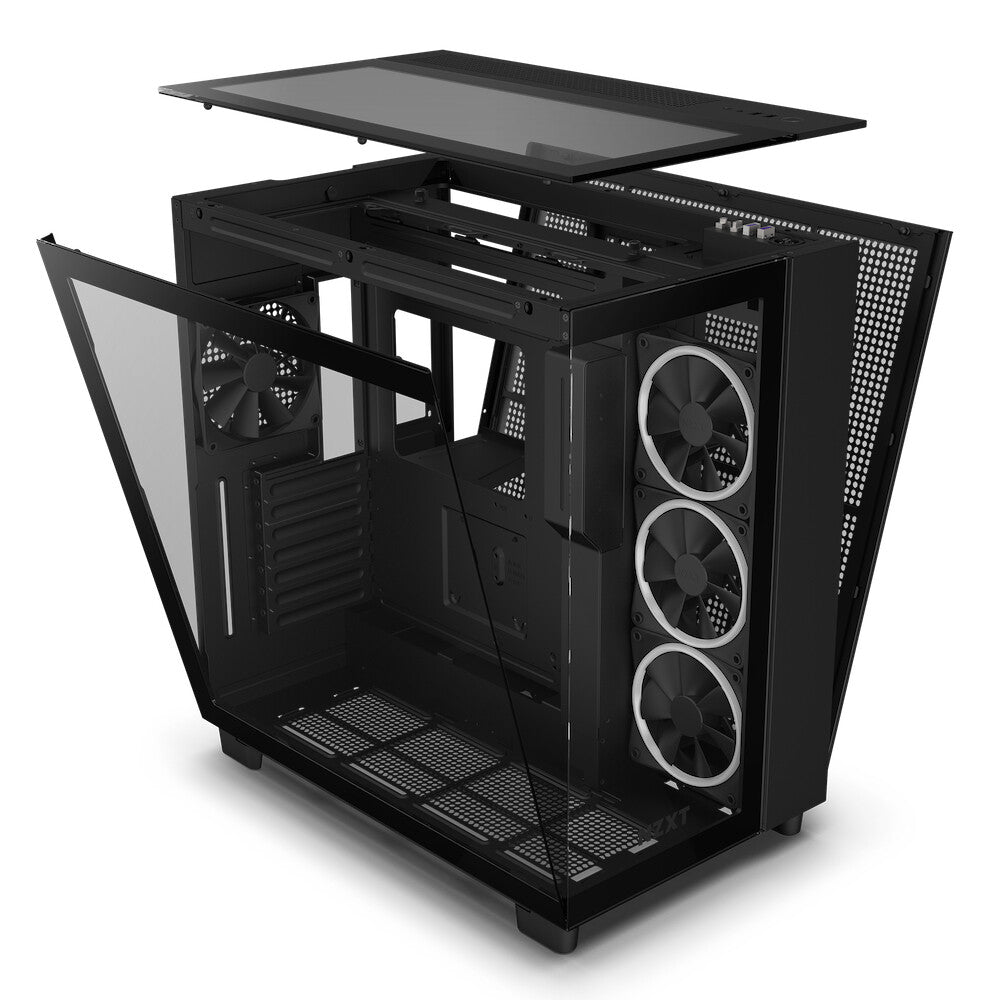

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 41 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360,420 mm |
| Fan speed | 1200 - 1500 RPM |
| Maximum airflow | 60.2 cfm |
| Fan 2 maximum airflow | 60.2 cfm |
| Maximum air pressure | 1.05 mmH2O |
| Fan 2 maximum air pressure | 1.05 mmH2O |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 544 mm |
| Depth | 468 mm |
| Width | 244 mm |
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 41 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360,420 mm |
| Fan speed | 1200 - 1500 RPM |
| Maximum airflow | 60.2 cfm |
| Fan 2 maximum airflow | 60.2 cfm |
| Maximum air pressure | 1.05 mmH2O |
| Fan 2 maximum air pressure | 1.05 mmH2O |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 544 mm |
| Depth | 468 mm |
| Width | 244 mm |

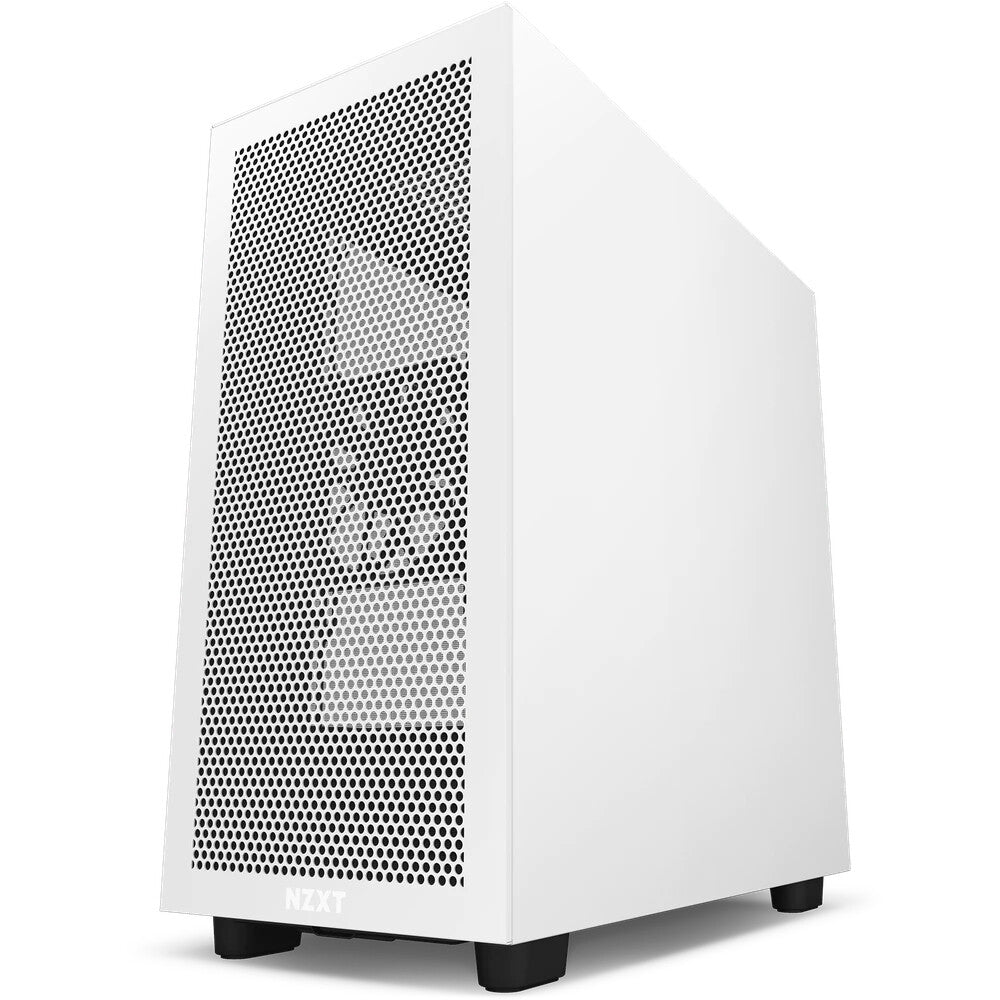

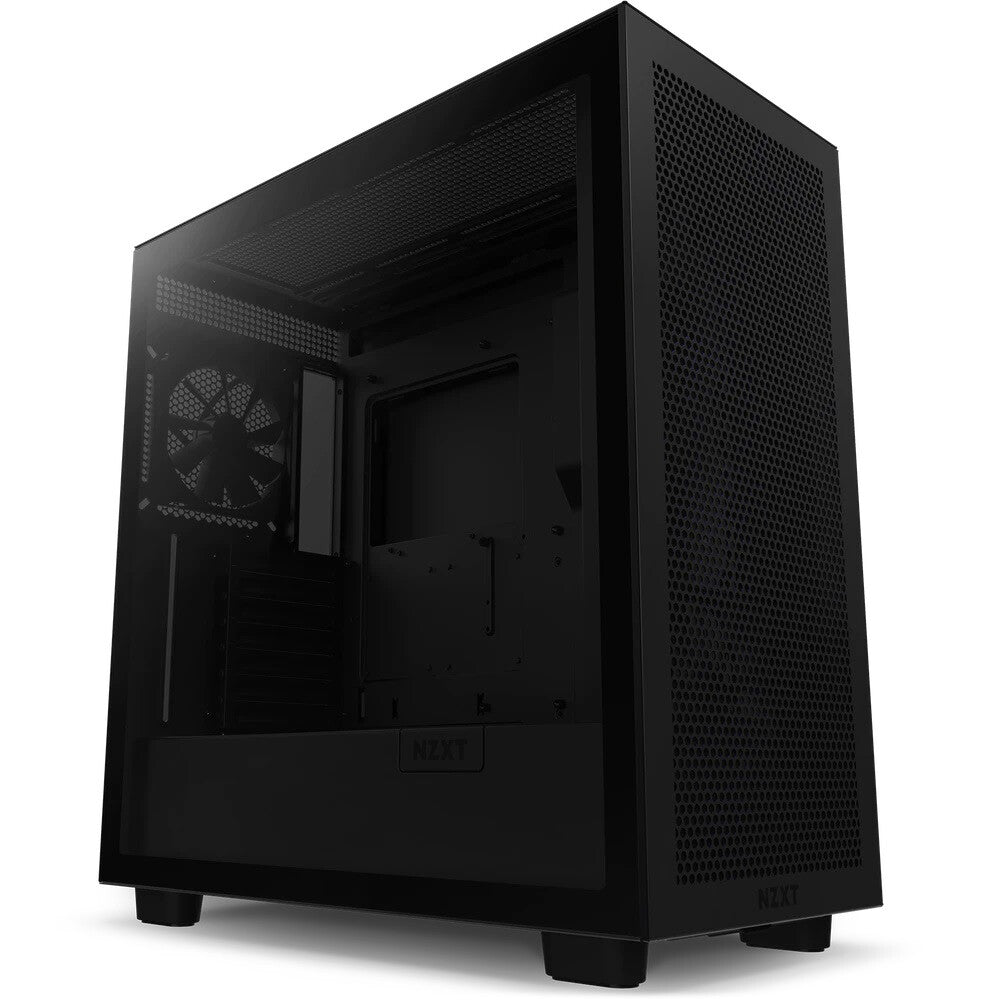

This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.
| Design | |
|---|---|
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360 mm |
| Fan speed | 960 - 1440 RPM |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 2x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Height | 505 mm |
| Depth | 480 mm |
| Width | 230 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.
| Design | |
|---|---|
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black, White |
| Material | Galvanized steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140 mm |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,140 mm |
| Fan speed | 960 - 1440 RPM |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 10.1 kg |
| Height | 505 mm |
| Depth | 480 mm |
| Width | 230 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.
| Design | |
|---|---|
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Galvanized steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140 mm |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,140 mm |
| Fan speed | 960 - 1440 RPM |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 10.1 kg |
| Height | 505 mm |
| Depth | 480 mm |
| Width | 230 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

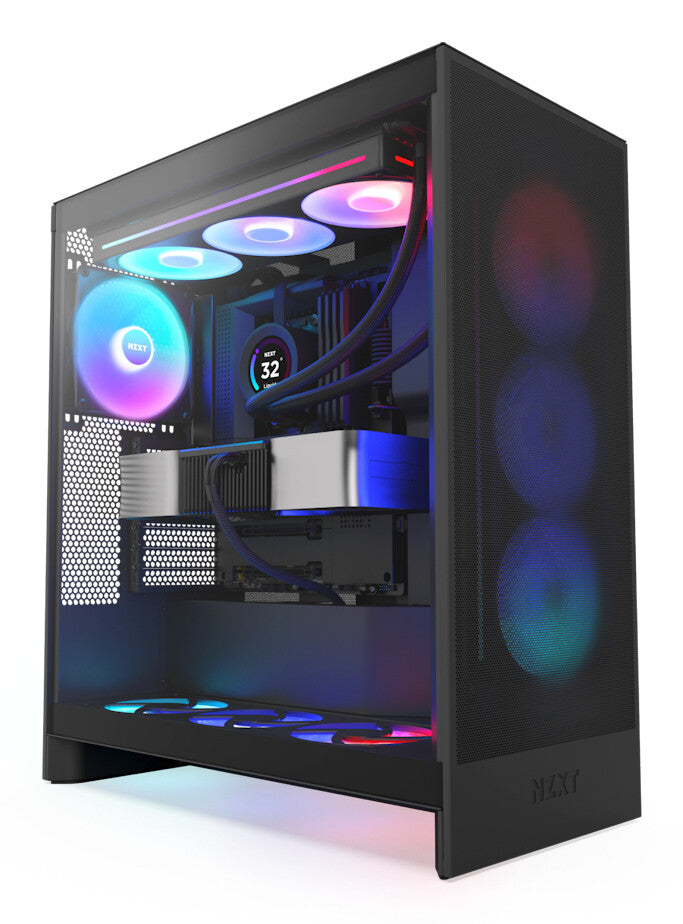

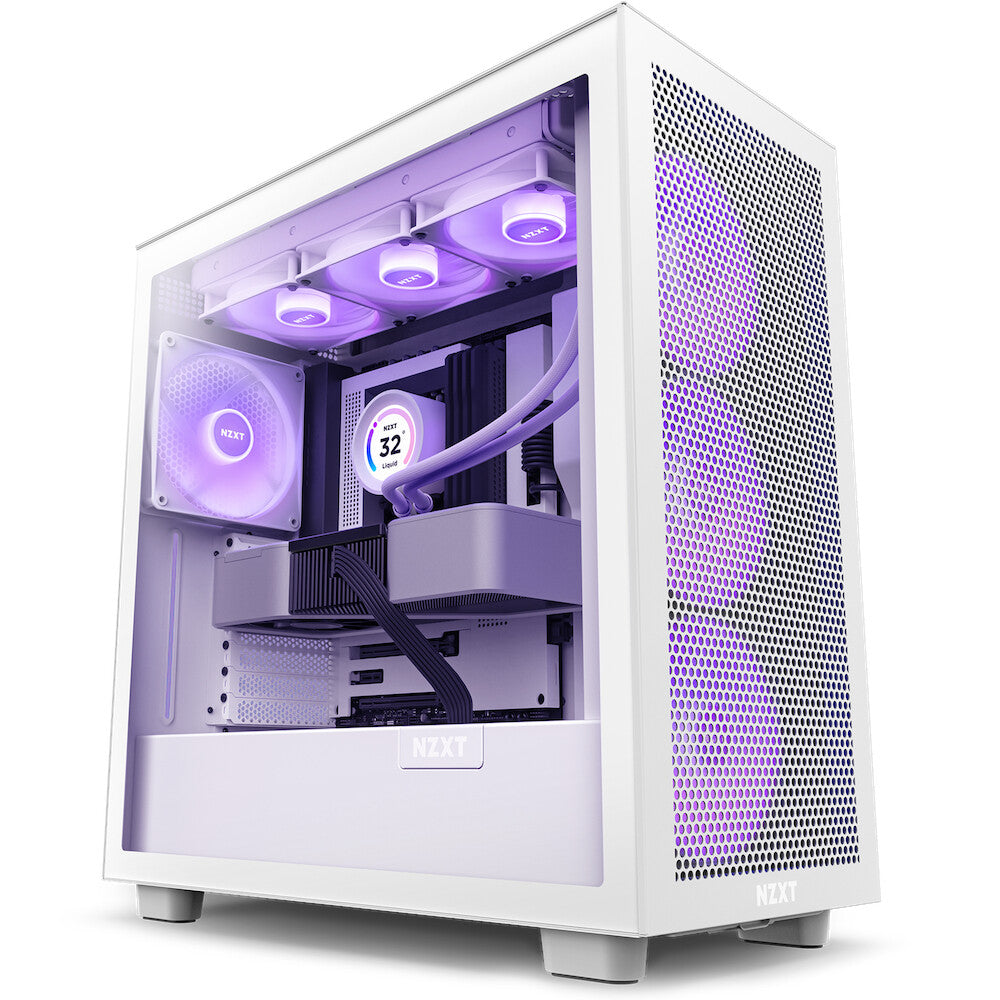

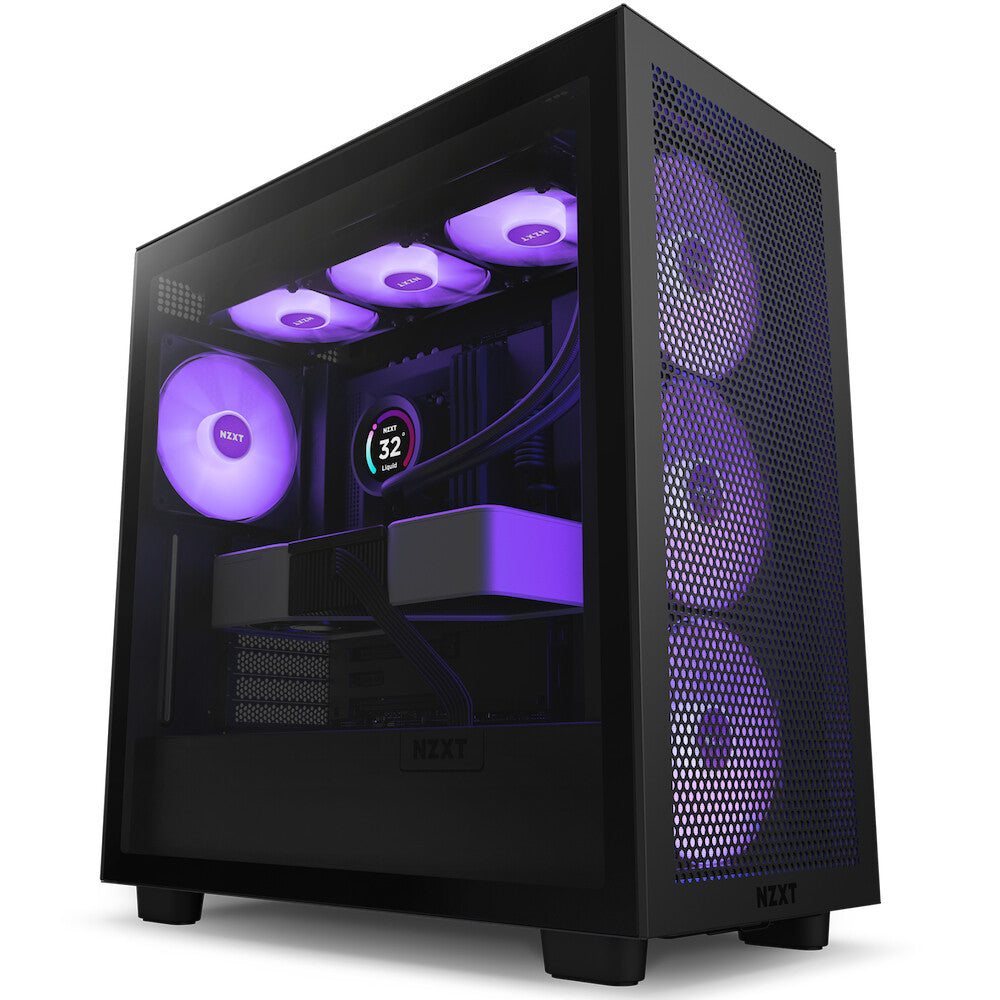

The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
| Design | |
|---|---|
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360 mm |
| Fan speed | 960 - 1440 RPM |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 2x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 10.5 kg |
| Height | 505 mm |
| Depth | 480 mm |
| Width | 230 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

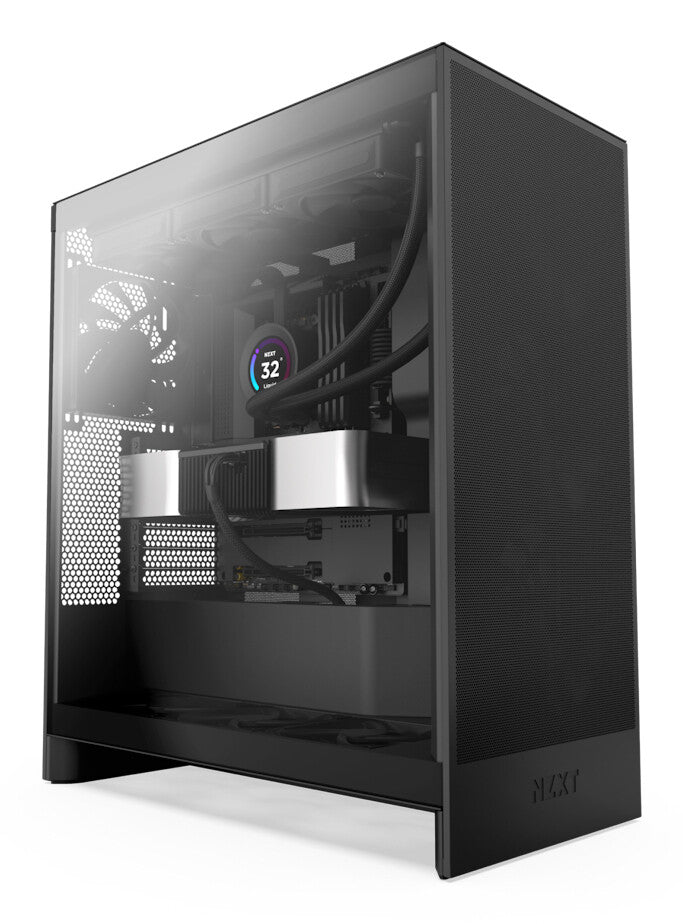

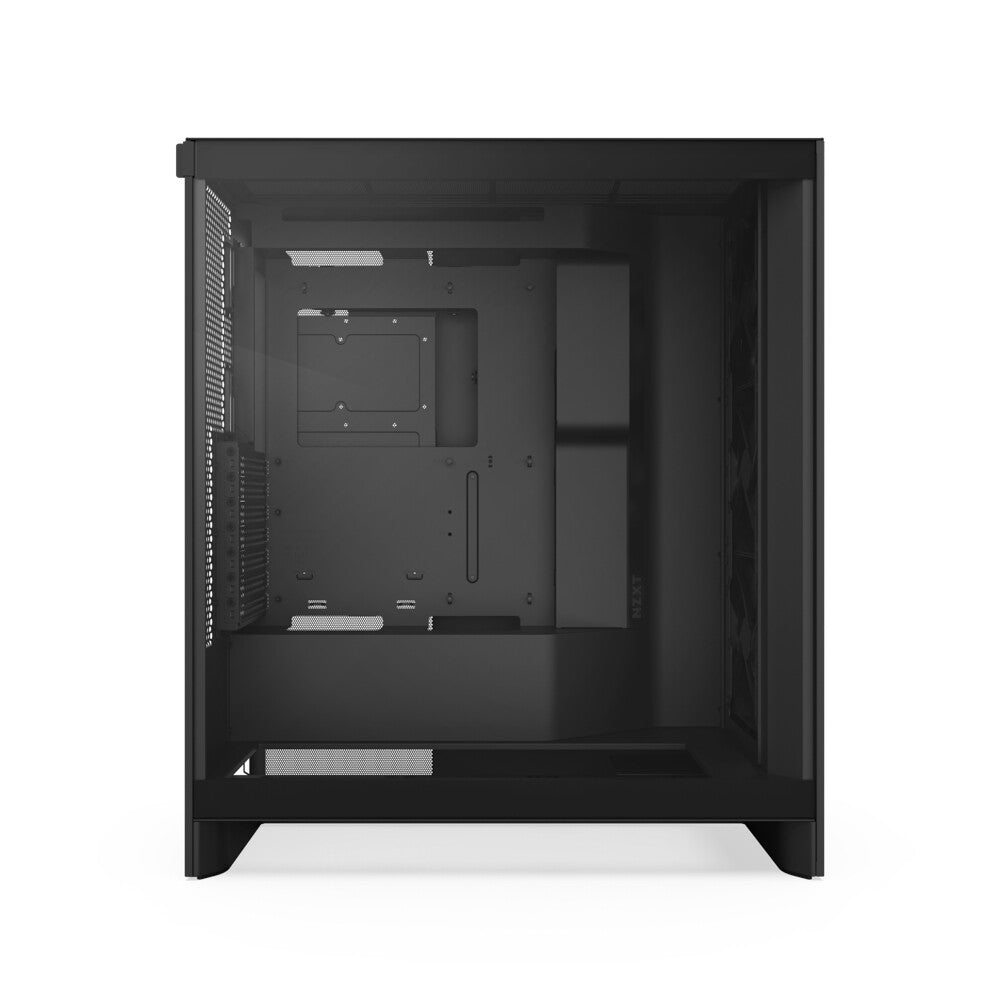

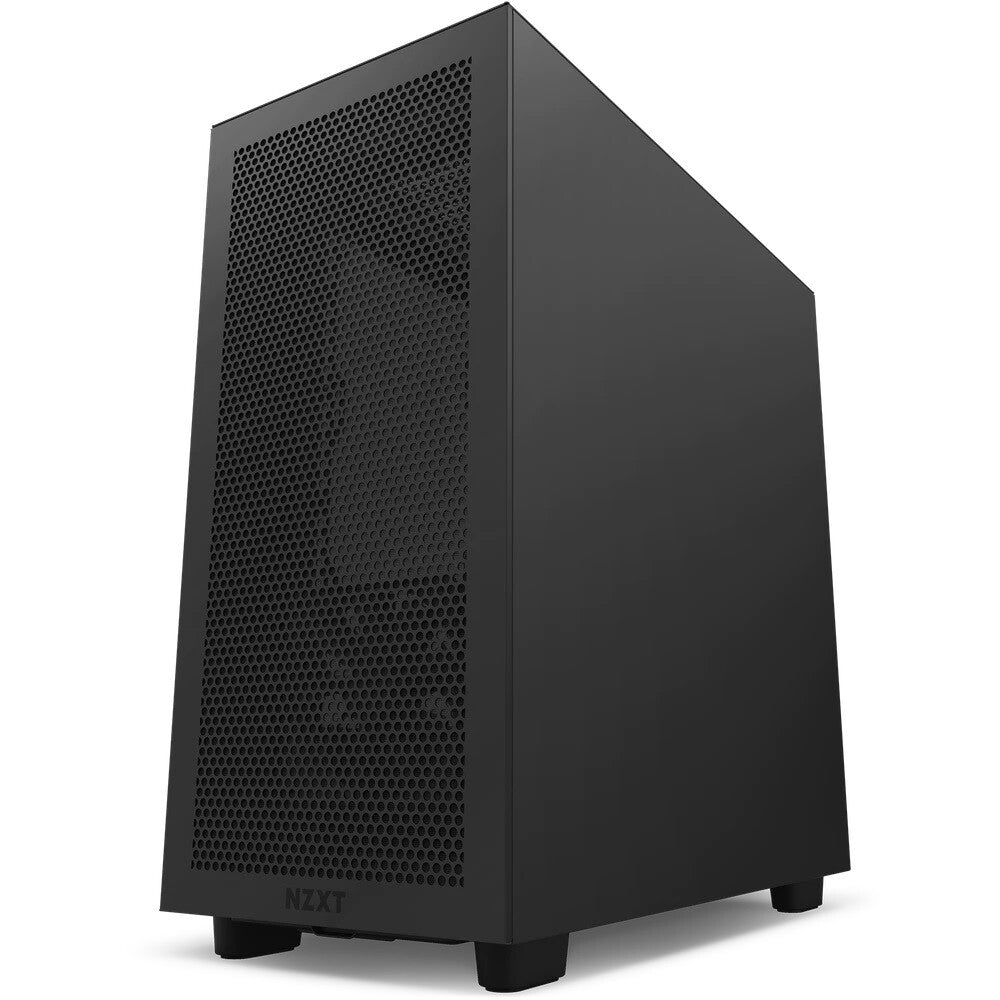

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 41 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Illumination | Yes |
| Side window | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360,420 mm |
| Fan speed | 1200 - 1500 RPM |
| Maximum airflow | 50.1 cfm |
| Fan 2 maximum airflow | 50.1 cfm |
| Maximum air pressure | 1.27 mmH2O |
| Fan 2 maximum air pressure | 1.27 mmH2O |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 544 mm |
| Depth | 468 mm |
| Width | 244 mm |

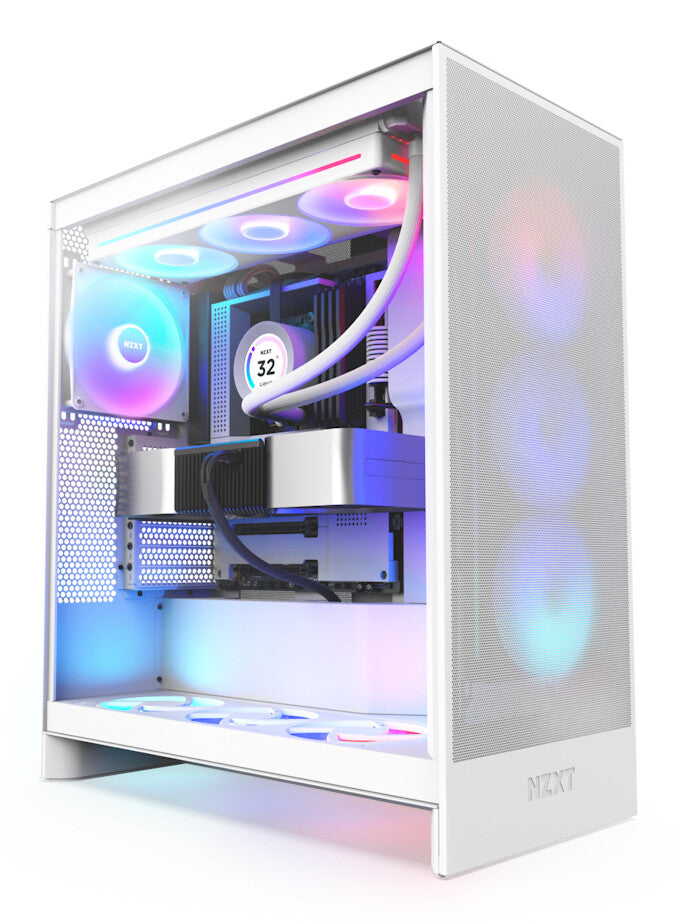

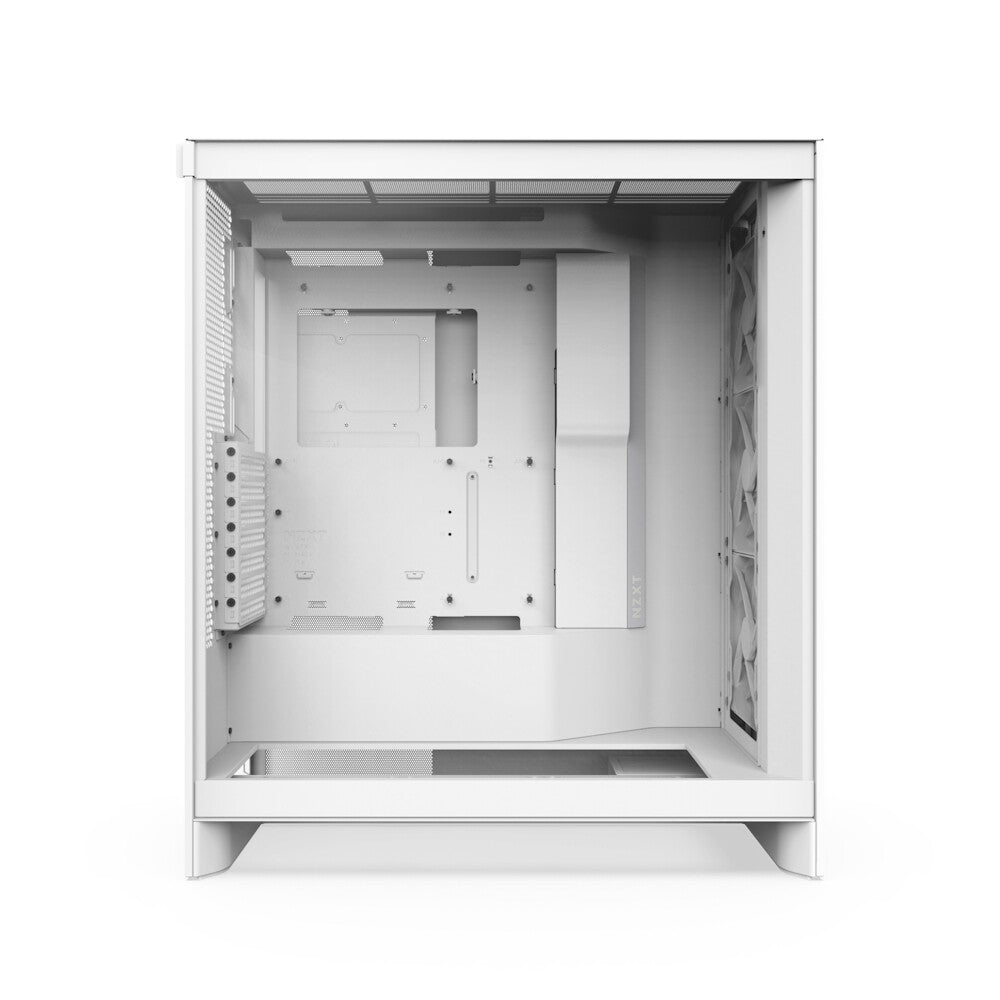

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 41 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Illumination | Yes |
| Side window | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360,420 mm |
| Fan speed | 1200 - 1500 RPM |
| Maximum airflow | 50.1 cfm |
| Fan 2 maximum airflow | 50.1 cfm |
| Maximum air pressure | 1.27 mmH2O |
| Fan 2 maximum air pressure | 1.27 mmH2O |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 544 mm |
| Depth | 468 mm |
| Width | 244 mm |

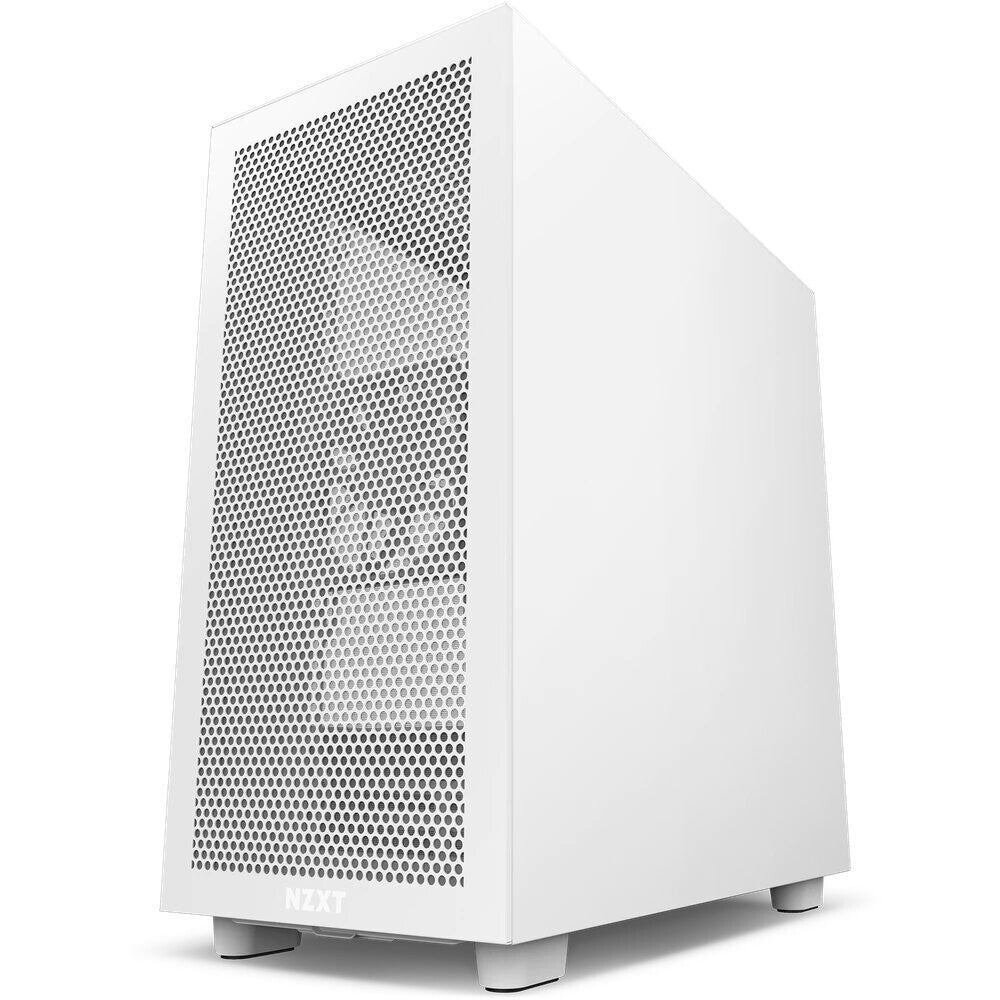

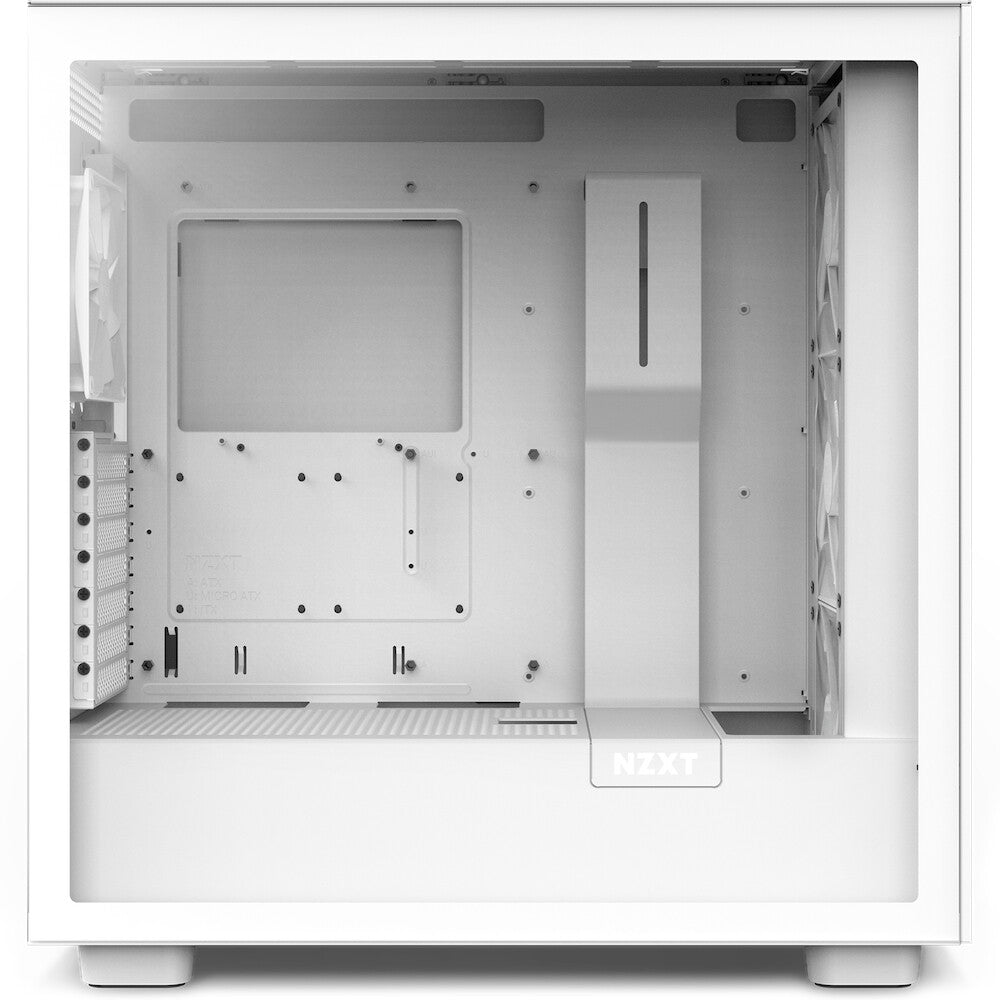

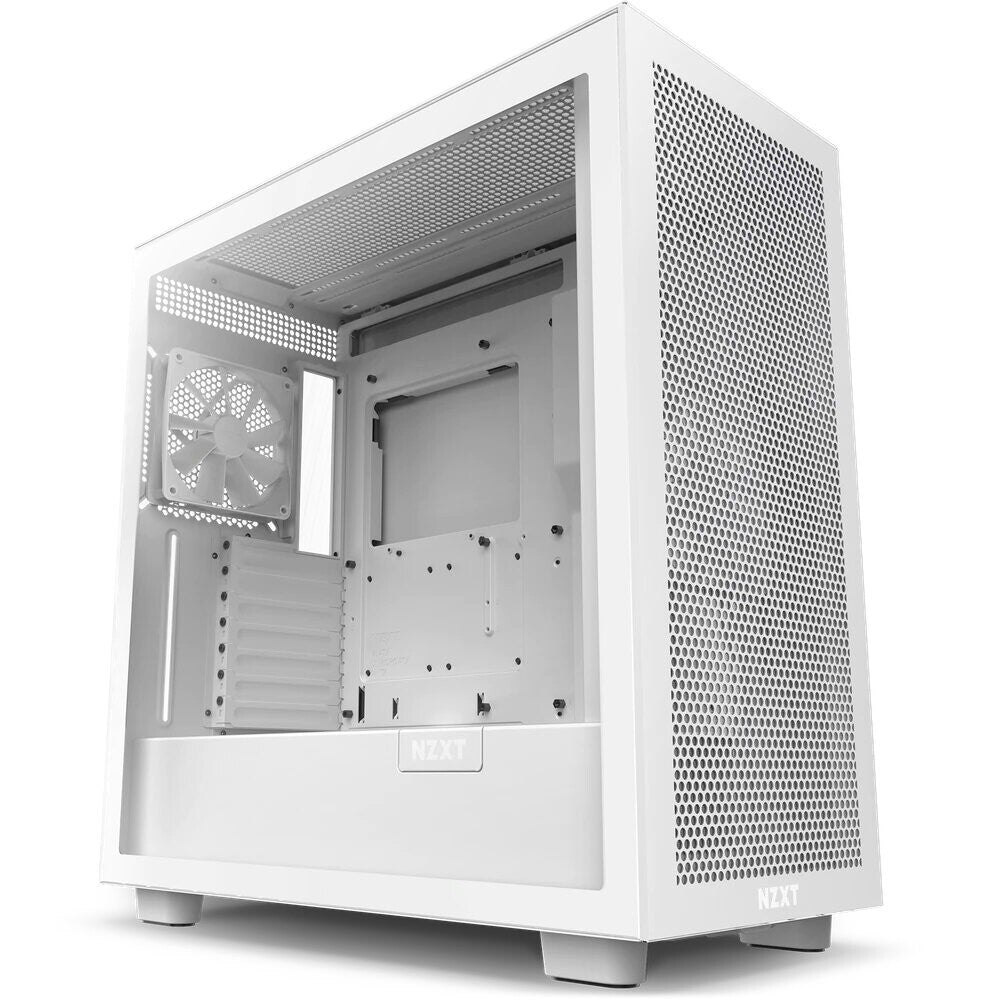

The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
High-Performance Airflow
Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.
Built-In RGB Lighting
Includes three pre-installed F140 RGB Core fans that connect to a standard 5V ARGB header.
Ready for Performance
Fits most NVIDIA GeForce RTX 40 Series graphics cards with its 365mm clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit.*
*Sold separately. Reduces clearance to 349mm.
Spacious Cooling Support
Up to 360mm radiator or 3 x 140mm fan support in the front and top panels.
Easily Route Cables
Wide cable channels with hooks, bridge and straps take the guesswork out of organized cable management.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Cyan, Green, Red |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Glass, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360 mm |
| Fan speed | 1080 - 1320 RPM |
| Maximum airflow | 61.74 cfm |
| Fan 2 maximum airflow | 62.18 cfm |
| Maximum air pressure | 2.06 mmH2O |
| Fan 2 maximum air pressure | 1.05 mmH2O |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 10.6 kg |
| Height | 505 mm |
| Depth | 480 mm |
| Width | 230 mm |

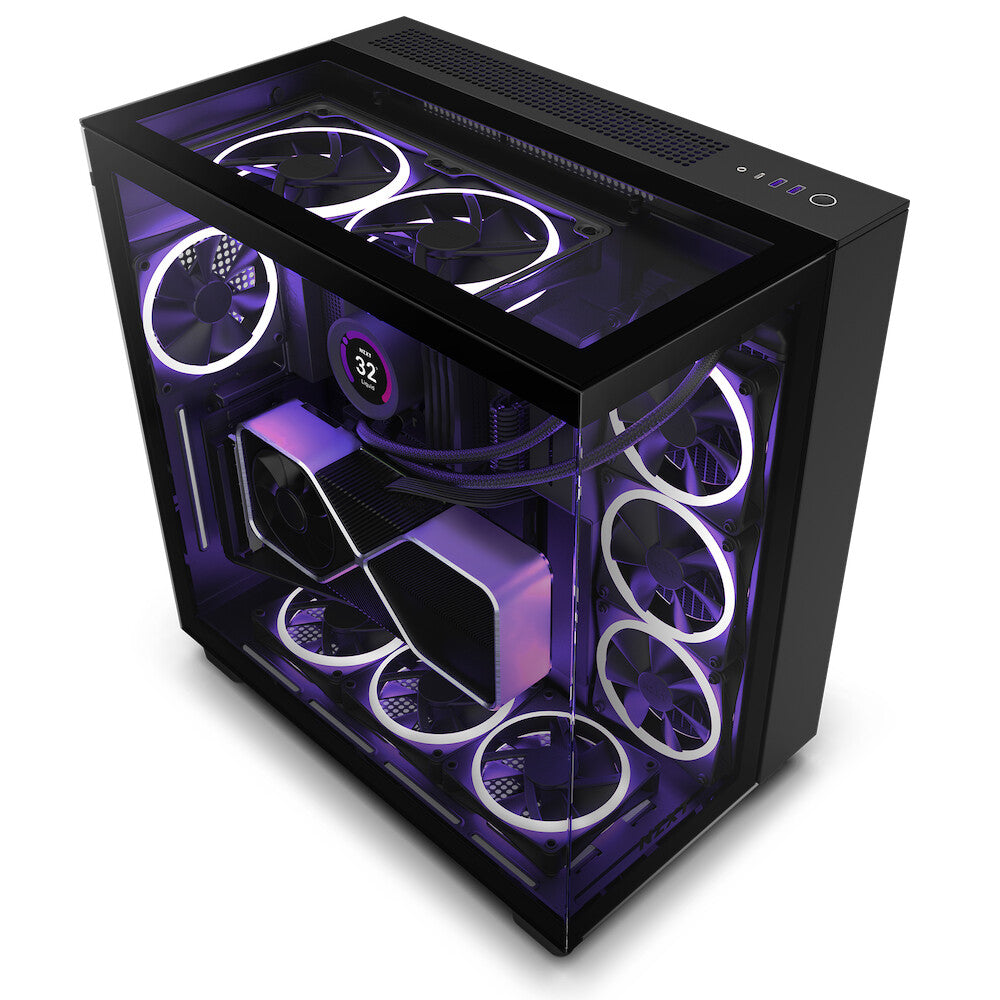

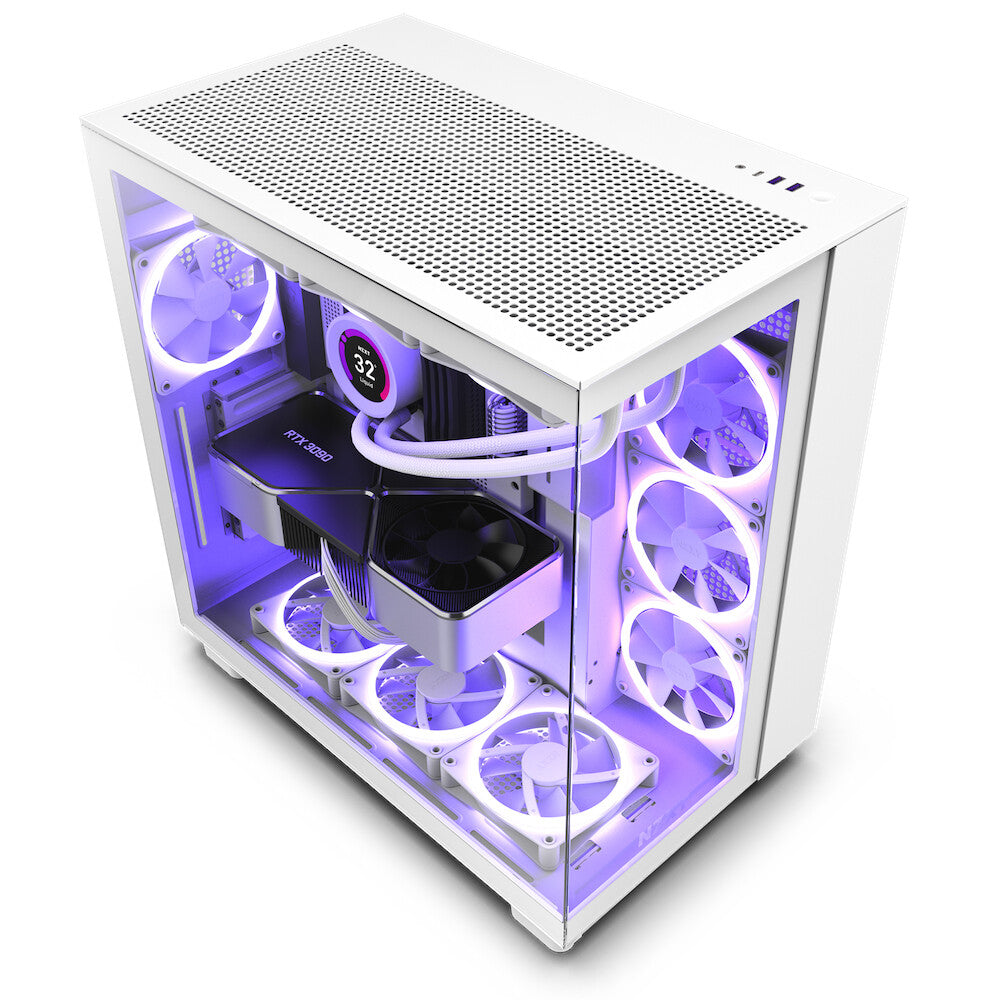

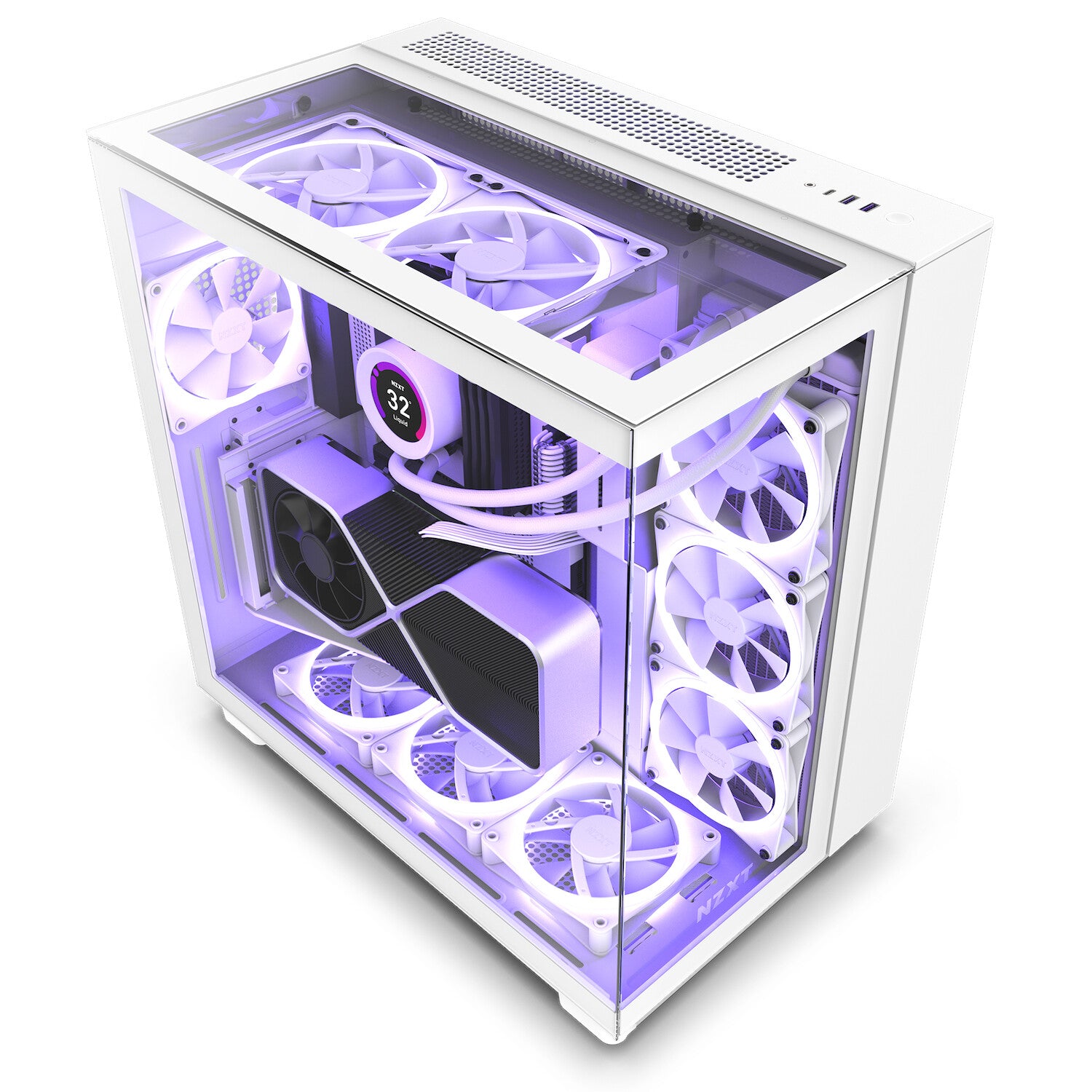

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
GPU Capacity
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
Fan Capacity
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
Radiator Capacity
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum CPU cooler height | 16.5 cm |
| Number of expansion slots | 7 |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 6 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Stainless steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120 mm |
| Side radiator sizes supported | 360 mm |
| Front radiator sizes supported | 360 mm |
| Fan speed | 500 - 1800 RPM |
| Maximum airflow | 62.18 cfm |
| Fan 2 maximum airflow | 48.58 cfm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 5 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 5 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 13.1 kg |
| Height | 495 mm |
| Depth | 466 mm |
| Width | 290 mm |
The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
GPU Capacity
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
Fan Capacity
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
Radiator Capacity
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum CPU cooler height | 16.5 cm |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 6 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Stainless steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120 mm |
| Side radiator sizes supported | 360 mm |
| Front radiator sizes supported | 360 mm |
| Fan speed | 500 - 1800 RPM |
| Maximum airflow | 62.18 cfm |
| Fan 2 maximum airflow | 48.58 cfm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 5 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 5 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 3 |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 13.1 kg |
| Height | 495 mm |
| Depth | 466 mm |
| Width | 290 mm |

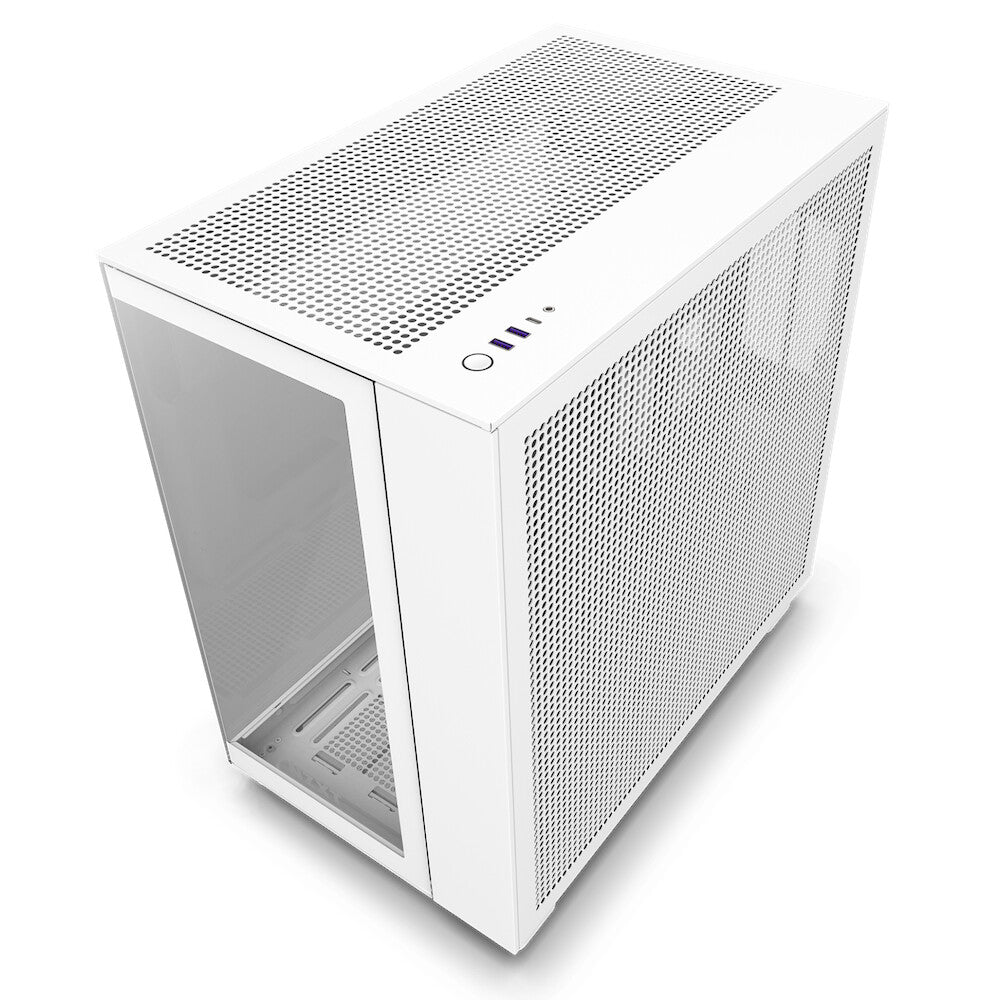

The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Perforated top panel for enhanced cooling
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes four F Series 120mm Quiet Airflow fans
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 43.5 cm |
| Maximum CPU cooler height | 16.5 cm |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination | Yes |
| Number of 2.5" bays | 6 |
| Number of 5.25" bays | 6 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120 mm |
| Side radiator sizes supported | 360 mm |
| Front radiator sizes supported | 360 mm |
| Maximum airflow | 62.18 cfm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 3 |
| Fan speed control | Yes |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 12.1 kg |
| Height | 495 mm |
| Depth | 466 mm |
| Width | 290 mm |
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Perforated top panel for enhanced cooling
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes four F Series 120mm Quiet Airflow fans
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 43.5 cm |
| Maximum CPU cooler height | 16.5 cm |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination | Yes |
| Number of 2.5" bays | 6 |
| Number of 5.25" bays | 6 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120 mm |
| Side radiator sizes supported | 360 mm |
| Front radiator sizes supported | 360 mm |
| Maximum airflow | 62.18 cfm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans installed | 3x 120 mm |
| Fan speed control | Yes |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 12.1 kg |
| Height | 495 mm |
| Depth | 466 mm |
| Width | 290 mm |
The Kraken 120 combines the look of an AIO cooling system with the function of a 120mm form factor set of fans, delivering coolant wherever you need it.
Individually customizable RGB lighting
Simple control via NZXT CAM
One 120mm Aer P radiator fan with chamfered intake and fluid dynamic bearings
Nylon mesh sleeves strengthens rubber tubing to protect from leaks
3 year warranty
Not compatible with Kraken G12
LGA 1700 Bracket Request Form
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed | 4200 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2000 RPM |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 36 dB |
| Fan noise level (min) | 21 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.93 mmH2O |
| Minimum air pressure | 0.18 mmH2O |
| Maximum airflow | 73.11 cfm |
| Minimum airflow (imperial) | 18.28 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 340 mA |
| Fan voltage | 12 V |
| Fan current | 0.32 A |
| Fan power consumption | 3.84 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Waterblock height | 4.3 cm |
| Waterblock depth | 6.6 cm |
| Waterblock width | 6.6 cm |
| Tube length | 40 cm |
| Radiator height | 3.2 cm |
| Radiator depth | 15.2 cm |
| Radiator width | 12 cm |
| Other features | |
|---|---|
| Country of origin | Taiwan |
| Tube material | Rubber |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
PERFORMANCE IN REAL TIME
Proudly display custom images and system specs in real time. The 1.54" diameter LCD display screen provides a clean image.
STAY COOL
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken stays cool and quiet at 2800 RPM
SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-READY
Personalize screen content with custom images or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Number of fan blades | 7 |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.09 kg |
| Package height | 249 mm |
| Package depth | 144 mm |
| Package width | 325 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Waterblock height | 5.95 cm |
| Waterblock depth | 8.19 cm |
| Waterblock width | 8.19 cm |
| Tube length | 40 cm |
| Radiator height | 12.3 cm |
| Radiator depth | 3 cm |
| Radiator width | 27.5 cm |
| Packaging content | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Tube material | Rubber |
Kraken 240 RGB
240mm AIO Liquid Cooler with LCD Display and RGB Fans
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Weight | 52.8 g |
| Height | 12.8 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 7.47 cm |
| Waterblock width | 7.47 cm |
| Depth | 53.2 mm |
| Tube length | 40 cm |
| Radiator height | 3 cm |
| Radiator depth | 27.5 cm |
| Radiator width | 12.3 cm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| RGB controller included | Yes |
| Cables included | SATA |
Kraken 240 RGB
240mm AIO Liquid Cooler with LCD Display and RGB Fans
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | White |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Weight | 52.8 g |
| Height | 12.8 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 7.47 cm |
| Waterblock width | 7.47 cm |
| Depth | 53.2 mm |
| Tube length | 40 cm |
| Radiator height | 3 cm |
| Radiator depth | 27.5 cm |
| Radiator width | 12.3 cm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| RGB controller included | Yes |
| Cables included | SATA |
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
PERFORMANCE IN REAL TIME
Proudly display custom images and system specs in real time. The 1.54" diameter LCD display screen provides a clean image.
STAY COOL
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken stays cool and quiet at 2800 RPM
SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-READY
Personalize screen content with custom images or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 32.1 dB |
| Fan noise level (min) | 19.4 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.75 mmH2O |
| Minimum air pressure | 0.91 mmH2O |
| Maximum airflow | 99.68 cfm |
| Minimum airflow (imperial) | 33.22 cfm |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 14 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Number of fan blades | 7 |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.28 A |
| Fan power consumption | 3.36 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.42 kg |
| Package height | 209 mm |
| Package depth | 158 mm |
| Package width | 430 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
| Waterblock height | 5.95 cm |
| Waterblock depth | 8.19 cm |
| Waterblock width | 8.19 cm |
| Tube length | 40 cm |
| Radiator height | 14.3 cm |
| Radiator depth | 3 cm |
| Radiator width | 31.5 cm |
| Packaging content | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Tube material | Rubber |
Kraken 280 RGB
280mm AIO Liquid Cooler with LCD Display and RGB Fans
Get high-performance cooling and display a favorite image or GIF, monitor real-time PC performance metrics, and more with NZXT CAM software.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 34.48 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.22 mmH2O |
| Maximum airflow | 90.79 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), Socket TR4, LGA 1151 (Socket H4), Socket AM4, LGA 1155 (Socket H2), Socket AM5, LGA 1156 (Socket H), Socket sTRX4, LGA 1200 (Socket H5), LGA 1700 |
| Fan diameter | 14 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.24 A |
| Fan power consumption | 2.88 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
| Weight | 52.8 g |
| Height | 12.8 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 7.47 cm |
| Waterblock width | 7.47 cm |
| Depth | 53.2 mm |
| Tube length | 40 cm |
| Radiator height | 3 cm |
| Radiator depth | 31.5 cm |
| Radiator width | 14.3 cm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| RGB controller included | Yes |
| Cables included | SATA |
Kraken 280 RGB
280mm AIO Liquid Cooler with LCD Display and RGB Fans
Get high-performance cooling and display a favorite image or GIF, monitor real-time PC performance metrics, and more with NZXT CAM software.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 34.48 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.22 mmH2O |
| Maximum airflow | 90.79 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 14 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | White |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.24 A |
| Fan power consumption | 2.88 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
| Weight | 52.8 g |
| Height | 12.8 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 7.47 cm |
| Waterblock width | 7.47 cm |
| Depth | 53.2 mm |
| Tube length | 40 cm |
| Radiator height | 3 cm |
| Radiator depth | 31.5 cm |
| Radiator width | 14.3 cm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| RGB controller included | Yes |
| Cables included | SATA |
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
PERFORMANCE IN REAL TIME
Proudly display custom images and system specs in real time. The 1.54" diameter LCD display screen provides a clean image.
STAY COOL
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken stays cool and quiet at 2800 RPM
SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-READY
Personalize screen content with custom images or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, AMD Ryzen™ 3, Intel® Pentium®, AMD Ryzen™ 5, Intel® Celeron® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Fan connector | 4-pin |
| Number of fan blades | 7 |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.46 kg |
| Package height | 189 mm |
| Package depth | 148 mm |
| Package width | 495 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Waterblock height | 5.95 cm |
| Waterblock depth | 8.19 cm |
| Waterblock width | 8.19 cm |
| Tube length | 40 cm |
| Radiator height | 12.1 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 39.4 cm |
| Packaging content | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Tube material | Rubber |
Kraken 360 RGB
360mm AIO Liquid Cooler with LCD Display and RGB Fans
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Weight | 52.8 g |
| Height | 12.8 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 7.47 cm |
| Waterblock width | 7.47 cm |
| Depth | 53.2 mm |
| Tube length | 40 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 39.4 cm |
| Radiator width | 12.1 cm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| RGB controller included | Yes |
| Cables included | SATA |
Kraken 360 RGB
360mm AIO Liquid Cooler with LCD Display and RGB Fans
The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 39.1 x 39.1 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | White |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Weight | 52.8 g |
| Height | 12.8 mm |
| Waterblock height | 5.6 cm |
| Waterblock depth | 7.47 cm |
| Waterblock width | 7.47 cm |
| Depth | 53.2 mm |
| Tube length | 40 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 39.4 cm |
| Radiator width | 12.1 cm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
The Kraken Elite delivers chillingly cool performance with a display that makes custom content truly pop. The 640x640 resolution wide-angle LCD display creates a picture that's detailed and vivid regardless of your viewing angle.
INCREASED CUSTOMIZATION
A more powerful microcontroller allows for more immersive customization such as audio visualizers and the ability to relay CAM information with particle density animations.
TWICE AS BRIGHT
A bright 2.36" wide angle LCD screen supports custom images along with animated GIFs and features a crystal clear 640x640 display resolution, double that of previous generations.
STAY COOL
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken Elite cools optimally with 2800 RPM operation.
SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-READY
Personalize screen content with custom images, GIF, or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 30.6 dB |
| Fan noise level (min) | 17.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 78.02 cfm |
| Minimum airflow (imperial) | 21.67 cfm |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Display size (HxV) | 60 x 60 mm |
| Display type | TFT-LCD |
| Water block material | Copper/Plastic |
| Fan connector | 4-pin |
| Number of fan blades | 7 |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Pump current | 300 mA |
| Fan voltage | 12 V |
| Fan current | 0.23 A |
| Fan power consumption | 2.76 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.01 kg |
| Package height | 244 mm |
| Package depth | 141 mm |
| Package width | 327 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Weight | 1.31 kg |
| Waterblock height | 5.95 cm |
| Waterblock depth | 8.19 cm |
| Waterblock width | 8.19 cm |
| Tube length | 40 cm |
| Radiator height | 12.3 cm |
| Radiator depth | 3 cm |
| Radiator width | 27.5 cm |
| Packaging content | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Tube material | Rubber |
